Limited Access Digital Tension Meters for fine wire and fibers with max tension range of 500 g / cN

---

Memory, Data Output, USB, Wifi

---

Auto Rotating Display

---

5 Ranges
0.3 - 100.0 grams (or cN)
2.0 - 200.0 grams (or cN)
2.0 - 500.0 grams (or cN)
3 - 1000 grams (or cN)
3 - 2000 grams (or cN)
For fibers up to 500 tex and Cu wire Ø 0.17 mm

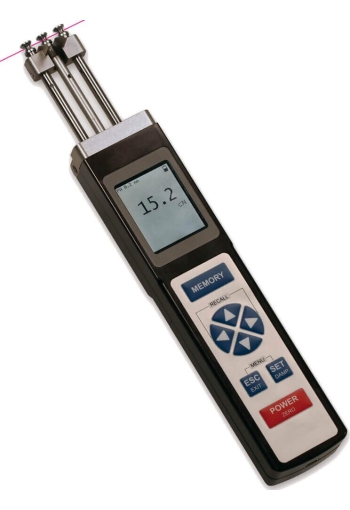

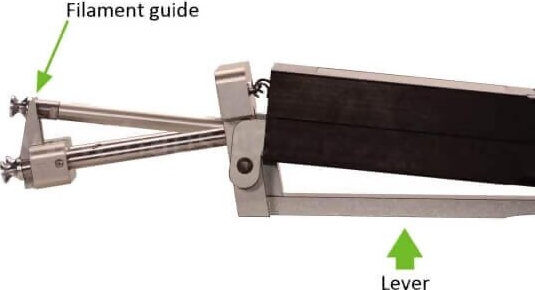

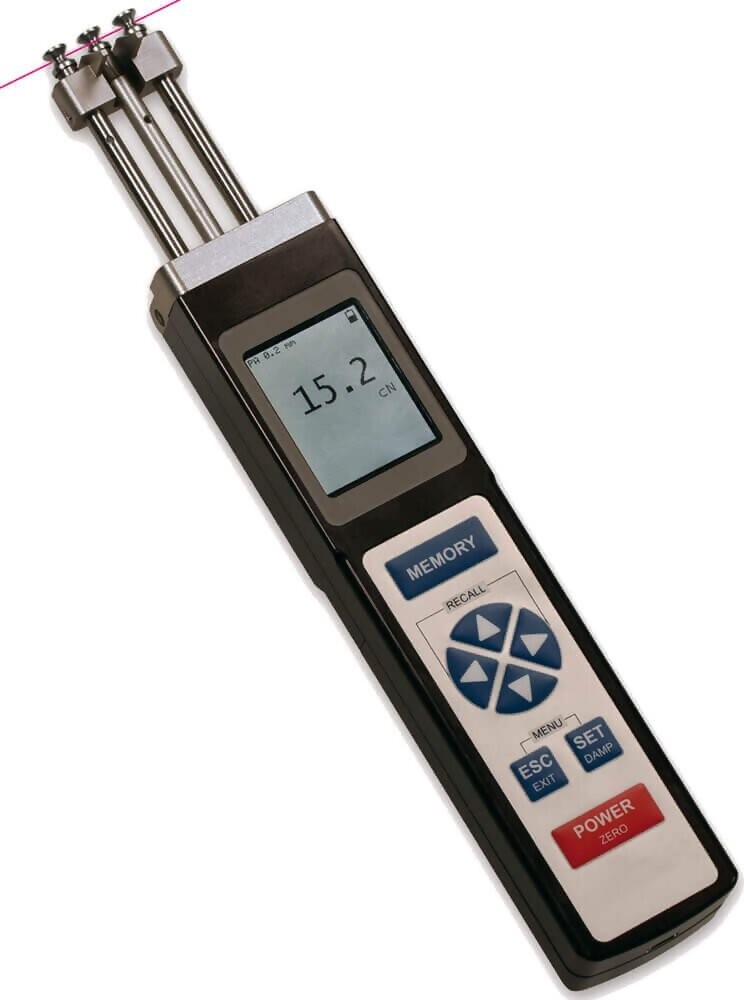

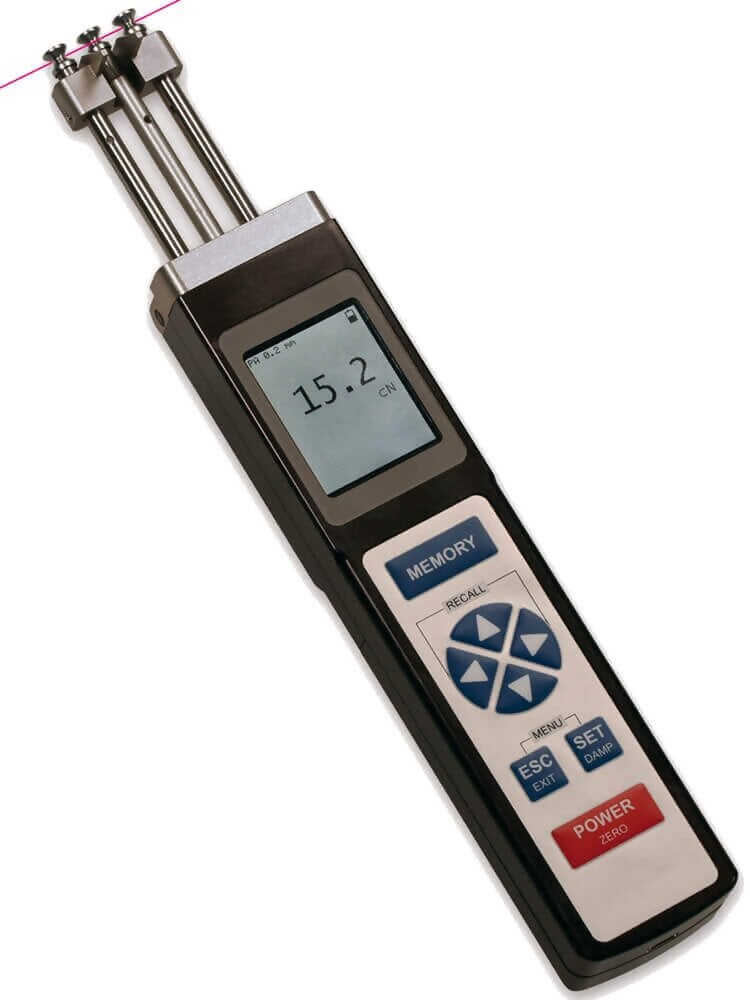

The Hans-Schmidt ETB - ETPB Limited Access Digital Tension Meter is designed for accurate measurement of tension on fine wires, yarns and fibers. Rollers or Ceramic Pins are mounted at the end of long "fingers" permitting the user to measure tension with limited access space or when several lines are closely spaced such as on a warp sheet. Five (5) measuring ranges are available with a maximum capacity of 2000 grams or cN.

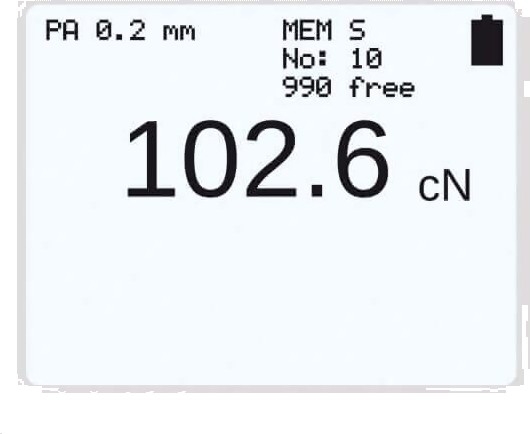

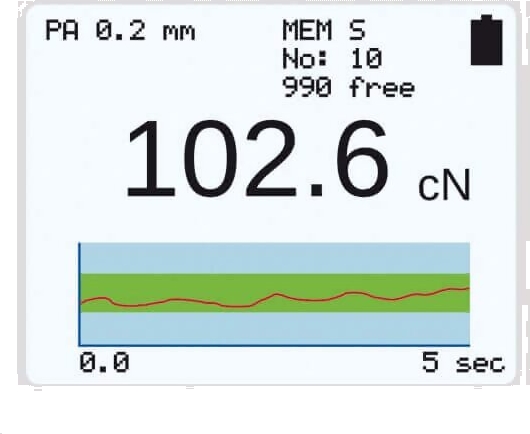

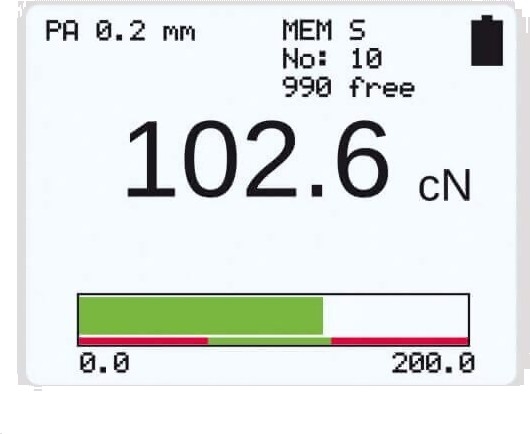

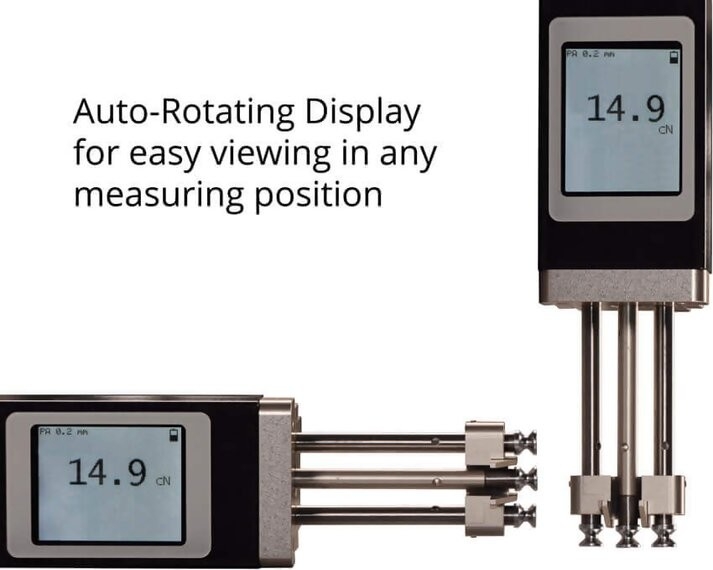

New features include Color, backlight TFT-display with 3 different displays modes: numeric, numeric with live bargraph, numeric with graph (time vs tension). The display auto rotates in 90° steps for optimal visibility regardless of the position of the tension meter.

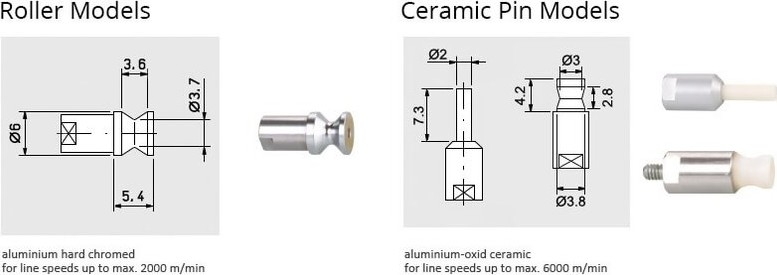

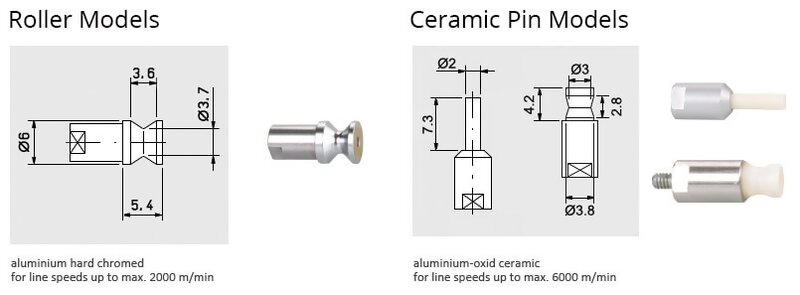

ETB models feature miniature high speed ball-bearing-mounted rollers for material speeds up to 2000 m/min

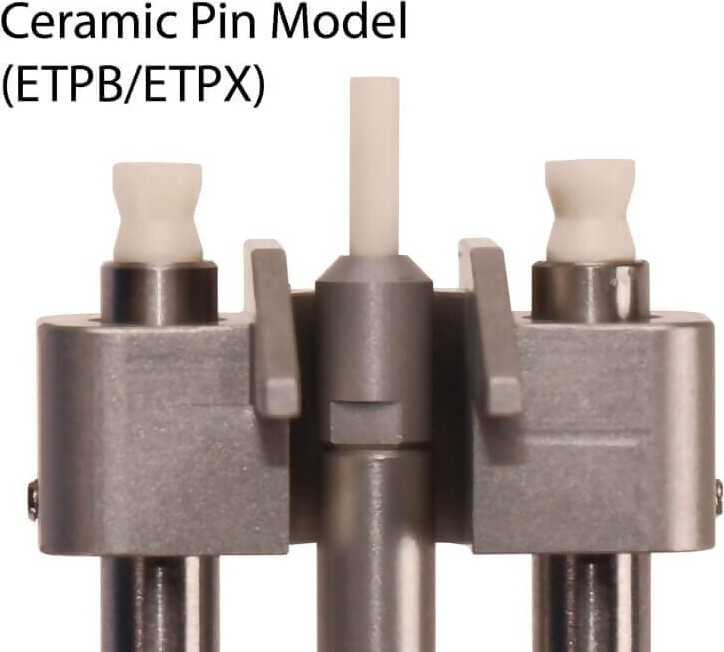

ETPB models feature non-rotating ceramic pins for material speeds up to 6000 m/min

Kit Contents

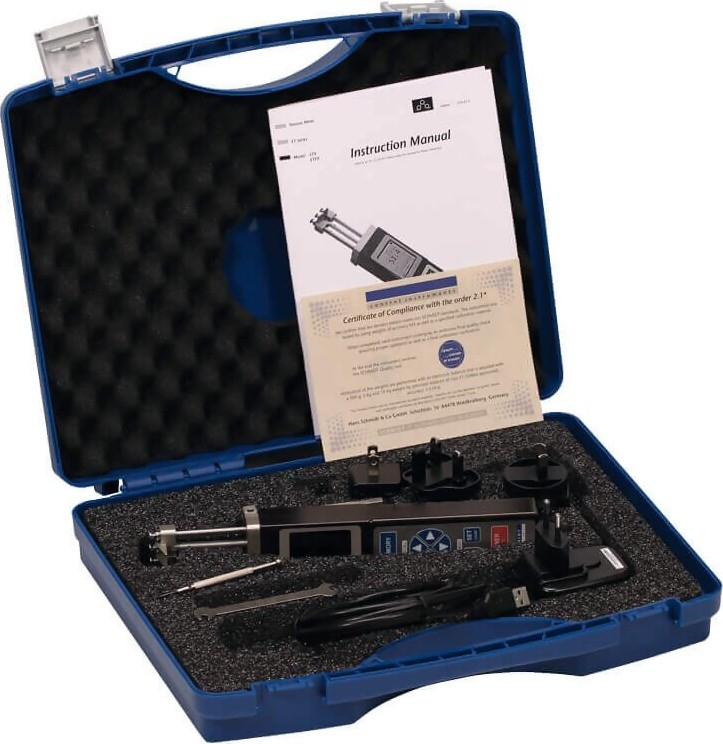

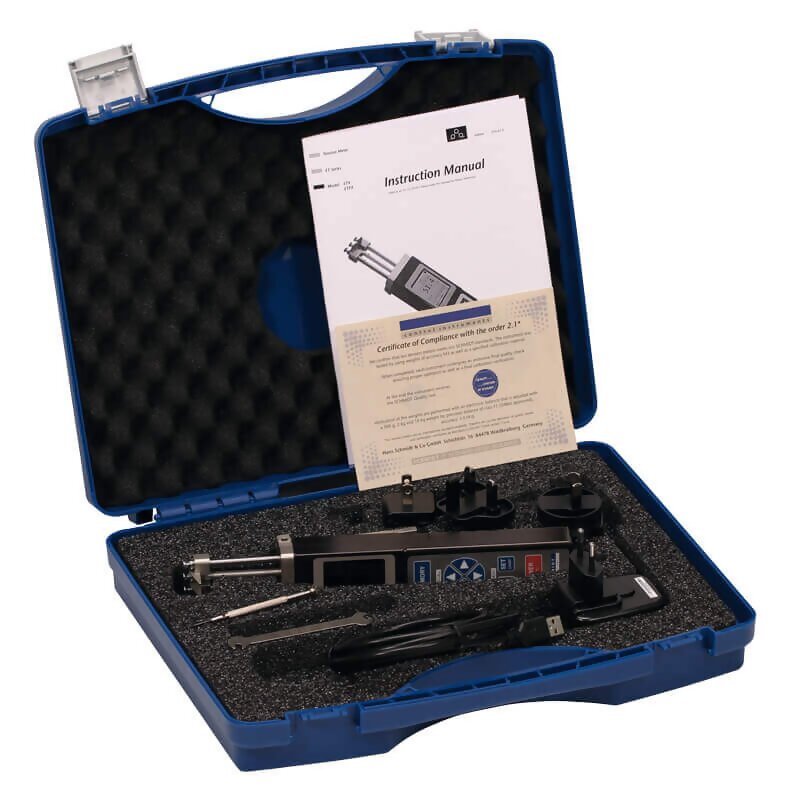

Hans-Schmidt ETB - ETPB Limited Access Digital Tension Meter Built-in Rechargeable Battery USB/AC adapter with country adapters (EU, US, UK, AUS/NZ) Carrying Case

Features

• Coloured, backlight TFT-display with 3 different displays modes: numeric, numeric with live bargraph, numeric with graph (time vs tension)
• The display auto rotates in 90° steps for better reading
• Automatic Zero-Setting in each measuring position
• Selectable units of measure; Grams, cN, N and Lbs
• High data sampling rate to catch short duration peaks (1 kHz)
• Storage of MIN, MAX, last, average and standard deviation per measuring interval
• User-set MIN and MAX alarms with indication on TFT display if reading is out of limits
• Adjustable electronic damping for better reading when tension fluctuates
• 3 separate calibration material memory locations for custom calibrations
• User adjustment for fine tuning of the calibration if material differs from the used calibration material
• NIST-Traceable Calibration Certification in optionally available
• 1000g and 2000g models are fitted with 7.4mm diameter v-grooved rollers fabricated from hardcoat anodized aluminum

Specifications

Calibration	According factory procedure
Accuracy	±1% FS* ±1 Digit (typical ±0.5 % FS*)
Memory for material calibration	1 for factory calibration plus 3 for customized calibrations
Measuring units	Grams cN, N, and Lbs
Resolution	0.1 grams or cN
Overrange	Approx. 10%, full scale, without accuracy guarantee
Overload protection	200% Full Scale
Measuring principle	Strain gauge bridge
Measuring roller deflection	0.5 mm, maximum
Sampling rate	200 Hz: AVG, MIN, MAX (1kHz for PEAK)
Display update rate	Approx. 2 times per second
LCD Display	Color-TFT 128 x 160
Display Modes	Numeric, Numeric with Bargraph, X-Y Trendgraph (time vs. tension)
Memory	MIN, MAX, PEAK, AVG and LAST
Damping	Adjustable electronic damping (averaging)
Cal. Adjustment	±10 steps in 1% increments
Auto power off	After approx. 3 minutes of non-use
Temperature coefficient	Gain: less than ± 0.01% FS* /°C
Temperature range	50 – 113 °F (10 – 45 °C)
Air humidity	85% RH, max.
Built-in Battery	Lithium Polymer
Battery Life	20 hours continuous use (approx.)
Recharging Time	3-1/2 hours (approx.)
Battery Charger	100-240V AC, swappable plug adapters
Plug Adapters	USA, Euro and UK
Housing material	Aluminium

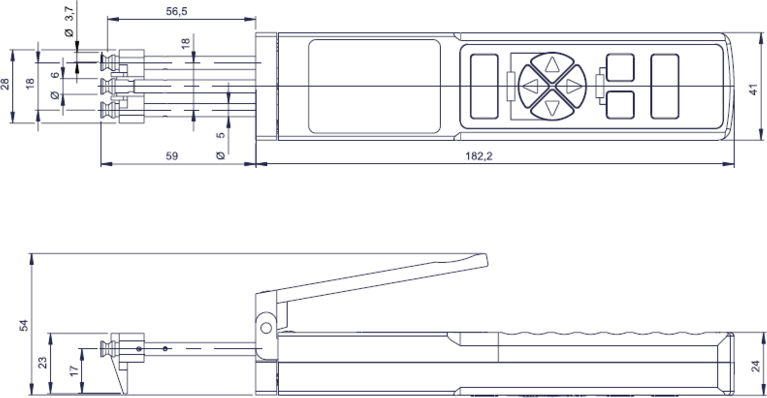

Housing dimensions (L x W x H)	13" x 1-3/4" x 1" (330 x 45 x 25mm)
Weight, net /gross	Approx. 12 oz. (310 g) / 2.75 lbs (1220 g)
Charger Part#	USB-MINI-CHARGER

Ranges

Model	Measuring Range (g or cN)	Resolution (g or cN)	Rollers or Pins	Max Material Speed	Measuring Head Width	Calibration Material
ETB-100	0.3 - 100.0	0.1	3.7mm Rollers	2000 meters / min	24 mm	0.20 mm PA
ETB-200	2.0 - 200.0	0.1	3.7mm Rollers	2000 meters / min	24 mm	0.20 mm PA
ETB-500	2.0 - 500.0	0.1	3.7mm Rollers	2000 meters / min	24 mm	0.20 mm PA
ETB-1000	3 - 1000	1	7.4mm Rollers	2000 meters / min	38 mm	0.50 mm PA
ETB-2000	3 - 2000	1	7.4mm Rollers	2000 meters / min	38 mm	0.50 mm PA
ETPB-100	0.3 - 100.0	0.1	Ceramic Pins	6000 meters / min	24 mm	0.20 mm PA
ETPB-200	2.0 - 200.0	0.1	Ceramic Pins	6000 meters / min	24 mm	0.20 mm PA
ETPB-500	2.0 - 500.0	0.1	Ceramic Pins	6000 meters / min	24 mm	0.20 mm PA

Downloads

Hans-Schmidt ETB - ETPB Limited Access Digital Tension Meter - Data Sheet

Hans-Schmidt ETB - ETPB Limited Access Digital Tension Meter - Instruction Manual
