Operated by lifting device - self closing

---

Dial Resolution 0.01 mm

---

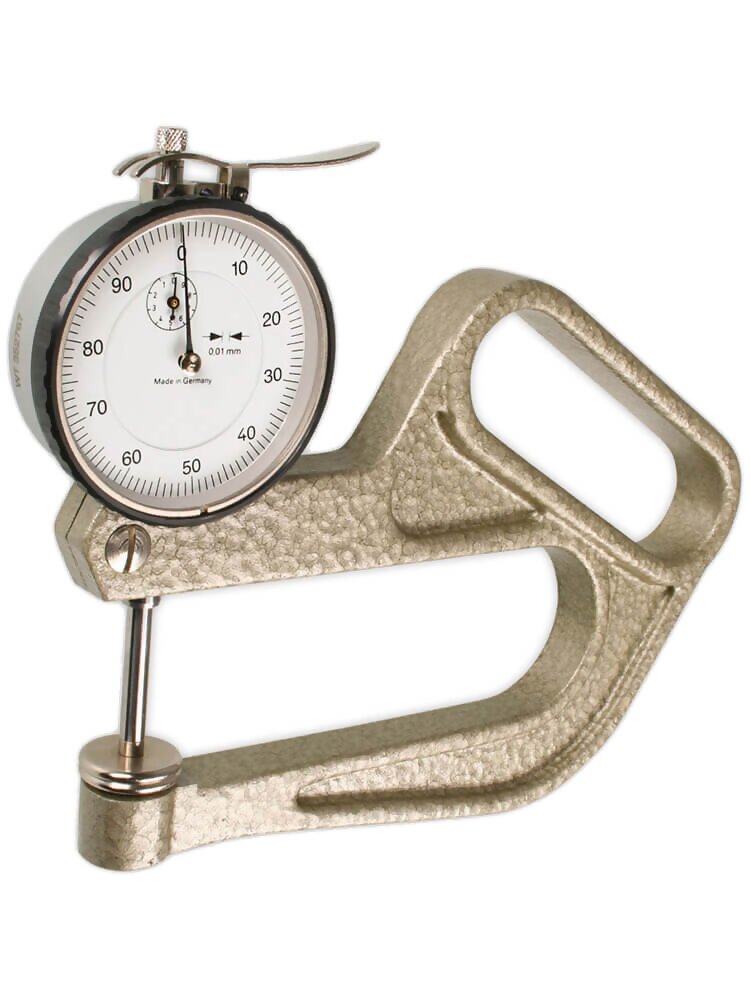

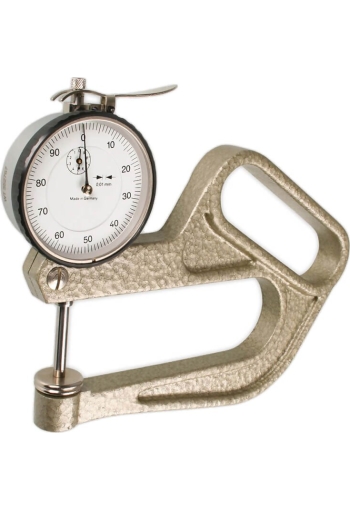

The J-100 (metric) and JZ-100 (imperial) thickness gauges are designed for measuring the thickness of leather, textile, cardboard, felt, rubber, sheet metal, foils, plywood, plastic parts of all kind, etc.
The aluminum housing is lightweight and rugged. It can be easily zeroed by turning the outer knurled ring of the scale.

Features

---

• Operated by lifting device - self closing
• Dial Resolution 0.01 mm
• Select 1 of 5 different feelers based on your application.
• 1-Year Warranty

Specifications

---

Resolution	0.01 mm
Measuring range	10 mm
Depth of jaw	100 mm
Scale diameter	58 mm
Measuring pressure	1.0 N
Feeler shape	A, B, C, D, or E (1 per gauge)
Measurement by spring load	Operation by lifting device - self closing
Weight, net	450 g

Feeler Shape

---

To order, please indicate the desired feeler, e.g. J-100-B for gauge with feeler B. This means that NOT all feelers are included in the package!

	Feeler: A For rubber, felt*, soft materials*, non wovens*, etc. *Meets no DIN EN ISO standard
	Feeler: B For rubber, felt*, soft materials*, non wovens*, etc. *Meets no DIN EN ISO standard
	Feeler: C For soft leather, cardboard, paper, foils, etc.
	Feeler: D For hard leather, plywood, fiberboard, etc.
	Feeler: E For sheet metal, etc.
