Hans-Schmidt SC4-PM Digital Tension Indicator

See More Tension Indicators & Amplifiers
Call for price
  • FREE Ground Shipping on Orders Over $150
warrenty

Product Description

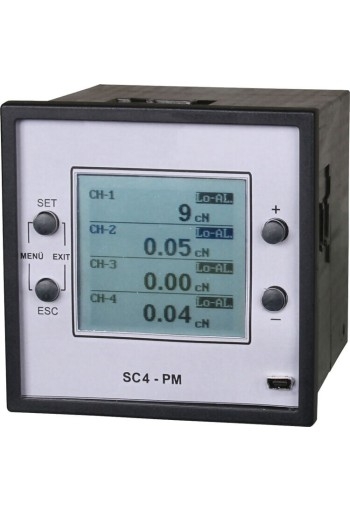

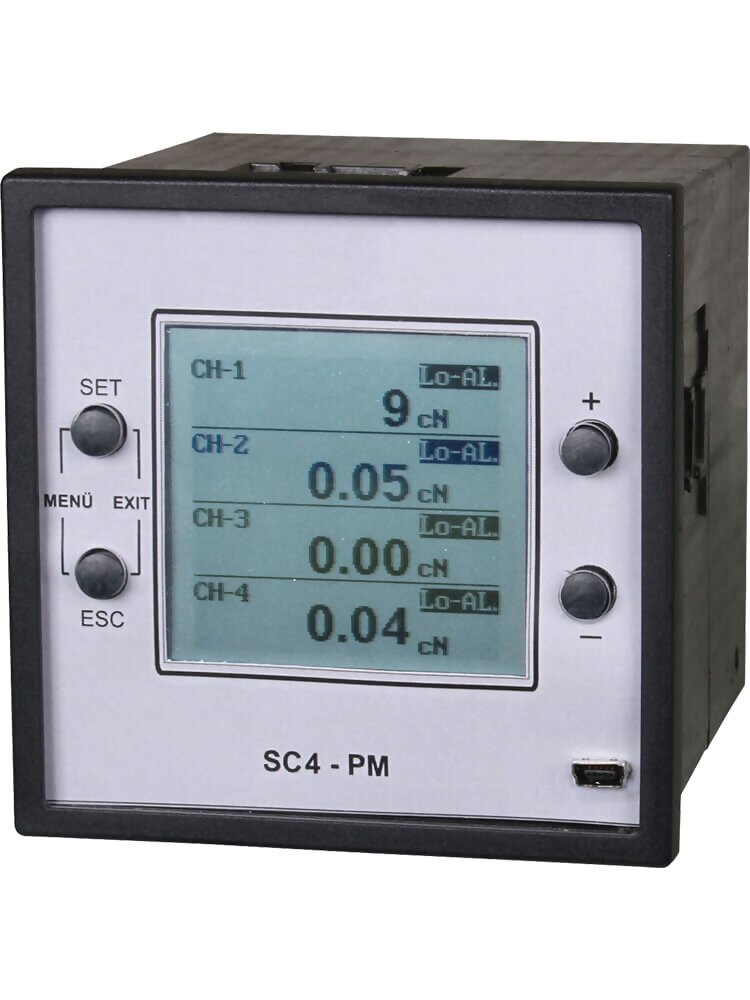

Panel mount digital display unit
Suitable for connecting a maximum of 4 sensors (different ranges are possible) with analog output 0 – 1 V DC or optional series without integrated amplifier (output mV/V)

The Hans-Schmidt SC4-PM Digital Tension Indicator is designed to connect to up to four (4) separate tension sensors. The current value of each of the connected sensors are shown simultaneously as a numeric value along with the engineering units


line
Kit Contents
line

  • Hans-Schmidt SC4-PM Digital Tension Indicator
  • USB connecting cable
  • Certificate of Compliance with the order 2.1 according EN 10204 free of charge
  • Instruction Manual
  • Transport Packaging


line
Features
line

  • Panel mount display unit (1/4 DIN IEC 61554 cutout – 91.5 x 91.5 mm)
  • Required power supply +15…24 V DC (regulated)
  • The instrument povides the required power (+15 V DC) for the connected sensor
  • CE certified with sensor connected
  • Suitable for connecting a maximum of 4 sensors (different ranges are possible) with analog output 0 – 1 V DC or optional series without integrated amplifier (output mV/V)

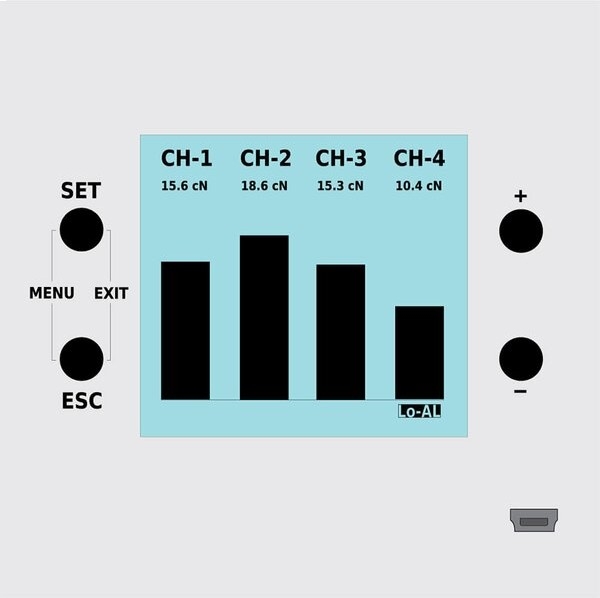

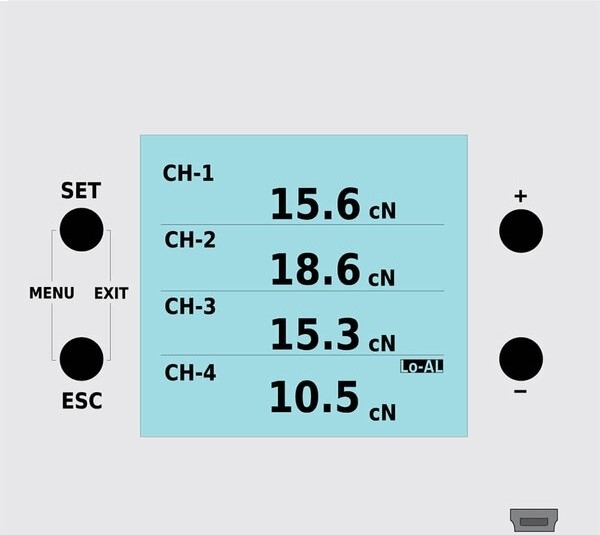

  • Backlight, graphic LCD display with 2 different display modes:
    • Readings wit alarm control
    • Bar chart, reading and alarm control
  • Various output signals are available:

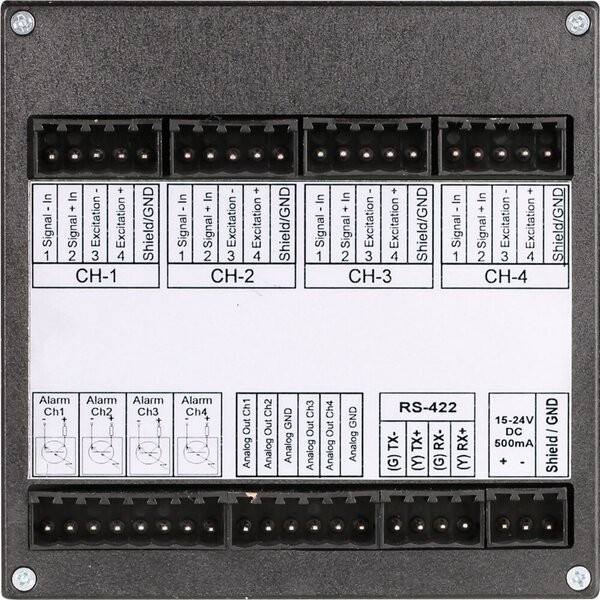

    • digital (standard): USB (front side), RS 422 (rear side)
    • analog (optional): 0 – 10 V DC (rear side)
  • Adjustable damping for easier reading if tension fluctuates
  • User set limits (Min and Max alarms) and open collector output for external control units
  • Each channel of display unit SC4-PM can be scaled to engineering units as grams, cN, daN, N, g, kg, lb and oz depending to the used sensor
  • Easy calibration to customized material by the operator – zero and gain calibration is required for the connected sensor
  • Possibility to store 4 different materials curves
  • Easy operation using keys: menu for configurating the device (alarm limits, damping, units, tension range, language, material curve)
  • The set-up menu can be password protected


line
Specifications
line

Digital displayGraphic LCD display with backlight
Engineering unitscN, daN, g, kg, lb or oz selectable
Adjustment4 material curves can be saved
Selectable Damping9 adjustable settings
Signal processingDigital
Output signalDigital (standard): USB and RS 422 (57600, 8, N, 1)
Analog (option): 0 – 10 V DC /RLast ≥ 5kΩ
Input signal0 – 1 V DC, option mV/V
Alarm limitsProgrammable MIN.- MAX limits per sensor
Alarm limitsOpen collector max. 30 V DC, 10 mA
Exit hubTerminal strip
Power supply for sensorYes
Power supply+15 … 24 V DC, 100 mA, regulated
Current consumption0.300 A
Temperature range10 – 45° C
Air humidity85 % RH, max.
HousingPlastics
Cut out1/4 DIN cut out: 110 x 90 x 90 mm (LxWxH), mounting cut out 91.5 x 91.5 mm
Weight, net (gross)Approx. 300 g (Approx. 1000 g)


line
Models
line

 Connectable SensorsOutput Signal
SC4-PMSensors with amplifier (0 – 1 V)USB, RS 422, open collector
SC4-PMDSensors without amplifier (mV/V)USB, RS 422, open collector


line
Output Signal
line

Standard

Output signal: Digital, USB

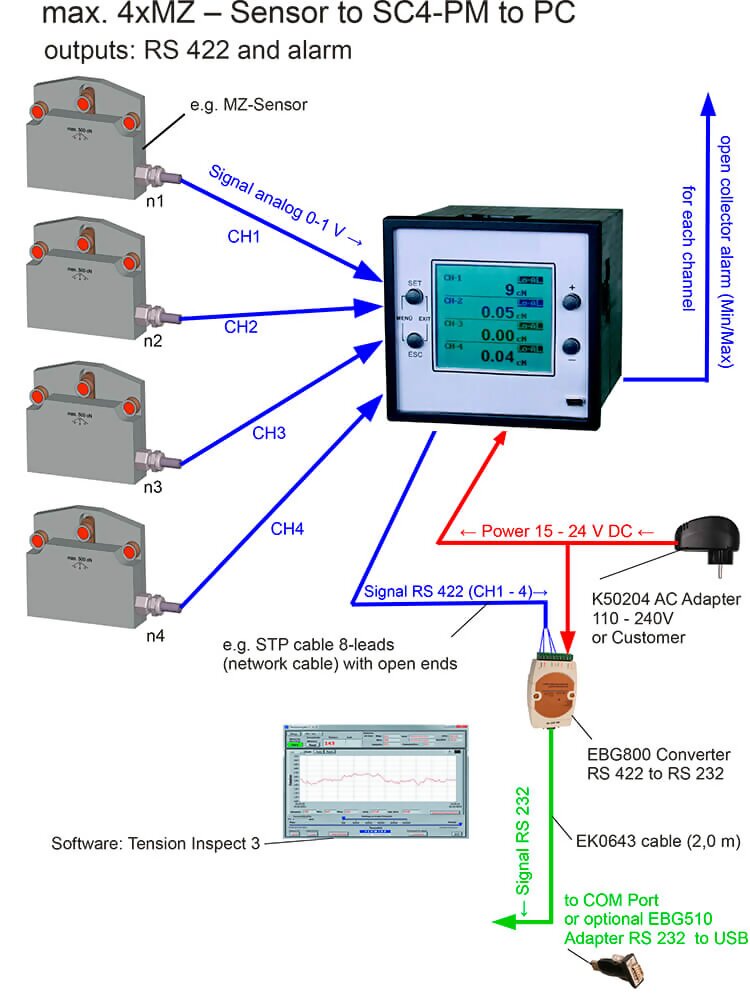

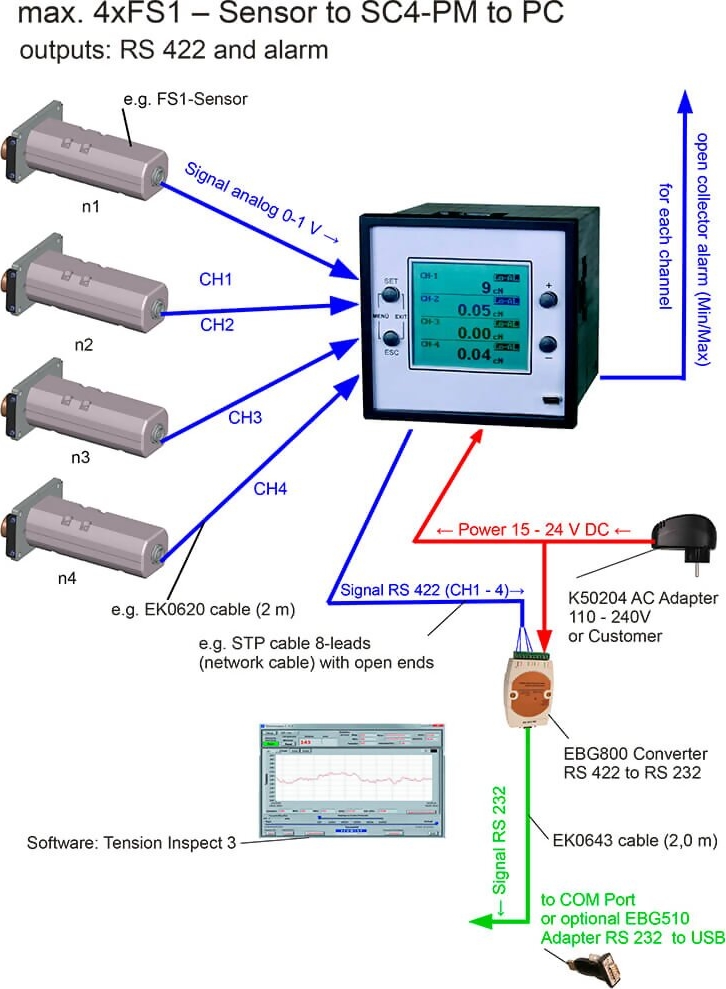

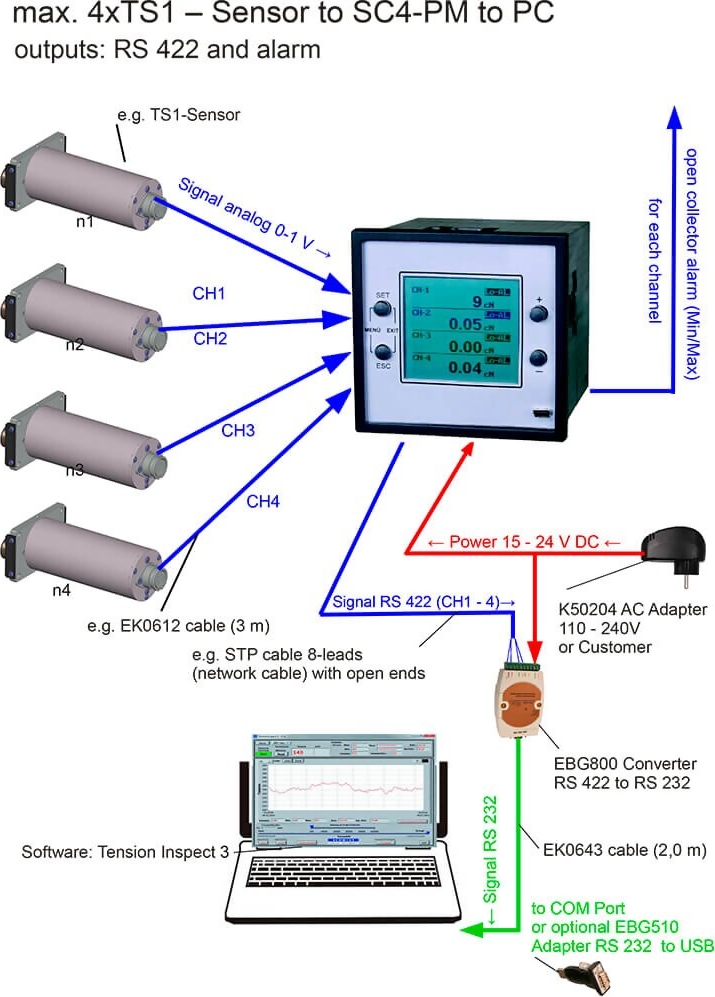

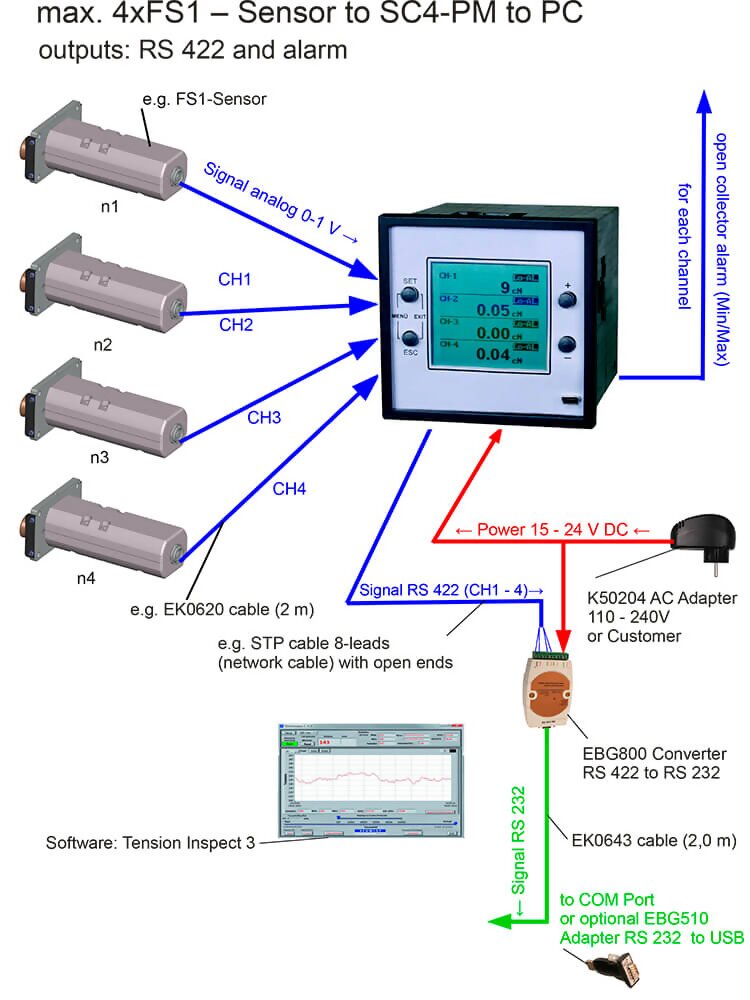

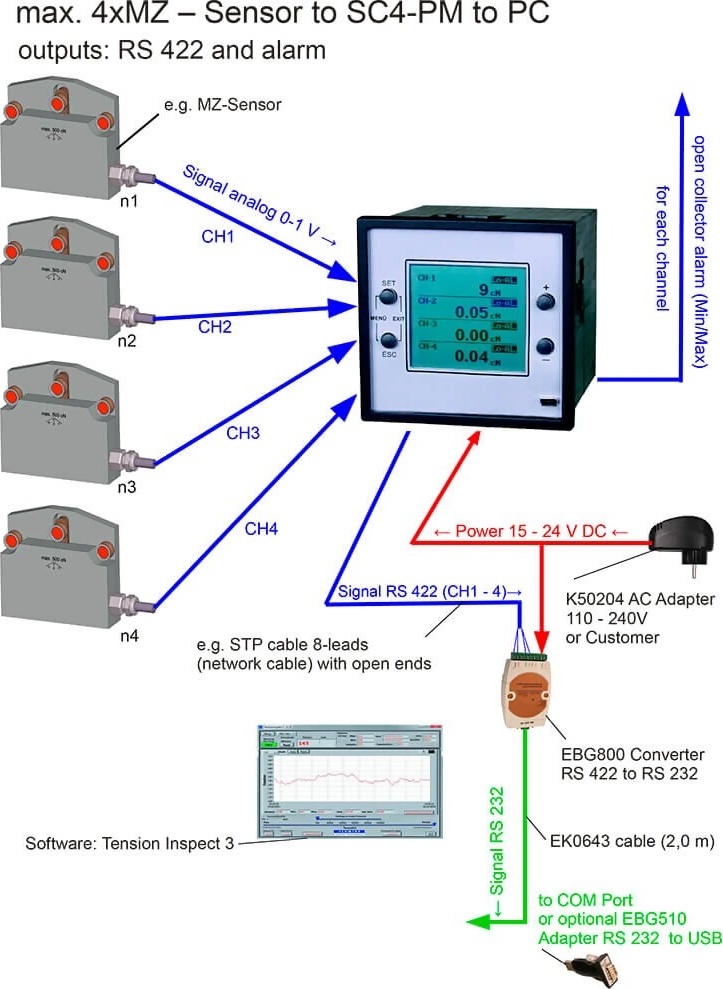

  • 4 x open collector to connect the display to a PC
  • Max. 200 readings can be transferred per second



Standard

Output signal: Digital, RS 422

  • 4 x open collector to connect the display to a PC
  • Used to send data over a longer distance or multi user systems
  • Max. 200 readings can be transferred per second

Code A2

Output signal: Analog, 0 – 10 V DC
