Product Description
For use with sensors providing mV/V output
Provides ZERO and GAIN Adjustment Pots for Calibration purposes
Requires 15-24V DC power source

Strain gauge amplifier for sensors without integrated amplifier (mV/V output)

Convenient for all sensors of TS2, TSC and SF series Tension Sensors

Designed for DIN Rail Mounting


line
Kit Contents
line

  • Hans-Schmidt SCV-1 Amplifier Tension Indicators & Amplifiers
  • Certificate of Compliance with the order 2.1 according EN 10204 free of charge
  • Operating Instruction


line
Features
line

  • For use with sensors providing mV/V output
  • Provides ZERO and GAIN Adjustment Pots for Calibration purposes
  • Output signals: Analog: 0 - 1 V DC (standard) | Analog: 0 - 10 V DC (option A2) | Current: 4 - 20 mA (option A3)
  • DIN Rail Mounting
  • Requires 15-24V DC power source
  • CE certified with sensor connected
  • LED Indicator shows Power to Amplifier


line
Specifications
line

Output signalanalog: 0 - 1 V DC /R (Last) ≥ 5kΩ
analog 0 - 10 V DC (option)
4 - 20 mA instead of 0 - 10 V DC
Input signalmV/V
Power supply15 - 24 V DC, 50 mA
Temperature range10 - 45° C
Air humidity85 % RH, max.
HousingPlastics

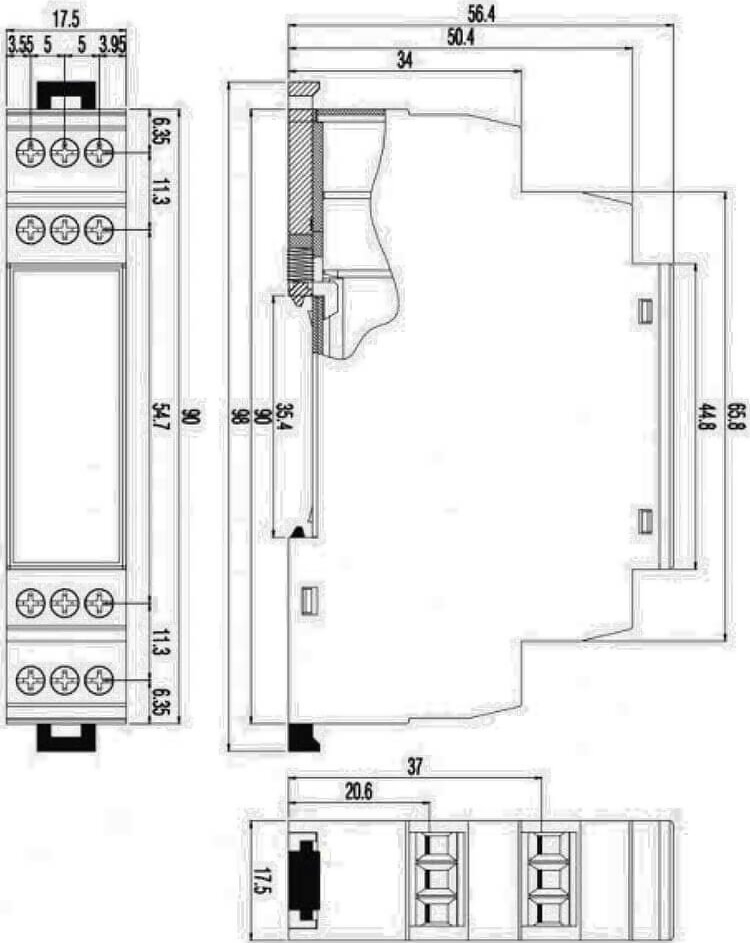

Dimensions90 x 56 x 18 mm (LxWxH), DIN EN 60715 tophat rail box
Weight, net (gross)Approx. 53 g


line
Downloads
line

Hans-Schmidt SCV-1 Amplifier Tension Indicators & Amplifiers - Data Sheet
Hans-Schmidt SCV-1 Amplifier Tension Indicators & Amplifiers - Instruction Manual
Hans-Schmidt SCV-1 Amplifier Tension Indicators & Amplifiers - Output Signal
