Hans-Schmidt TSCB-Series Compact Online Tension Sensor

See More Tension Sensors, Online

4 Tension Ranges from 0-100 g up to 0-1000 g

2 Roller Widths; 7 or 10 mm Diameters

Compact housing design for Limited Access Space

Universal Tension Sensor for Tapes, Bands and Tows (Glass and Carbon Fibers)

4 Tension Ranges from 0-100 g up to 0-1000 g
2 Roller Widths; 7 or 10 mm Diameters
Can be supplied with V-Grooved or U-Grooved Rollers, TSC-Series

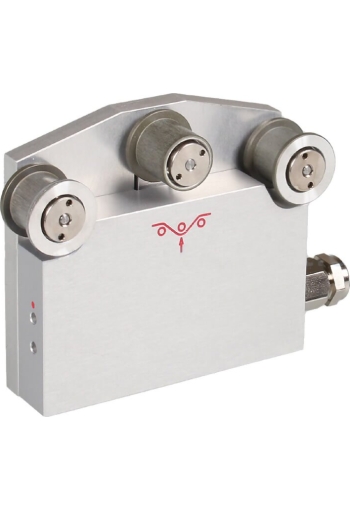

The Hans-Schmidt TSCB-Series Compact Online Tension Sensor is a purpose-built online tension sensor for continuous measurement of running line tensions of narrow tapes, bands, webs, tows of fiberglass or carbon fibers and similar process materials. The precision-machined housing is constructed allowing for the installation of several sensors in close proximity to one another when the end-to-end spacing of the process material is limited. Multiple sensors can be mounted adjacent to another for fixed to a single rail for quick and easy mounting.. Built-in signal conditioning with ZERO and SPAN pots provide a high-level, analog output to minimize the chance for signal interference.

Can be used for process diagnostics, for continuously monitoring and recording of online tensions. The TSCB Series Tension Sensor can also be used as part of a closed-loop control system with 3rd-Party controller.

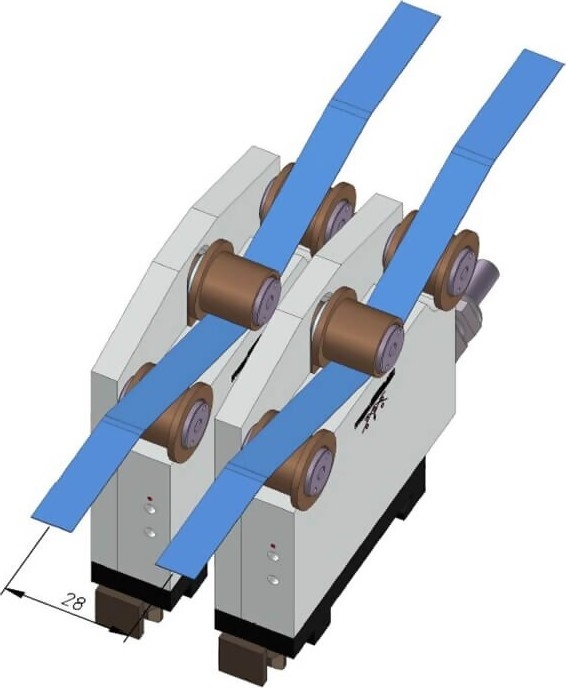

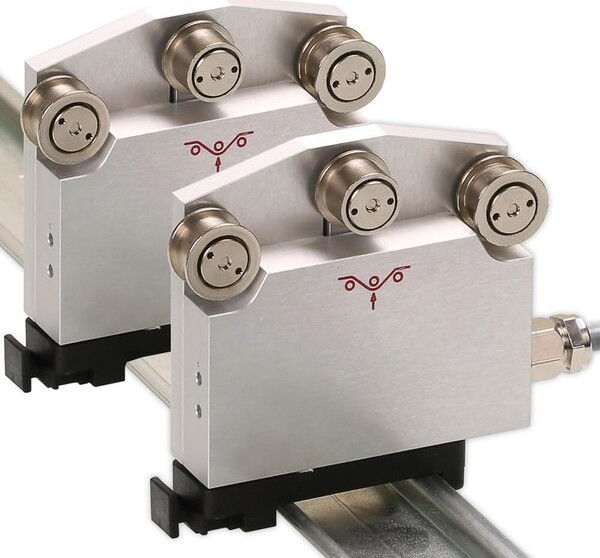

Mounting possibilities: Sensor can be mounted on a flat plate using the supplied thru holes on the underside of the housing body or fixed on the optional rail allowing for quick, easy installation and allows for multiple sensors mounted adjacent to one another with minimal spacing.

line
Features
line

Strain Gauge-based sensor provides accuracy of 2% Full Scale or better. Sensor can be mounted in any orientation depending upon the material path.
Built-in Signal Conditioner provides 0-1 V DC Analog Output (0-10V or mv/V, optional) with Integrated Zero & Gain Pots on rear-side of sensor allowing for convenient calibration by the end-user for highest accuracy
Supplied with easy-running ball-bearing mounted, flat cylindrical rollers with flanges.
7 mm wide roller is fabricated from nickel-plated steel, 10 mm roller is hardcoat anodized aluminum
Rollers can be supplied with a special carbon-optimized coating ("orange peel"), Option Code CF
Can be used together with SC-PM, PD765 Digital Tension Indicator or with user-supplied electronics (requires 15-24 V DC regulated power).
3-Roller design insures that the center sensor rollers has the same wrap angle at all times which allows the sensor to be mounted in any position on the line
Sensor can be mounted on a flat plate using the supplied thru holes on the underside of the housing body or fixed on the optional rail allowing for quick, easy installation
Slim Sensor Housing allows for multiple sensors mounted adjacent to one another with minimal spacing
Includes 2 meter (6 ft) length integrated cable with open ends for connection to Tension Indicator or user-supplied electronics

line
Specifications
line

Accuracy	±2% full scale and ±1 digit
Overload protection	100% of tension range
Measuring principle	Strain gauge bridge
Measuring roller deflection	max. 0.5 mm
Signal processing	analog
Output signal	Standard: 0-1 V DC (analog) Option: 0-10 V DC (Option "DC") or 2mV/V Direct Strain Gauge Output (Option "A10")
Option "A10" Output	1 mV/V output, 5V DC power required (3-5V DC)
Cable	Shielded cable (2 m) with open ends
Damping (fg)	Standard (analog): 30 Hz
Temperature drift	better ± 0.05 % FS/ °C
Temperature range	10 - 45 °C
Air humidity	85 % RH, max.
Power supply	+ 15 ... 24 V DC, 21 mA (regulated);
Housing	Aluminium, with threaded mounting holes on underside (M3 Thread)
Housing dimensions	70 x 55 x 17 mm (L x W x H)
Weight, net	Approx. 100 g
Connection to PD765	SIGNAL: Yellow (Sig+) to V+, Green (Sig-) to COM DC-POWER:White (Exc+) to P2+, Brown (Gnd) to P2-

line Ranges line

Model	Range	Measuring Head Width*	Roller Width**
TSCBB-100-7	0 - 100 g	70 mm	7 mm
TSCBB-200-7	0 - 200 g	70 mm	7 mm
TSCBB-500-7	0 - 500 g	70 mm	7 mm
TSCBB-1000-7	0-1000 g	70 mm	7 mm
TSCBB-100-10	0 - 100 g	70 mm	10 mm
TSCBB-200-10	0 - 200 g	70 mm	10 mm
TSCBB-500-10	0 - 500 g	70 mm	10 mm
TSCBB-1000-10	0-1000 g	70 mm	10 mm
