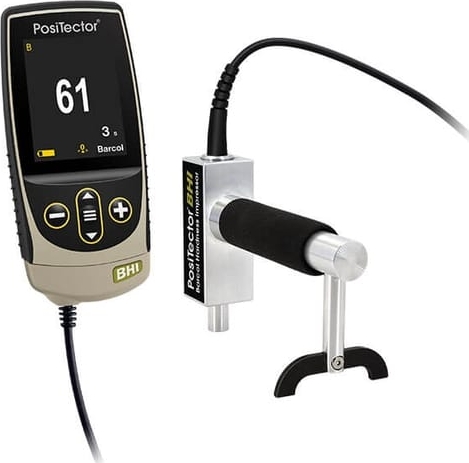

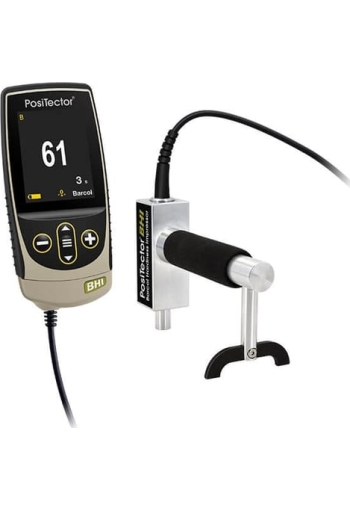

DeFelsko PosiTector BHI1 Standard Barcol Hardness Impressor

DeFelsko BHI1-G PosiTector BHI Standard Barcol Hardness Impressor

See More Barcol Hardness Testers

DeFelsko PosiTector BHI Standard Barcol Hardness Impressor

Easy-to-read digital display

Comparable to 934-1 Barcol Hardness Tester

Lightweight, portable device can be used in any orientation

The DeFelsko PosiTector BHI Barcol Hardness Impressor measures the hardness of soft metals such as aluminum, aluminum alloys, copper, brass, and other materials such as harder plastics, and fiber-reinforced plastic

Easy-to-read digital display
Comparable to 934-1 Barcol Hardness Tester
Lightweight, portable device can be used in any orientation
PosiTector interchangeable platform – attach any PosiTector probe to a single gage body
USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software
Certificate of Calibration showing traceability to NIST included (Long Form)

Conforms to ASTM B648/D2583, DIN EN 59 and AS/NZS 3572.22

line
Kit Contents
line

The DeFelsko PosiTector BHI1 Standard Barcol Hardness Impressor Kit includes everything needed for testing

PosiTector Advanced Gage Body BDYSTD-G

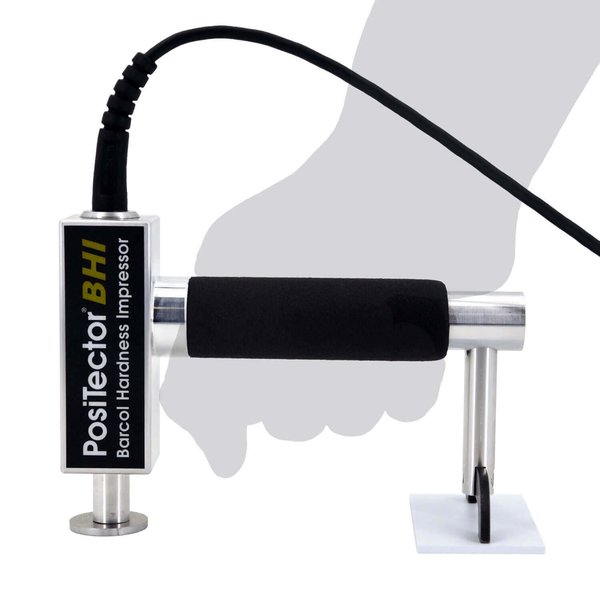

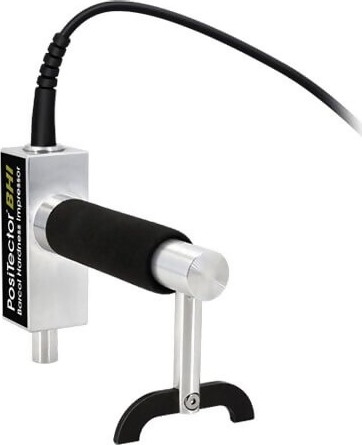

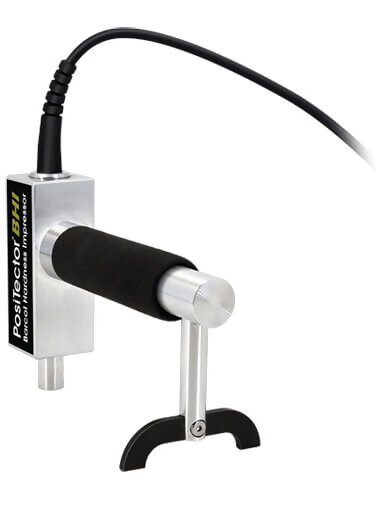

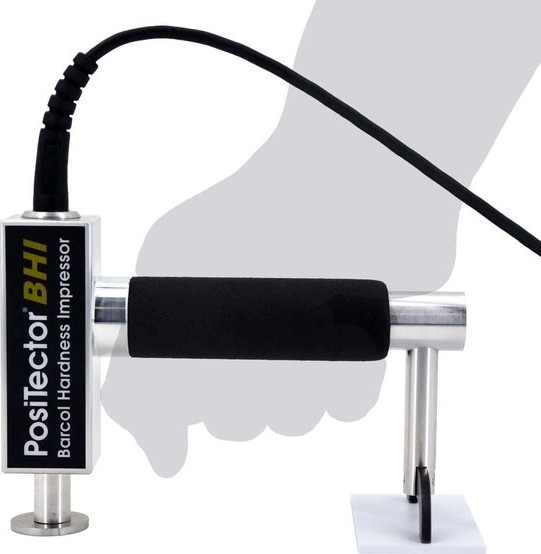

PosiTector BHI Probe PRBBHI
Two (2) Test Disks
Leveling Plate and Glass Plate

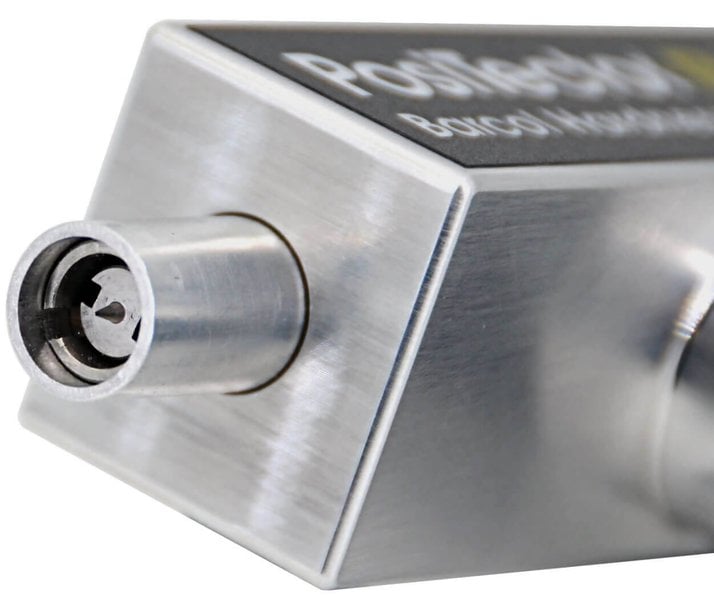

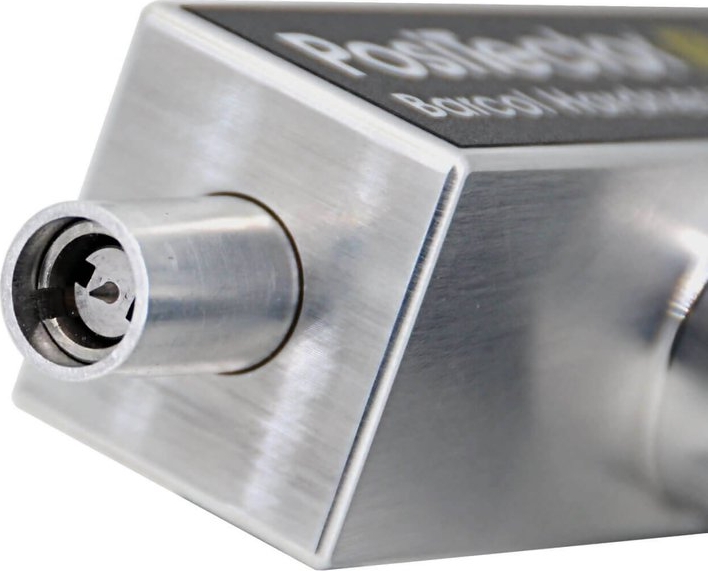

Replacement Indentor with Replacement Tool
Protective rubber holster with belt clip
Wrist Strap and Protective lens shield
3 AAA alkaline batteries
PosiSoft Software and USB cable
Long Form Certificate of Calibration
Hard Shell Case and Instructions
Two (2) Year Warranty

line
Features
line

Simple

Easy-to-read digital display
Comparable to 934-1 Barcol Hardness Tester
User-adjustable measurement time with onscreen countdown
Includes spare, field replaceable indentor with replacement tool
Lightweight, portable device can be used in any orientation
RESET feature instantly restores factory settings

Durable

Solvent, acid, oil, water and dust resistant - weatherproof
Shock-absorbing, protective rubber holster with belt clip
Hard-shell carrying case included
Two year warranty on gage body AND probe

Accurate

Long Form Certificate of Calibration included
Hi-RES mode increases displayed resolution for use on applications that require greater precision
Includes hard and soft aluminum alloy test disks and leveling plate to verify gage operation
Conforms to national and international standards including ASTM

Versatile

PosiTector body accepts all PosiTector BHI, SHD, 6000, 200, DPM, IRT, RTR, SPG, SST, and UTG probes easily converting from a hardness tester to a coating thickness gage, dew point meter, infrared thermometer, surface profile gage, soluble salt tester, or ultrasonic wall thickness gage
1 and 2 point calibration options with Cal Reset to restore factory settings
Selectable display languages
High contrast LCD with backlit display
Flip display enables right-side-up viewing
Uses alkaline or rechargeable batteries (built-in charger)

Powerful

Continually displays/updates average, standard deviation, min/max hardness and number of readings while measuring
Screen Capture - save screen images for record keeping and review
HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
Sealed USB Port for fast, simple connection to a PC and to supply continuous power
PosiSoft USB Drive - stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
Software Updates via web keep your gage current
Software Solutions for viewing, analyzing and reporting data
Every stored measurement is date and time stamped

line
Standard Model Features
line

Includes ALL features as shown:

Storage of 1000 readings per probe - stored readings can be viewed or downloaded

line
Specifications
line

Measurement Range	20 - 100 Barcol
Resolution	0.1 Barcol
Accuracy	± 2 Barcol
Gauge Body Size	137 x 61 x 28 mm (5.4" x 2.4" x 1.1")
Gauge Body Weight	140 g (4.9 oz) without batteries
Probe Size	145 x 97 x 64 mm (5.7" x 3.8" x 2.5")
Probe Headroom	140 mm (5.5")
Probe Weight	400 g ( 14.1 oz)

PosiSoft Suite of Software line

Four FREE and unique ways to view and report your PosiTector and PosiTest data. Learn More

line
Accessories
line

Test Disks

For verifying the operation of Barcol hardness impressors. Choose from hard or soft aluminum alloys.

line

Replacement Glass Plate

For zeroing worn or replaced indentors on the PosiTector BHI.

line

Replacement Indentors

Spare indentor tips (2pk) for PosiTector BHI. Includes additional indentor with replacement tool.

line
Downloads
line

DeFelsko PosiTector BHI Barcol Hardness Impressor - Instruction Manual

DeFelsko PosiTector BHI Barcol Hardness Impressor - Literature

DeFelsko Accessories for Inspection Instruments - Online Catalog

F.A.Q.

What is a Barcol Hardness Impressor?

A Barcol Hardness Impressor is an instrument that measures the indentation hardness of soft metals (aluminum, aluminum alloys, copper, brass, etc.), harder plastics and fiber-reinforced plastics.

What are some typical applications for Barcol hardness?

Aluminum production
Forgings, castings, raw stock inspection
FRP/GRP - fiber and glass reinforced plastics (both reinforced and non-reinforced rigid plastics)
Duro or hard thermo plastics
Degree of cure in composite materials

I currently use an analog (dial) type Barcol Impressor. What are the advantages of the digital PosiTector BHI?

The PosiTector BHI has numerous advantages over conventional analog instruments, and over many competitive digital instruments:

‍Memory: The PosiTector BHI has the ability to save readings for archival or reporting, without the need for error-prone transcription. This greatly enhances the reliability and convenience of reporting.
‍Reporting Software Options: The PosiTector BHI includes the PosiSoft suite of software for viewing and reporting data. Select from a powerful desktop version, built-in USB drive, web-based or mobile applications.
‍Test Time: Some materials continue to deform while the measurement is being taken. To achieve consistent results, it is often recommended to record measurements after a set amount of time has elapsed. The PosiTector BHI allows users to set a test time, which begins counting down on the screen when the indentor is placed on the surface to be measured. After that period has elapsed, a measurement is recorded and displayed. This is vastly superior to existing methods of using a stopwatch, or more often, estimating when the required test time has elapsed.
‍Auto Sub-Batch (Advanced models only): As with most measurement processes, it is advisable to take multiple measurements at each test location (spot), to ensure the user hasn’t taken an erroneous or outlying reading. With the Auto Sub-Batch feature, a new sub-batch is created after the desired number of measurements is taken, conveniently grouping readings from each location.
‍Interchangeability: PosiTector body accepts all PosiTector BHI, SHD, 6000, 200, IRT, DPM, RTR, SPG, SST, and UTG probes easily converting from a hardness tester to a coating thickness gage, dew point meter, infrared thermometer, surface profile gage, soluble salt tester, or ultrasonic wall thickness gage.

How should I store the PosiTector BHI when not in use?

The PosiTector BHI comes complete with a hard shell plastic case.

What is the life expectancy of the probe tip?

The durable probe tip is designed for long life and continuous accuracy. A glass zero plate and test disks are included for verifying accuracy. Replacement probe tips are available to replace worn, out of tolerance tips.

Why is a glass zero plate included?

The PosiTector BHI is factory calibrated and for most applications no calibration adjustment is required. However, there may be times when a zero adjustment is necessary including after indentor replacement or to compensate for indentor wear. For best accuracy, the Gage should be zeroed on the included glass plate.

Can I purchase a new PosiTector BHI probe for an existing PosiTector gage body?

Yes. PosiTector BHI probes are compatible with PosiTector Standard gage bodies with a color display and PosiTector Advanced gage bodies with serial numbers greater than 730,000. You can simply update your existing PosiTector gage body by following step-by-step instructions at www.defelsko.com/update.

Is the new PosiTector BHI probe compatible with PosiSoft solutions?

Yes. The NEW PosiTector BHI probes are compatible with PosiSoft Desktop v4, PosiSoft.net and the PosiTector App for Apple and Android. They are currently not compatible with the PosiTector SmartLink.

How are PosiTector BHI probes calibrated at DeFelsko?

Each PosiTector BHI probe is calibrated using certified materials referenced in ASTM B648-10. A Long Form Certificate of Calibration containing actual measured values is included with each probe.

How long is the warranty on the PosiTector BHI probe?

DeFelsko Corporation's standard 2 year warranty applies.

ADD TO CART THE ITEMS YOU WOULD LIKE TO PURCHASE
DeFelsko BHI1-G PosiTector BHI Standard Barcol Hardness Impressor	$1,245.00

ADD TO CART THE ITEMS YOU WOULD LIKE TO PURCHASE

Models

Price

DeFelsko BHI1-G PosiTector BHI Standard Barcol Hardness Impressor

$1,245.00
