    Product Description

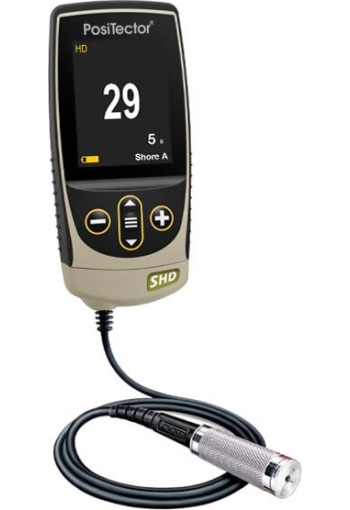

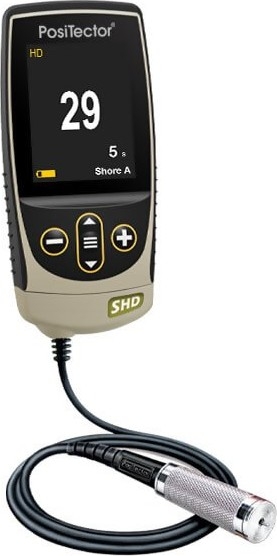

    DeFelsko Positector SHD Shore Hardness Durometers
    User-adjustable measurement time with onscreen countdown to conform to national and international standards
    Easy-to-read digital display
    Solvent, acid, oil, water and dust resistant - weatherproof

    Shore Hardness Durometers for the indentation hardness of non-metallic materials

    Handheld electronic instrument measures the indentation hardness of non-metallic materials. Two durometer models are available for different hardness ranges—Shore A and Shore D.

    • User-adjustable measurement time with on-screen countdown to conform to national and international standards
    • Auto Ignore mode disregards hardness readings below 20 and above 90 per international standards
    • NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
    • NEW Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
    • PosiTector interchangeable platform—attach any PosiTector probe to a single gage body
    • USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software
    • Certificate of Calibration showing traceability to NIST included (Long Form)

    Conforms to ASTM D2240, ISO 868/7267/7619, and DIN 53505


    line
    Kit Contents
    line

    • PosiTector SHD Shore Hardness Durometers Gage
    • PosiTector SHD Shore Hardness Durometers Probe
    • Test Block
    • Protective rubber holster with belt clip
    • Wrist strap and protective lens shield
    • 3 AAA alkaline batteries
    • PosiSoft Software and USB cable
    • Long Form Certificate of Calibration traceable to NIST or PTB
    • Convenient carrying case and instructions
    • Two (2) year warranty


    line
    Features
    line

    Simple

    • Easy-to-read digital display
    • User-adjustable measurement time with on-screen countdown to conform to national and international standards
    • NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
    • NEW On-gage help explains menu items at the touch of a button
    • RESET feature instantly restores factory settings

    Durable

    • NEW Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
    • NEW Ergonomic design with durable rubberized grip
    • Shock-absorbing, protective rubber holster for added impact resistance
    • Hardened steel indentor
    • Two year warranty on gage body AND probe

    Accurate

    • Certificate of Calibration showing traceability to NIST included
    • Auto Ignore mode disregards hardness readings below 20 and above 90 per international standards
    • Hi-RES mode increases displayed resolution for precision applications
    • Includes test block to verify operation
    • Conforms to ASTM D2240, ISO 868/7267/7619 and DIN 53505

    Versatile

    • PosiTector body accepts all PosiTector SHD, BHI, 6000, 200, DPM, IRT, RTR, SPG, SST, and UTG probes easily converting from a hardness tester to a coating thickness gage, dew point meter, surface profile gage, soluble salt tester, or ultrasonic wall thickness gage
    • Selectable display languages
    • NEW Auto rotating display with Flip Lock

    Powerful

    • Statistics mode continually displays/updates average, standard deviation, min/max, and number of readings while measuring
    • NEW Screen Capture—save 100 screen images for record keeping and review
    • NEW Instant-on feature quickly powers up the gage if recently powered down
    • HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
    • USB Port for fast, simple connection to a PC and to supply continuous power. USB cable included.
    • PosiSoft USB Drive—stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
    • Every stored measurement is date and time stamped
    • Includes PosiSoft suite of software for viewing and reporting data
    • Software Updates via web keep your gage current


    line
    Standard Models Features
    line

    Includes ALL features as shown above plus:

    • NEW Storage of 1,000 readings per probe—stored readings can be viewed or downloaded


    line
    Advanced Models Features
    line

    Includes ALL features as shown above plus:

    • NEW Storage of 250,000 readings from multiple probes in up to 1,000 batches and sub-batches
    • Auto Sub-Batch—automatically create sub-batches after the required number of readings are taken
    • Live graphing of measurement data
    • NEW Touchscreen keyboard for quickly renaming batches, adding notes, and more
    • WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
    • Bluetooth 4.0 Technology for data transfer to a mobile device running the
      PosiTector App or optional portable printer. BLE API available for integration into third-party software.
    • Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols
    • Store thickness, profile, environmental, wall thickness, and hardness measurements in individual batches


    line
    Specifications
    line

    Body Size*127 x 66 x 25.4 mm (5" x 2.6" x 1")
    Weight*137 g (4.9 oz.) without batteries

    * Size and weight are for the PosiTector gage body only and do not include the probe


    line
    Models
    line

    StandardSHD A1SHD D1
    APPLICATIONAPPLICATION
    Soft to hard materials such as soft rubber, elastomers,neoprene, silicone, etc.Medium to extra hard materials such as hard rubber, epoxies, hard plastics, PVC, acrylic, etc.
    MEASURING RANGEMEASURING RANGE
    0 - 100 Shore A0 - 100 Shore A
    ACCURACYACCURACY
    ± 1± 1
    RESOLUTIONRESOLUTION
    0.10.1

    line

    AdvancedSHD A3SHD D3
    APPLICATIONAPPLICATION
    Soft to hard materials such as soft rubber, elastomers,
    neoprene, silicone, etc.    		Medium to extra hard materials such as hard rubber,
    epoxies, hard plastics, PVC, acrylic, etc.
    MEASURING RANGEMEASURING RANGE
    0 - 100 Shore A0 - 100 Shore A
    ACCURACYACCURACY
    ± 1± 1
    RESOLUTIONRESOLUTION
    0.10.1

    line

    Probe OnlyPRBSHDAPRBSHDD
    APPLICATIONAPPLICATION
    Soft to hard materials such as soft rubber, elastomers,
    neoprene, silicone, etc.    		Medium to extra hard materials such as hard rubber,
    epoxies, hard plastics, PVC, acrylic, etc.
    MEASURING RANGEMEASURING RANGE
    0 - 100 Shore A0 - 100 Shore A
    ACCURACYACCURACY
    ± 1± 1
    RESOLUTIONRESOLUTION
    0.10.1


    lineRelated Productsline

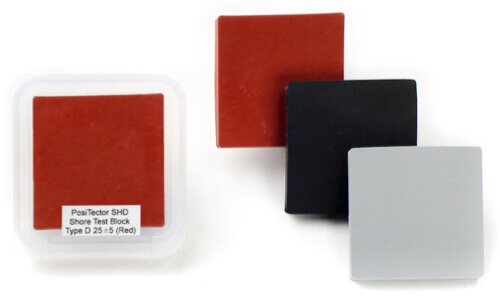

    PosiTector SHD Test Blocks

    • Ideal for checking the operation of durometers
    ModelHardness
    SHDTESTA30Shore A 30
    SHDTESTA50Shore A 50
    SHDTESTA75Shore A 75
    SHDTESTD25Shore D 25
    SHDTESTD46Shore D 46
    SHDTESTD75Shore D 75

    line

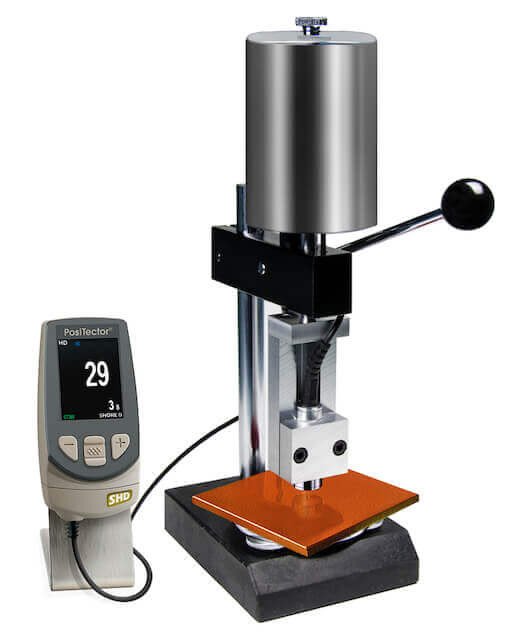

    PosiTector SHD Test Stand
    • Helps reduce operator influence by ensuring the probe is placed perpendicular in a controlled, repeatable way
    ModelFor use withInclude deadeweight
    SHDSTANDAShore A1 kg. - 2.2 lbs.
    SHDSTANDDShore D5 kg. - 11 lbs.

    line

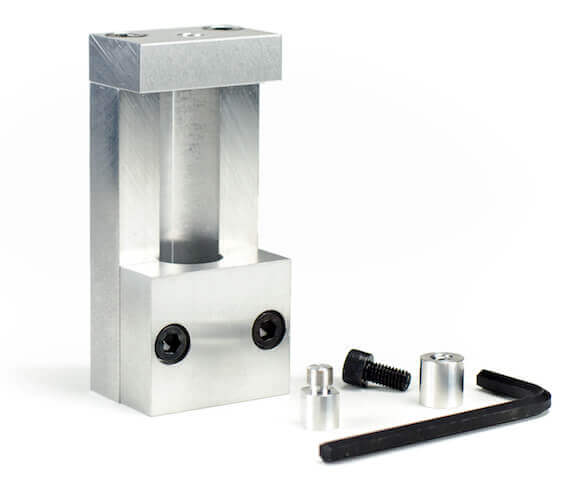

    PosiTector SHD Universal Adapter
    Order Code: SHDPRBMNT

    • For use with threaded mounts in other test stands and calibrators

    line

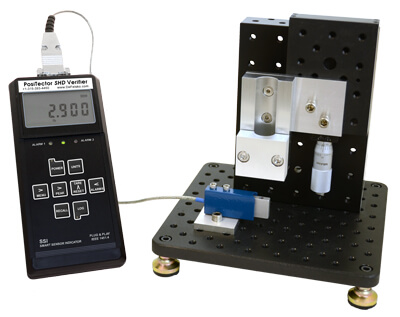

    PosiTector® SHD Verifier
    • The PosiTector SHD Verifier is ideal for checking accuracy and operation of Shore hardness durometers and is an important component in fulfilling both ISO and in-house quality control requirements.



    PosiSoft Suite of Software

    Four FREE and unique ways to view and report your PosiTector and PosiTest data. Learn More


    Downloads

    DeFelsko PosiTector SHD Shore Hardness Durometers - Literature
    DeFelsko PosiTector SHD Shore Hardness Durometers - Instruction Manual
    DeFelsko Accessories for Inspection Instruments - Online Catalog

    F.A.Q.

    Do your instruments require any formal training for use? Do you offer ‘demo’ models?

     No. Our instruments are designed for simple operation, feature easy-to-use menus, instruction manuals, and helpful videos. In lieu of demonstration models, we provide unlimited technical support via telephone and/or email, and a limited 30-day money back guarantee.

    Is the DeFelsko PosiTector SHD calibrated at the factory?

    The DeFelsko PosiTector SHD arrives fully calibrated and ready to measure. A Long-Form Certificate of Calibration traceable to NIST or PTB is included, which documents actual readings taken by your instrument at our calibration laboratory on standards traceable to a national metrology institute. Beware of ‘Certificates’ or ‘Certificates of Conformance’ offered by competitors. These typically do not include actual instrument readings, and are often insufficient to meet common quality requirements.

    The included Test Block allows the gage operator to quickly verify correct operation and accuracy of the SHD.

    What is the difference between Shore A and Shore D durometers?

    DeFelsko PosiTector SHD Shore Hardness Durometers measures the indentation hardness of non-metallic materials such as polymers, elastomers and rubbers. In the corrosion industry, durometers are commonly used to ensure proper curing of thick coatings and pipeline repair wraps.

    The two DeFelsko PosiTector SHD models look and operate identically, and vary only in the spring pressure and shape of the intender tip. This allows the two models to accurately measure different hardness ranges:

    • Shore A (SHDA)- for soft to hard materials such as soft rubber, elastomers, neoprene, silicone, etc.
    • Shore D (SHDD) - for medium to extra hard materials such as hard rubber, epoxies, hard plastics, PVC, acrylic, etc

    Can the PosiTector SHD measure the hardness of metals?

     No. Shore Hardness Durometers are designed to measure the indentation hardness of non-metallic materials such as polymers, elastomers and rubbers. Nearly all metals are outside the Shore Hardness scale. The PosiTector BHI Barcol Hardness Impressor is ideal for measuring the hardness of soft metals (aluminum, aluminum alloys, copper, brass, etc.), harder plastics and fiber-reinforced plastics.

    Does the PosiTector SHD include a fixture stand?

     No. A PosiTector SHD Test Stand is available as an accessory item for both SHD A and SHD D instruments.

    What is the minimum thickness of material necessary to measure with the PosiTector SHD?

     According to ASTM D2240-15 “Standard Test Method for rubber Property – Durometer Hardness”, the test specimen must be at least 6.0 mm (0.24 inches) thick unless it is known that equivalent test results can be obtained with a thinner specimen. Since in-field use of a Shore durometer can concern testing the hardness of an applied coating with a measured thickness less than 6.0 mm, it is incumbent upon the operator to be aware of both the required coating thickness and its expected hardness for a particular application. Both the coating thickness and expected hardness will be specified by the coating manufacturer. Given the wide variety of coating types extant, DeFelsko has no ability to indicate a minimum coating thickness suitable for testing with our PosiTector SHD.

    Does the PosiTector SHD measure Rockwell/Brinell/Barcol hardness?

     No. The PosiTector SHD Shore Hardness Durometer measures the Shore indentation hardness of non-metallic materials such as polymers, elastomers and rubbers. DeFelsko also manufactures the PosiTector BHI Barcol Hardness Impressor which is ideal for measuring the hardness of soft metals (aluminum, aluminum alloys, copper, brass, etc.), harder plastics and fiber-reinforced plastics.

    How often should the PosiTector probe be recalibrated?

     PosiTector probes include a Certificate of Calibration showing traceability to NIST or PTB included (Long Form) with each probe—with no expiry or end date. They have no shelf life, therefore the length of time in the field is not a good indicator for recalibration intervals. Many organizations with quality programs and recertification programs require annual recalibrations, and this is a good starting point for most users. DeFelsko recommends that customers establish calibration intervals based upon their own experience and work environment. Based on our product knowledge, data and customer feedback, a one year calibration interval from the date the instrument was placed in service is a good starting point.
