DeFelsko SHDVERIFY PosiTector SHD Verifier, Shore Hardness Durometer Accuracy Verification Kit

See More Durometers

Ready to use with all PosiTector Shore Hardness Durometers

Fitted with replaceable Shore A or Shore D Targets to protect probe tips

Shore Hardness Durometer Accuracy Verification Kit

The DeFelsko SHDVERIFY PosiTector SHD Verifier, Shore Hardness Durometer Accuracy Verification Kit is ideal for checking the accuracy and operation of Shore hardness durometers and an important component in fulfilling both ISO and in-house quality control requirements. The PosiTector SHD Verifier and the included documents allow the user to certify the accuracy of PosiTector SHD Shore Hardness Durometers in-house.

High precision load cell and handheld smart sensor indicator verifies PosiTector SHD Shore A and Shore D durometers
Ready to use with all PosiTector SHD Shore Hardness Durometers
Precise load control with micrometer adjustable stage
Ideal for field or laboratory use

line

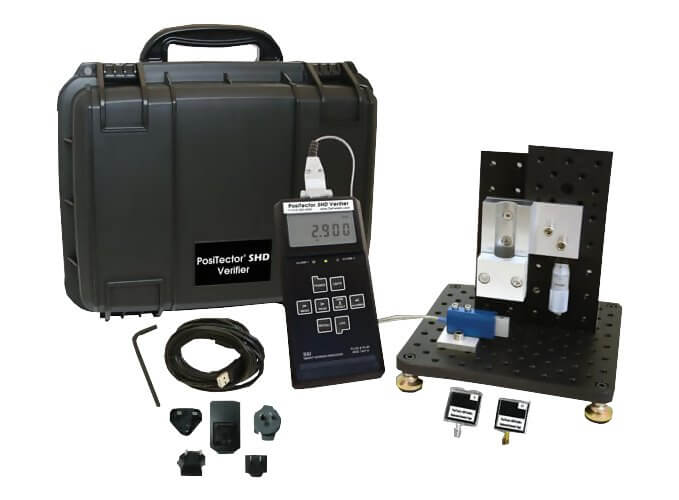

Kit Contents
line

DeFelsko SHDVERIFY PosiTector SHD Verifier
Load Cell
Smart Sensor indicator
Built-in rechargeable Lithium Ion batteries
Universal AC adaptor
Replaceable Shore A (aluminum)
Shore D (brass) targets
Allen wrench
Instructions
Sample Certificate of Accuracy
Hard Shell Carrying Case
Two Certificates of Calibration traceable to NIST
One (1) year warranty

line
Features
line

Simple

Ready to use with all PosiTector Shore Hardness Durometers
Comes with a Sample Certificate of Accuracy
Certificates of Calibration showing traceability to NIST included for both the load cell and smart sensor indicator

Durable

Fitted with replaceable Shore A or Shore D Targets to protect probe tips
Ideal for field or laboratory use
Portable — requires no external power source
One year warranty

Accurate

High precision load cell and handheld smart sensor indicator verifies PosiTector SHD Shore A and Shore D durometers
Precise load control with micrometer adjustable stage

line
Specifications
line

Range	0 - 10
Resolition	.001lb
Accuracy	±0.004 lbs, (± 17.8 mN), (± 0.04 Shore D), (± 0.238 Shore A)

line
Easy Operation
line

Insert the appropriate Target (Shore A or Shore D) into the load cell.
Connect the Shore Hardness Probe to the PosiTector SHD Verifier’s Loading Fixture using the supplied Allen wrench.
Apply pressure using the micrometer adjustable stage.
Compare values from the durometer and the Verifier.

line Downloads line

DeFelsko SHDVERIFY PosiTector SHD Verifier - Data Sheet

DeFelsko SHDVERIFY PosiTector SHD Verifier - Instruction Manual

Accessories for DeFelsko Inspection Instruments - Online Catalog

F.A.Q.

Do your instruments require any formal training for use? Do you offer ‘demo’ models?

No. Our instruments are designed for simple operation, feature easy-to-use menus, instruction manuals, and helpful videos. In lieu of demonstration models, we provide unlimited technical support via telephone and/or email, and a limited 30-day money back guarantee.

Is the DeFelsko PosiTector SHD calibrated at the factory?

The DeFelsko PosiTector SHD arrives fully calibrated and ready to measure. A Long-Form Certificate of Calibration traceable to NIST or PTB is included, which documents actual readings taken by your instrument at our calibration laboratory on standards traceable to a national metrology institute. Beware of ‘Certificates’ or ‘Certificates of Conformance’ offered by competitors. These typically do not include actual instrument readings, and are often insufficient to meet common quality requirements.

The included Test Block allows the gage operator to quickly verify correct operation and accuracy of the SHD.

What is the difference between Shore A and Shore D durometers?

DeFelsko PosiTector SHD Shore Hardness Durometers measures the indentation hardness of non-metallic materials such as polymers, elastomers and rubbers. In the corrosion industry, durometers are commonly used to ensure proper curing of thick coatings and pipeline repair wraps.

The two DeFelsko PosiTector SHD models look and operate identically, and vary only in the spring pressure and shape of the intender tip. This allows the two models to accurately measure different hardness ranges:

Shore A (SHDA)- for soft to hard materials such as soft rubber, elastomers, neoprene, silicone, etc.
Shore D (SHDD) - for medium to extra hard materials such as hard rubber, epoxies, hard plastics, PVC, acrylic, etc

Can the PosiTector SHD measure the hardness of metals?

No. Shore Hardness Durometers are designed to measure the indentation hardness of non-metallic materials such as polymers, elastomers and rubbers. Nearly all metals are outside the Shore Hardness scale. The PosiTector BHI Barcol Hardness Impressor is ideal for measuring the hardness of soft metals (aluminum, aluminum alloys, copper, brass, etc.), harder plastics and fiber-reinforced plastics.

Does the PosiTector SHD include a fixture stand?

No. A PosiTector SHD Test Stand is available as an accessory item for both SHD A and SHD D instruments.

What is the minimum thickness of material necessary to measure with the PosiTector SHD?

According to ASTM D2240-15 “Standard Test Method for rubber Property – Durometer Hardness”, the test specimen must be at least 6.0 mm (0.24 inches) thick unless it is known that equivalent test results can be obtained with a thinner specimen. Since in-field use of a Shore durometer can concern testing the hardness of an applied coating with a measured thickness less than 6.0 mm, it is incumbent upon the operator to be aware of both the required coating thickness and its expected hardness for a particular application. Both the coating thickness and expected hardness will be specified by the coating manufacturer. Given the wide variety of coating types extant, DeFelsko has no ability to indicate a minimum coating thickness suitable for testing with our PosiTector SHD.

Does the PosiTector SHD measure Rockwell/Brinell/Barcol hardness?

No. The PosiTector SHD Shore Hardness Durometer measures the Shore indentation hardness of non-metallic materials such as polymers, elastomers and rubbers. DeFelsko also manufactures the PosiTector BHI Barcol Hardness Impressor which is ideal for measuring the hardness of soft metals (aluminum, aluminum alloys, copper, brass, etc.), harder plastics and fiber-reinforced plastics.

How often should the PosiTector probe be recalibrated?

PosiTector probes include a Certificate of Calibration showing traceability to NIST or PTB included (Long Form) with each probe—with no expiry or end date. They have no shelf life, therefore the length of time in the field is not a good indicator for recalibration intervals. Many organizations with quality programs and recertification programs require annual recalibrations, and this is a good starting point for most users. DeFelsko recommends that customers establish calibration intervals based upon their own experience and work environment. Based on our product knowledge, data and customer feedback, a one year calibration interval from the date the instrument was placed in service is a good starting point.
