Rex 3000 Max Hand Durometer RX-3000

See More Durometers

Rex 3000 Max Hand Durometer RX-3000

See More Durometers
Price:
$680.00
    warrenty

    Product Description

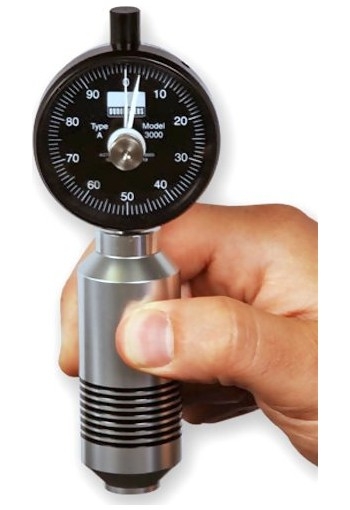

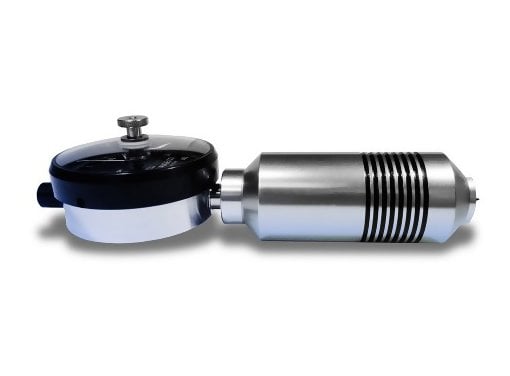

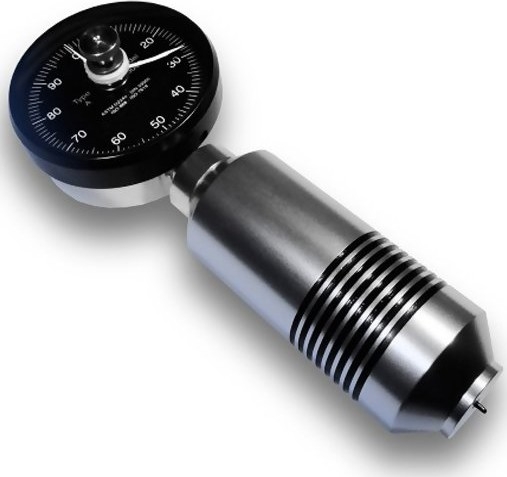

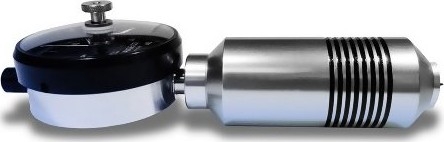

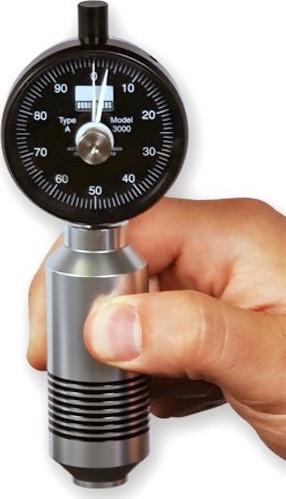

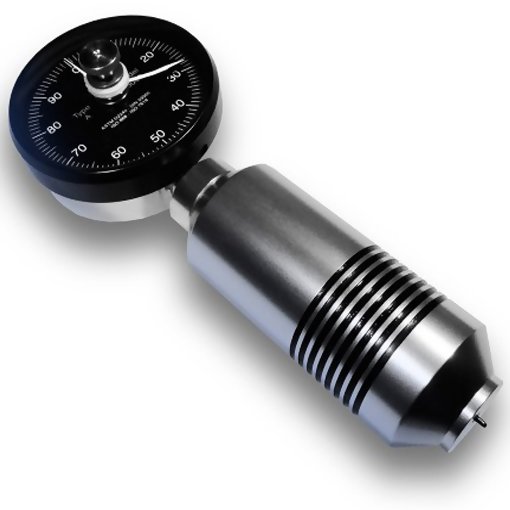

    Rex 3000 Max Hand Durometer RX-3000 with 18mm Diameter Presser Foot
    Available Scales: A, D
    18mm Diameter Presser Foot
    Holds Reading Until Reset

    The Rex 3000 Max Hand Durometer RX-3000 has a max hand and an active hand for observing the creep characteristics of a specimen. What makes the RX-3000 unique is the magnetic-drag maximum reset mechanism. The user simply rotates the reset knob on the front of the gauge to clear the previous reading. The simplicity of the reset mechanism ensures a lifetime of use.


    line
    Kit Contents
    line

    • Rex 3000 Max Hand Durometer RX-3000
    • Instruction Manual

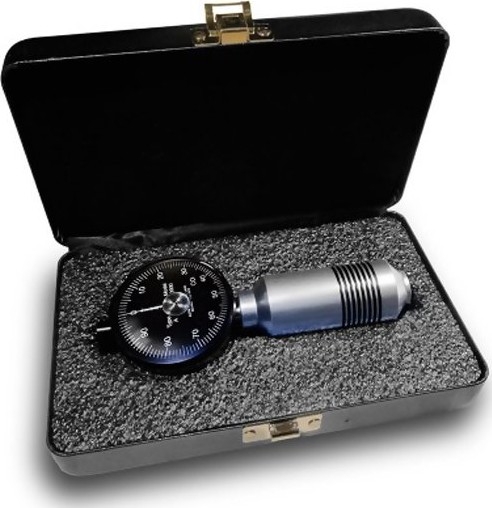

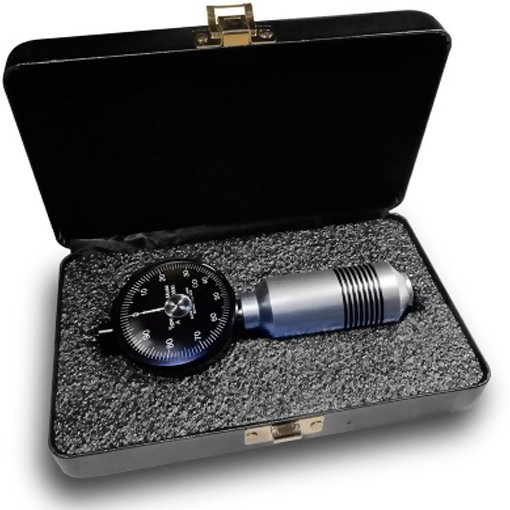

    • Metal carrying case


    line
    Features
    line

    • Large Diameter Grip
    • 18mm Diameter Presser Foot
    • Holds Reading Until Reset
    • High Contrast Low Glare Dial
    • Reads Maximum and Creep
    • Cost Effective, Hand Operated
    • Jeweled Movement
    • Custom Made Carrying Case
    • One Year Warranty
    • ASTM D-2240, DIN 53505, ISO 868, JIS K 7215 & ISO 7619.
    • Includes NIST Calibration Certificate


    line
    Specifications
    line

    Measuring Range0 - 100 units
    Accuracy±1 durometer unit
    Dimensions2.25" x 6.125"H
    Weight11 oz.


    line
    Durometer Test Stands
    line

    We offer a complete line of durometer test stands. The stand, when used in conjunction with a Durometer, eliminates operator error sometimes associated with hand-held durometer testing. Our stands feature a load weight for the proper testing pressure as noted in ASTM D2240, and a quick-lock column for easy adjustment
