Name: Rex 4000 Max Hand Durometer RX-4000
Brand: Rex
SKU: 1209

Rex 4000 Max Hand Durometer RX-4000

See More Durometers

Rex 4000 Max Hand Durometer RX-4000 with 18mm Diameter Presser Foot

Holds Reading Until Reset

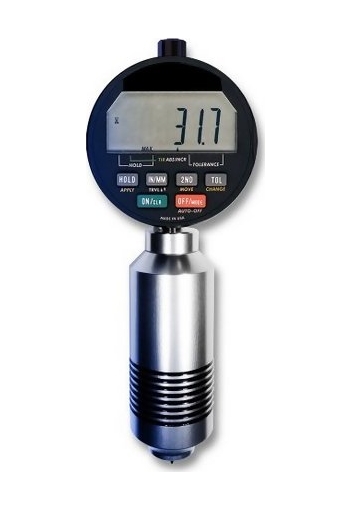

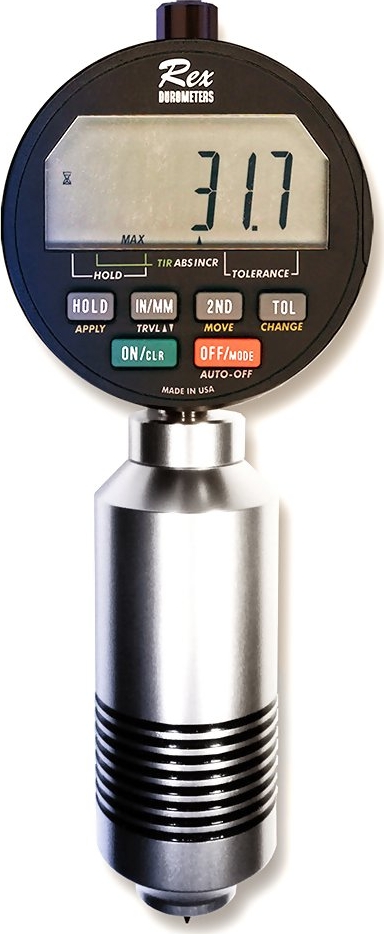

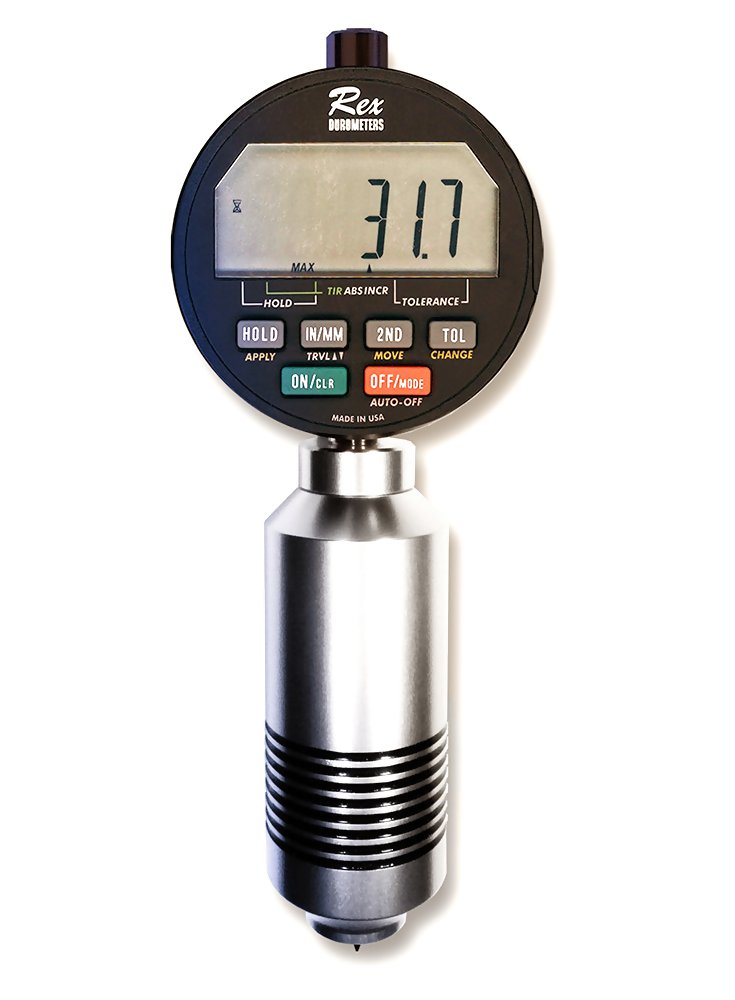

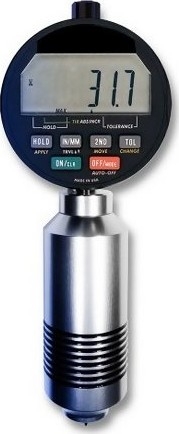

The Rex 4000 Max Hand Durometer RX-4000 is the perfect instrument for use on the production floor or in the lab for measuring the hardness (Durometer) of rubber and plastic parts. It features an over-sized 18mm footer, large LCD display with USB output. Available models include RX-4000-A for Rubber Parts and RX-4000-D for plastic parts.

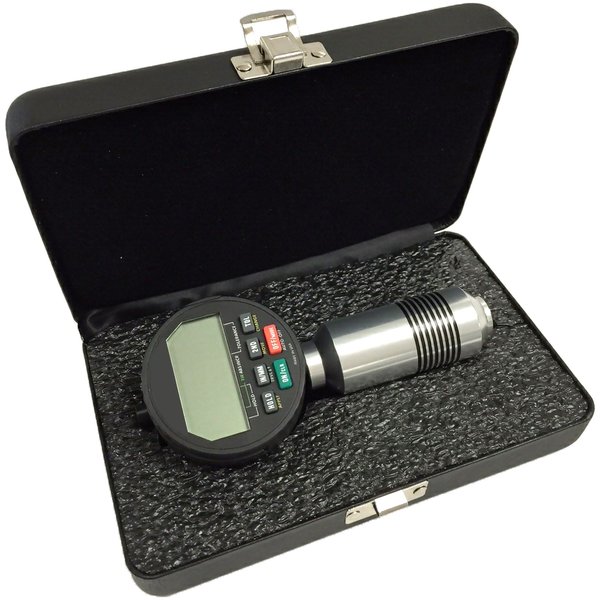

The Model 4000 Digital Durometer is supplied in a foam-fitted carry case along with an NIST-Traceable Calibration Certificate.

line
Kit Contents
line

Rex 4000 Max Hand Durometer RX-4000
NIST-Traceable Calibration Certificate
Instruction Manual
Carrying Case

line
Features
line

Includes NIST Calibration Certificate
Holds Reading Until Reset
Large LCD Display
Maximum Reading Hold
High and low buttons for setting tolerance limits
18mm Diameter Presser Foot
Custom Made Carrying Case
Dial rotates up to 270°
Conforms to ASTM D-2240, DIN 53505, ISO 868 and ISO 7619

line
Specifications
line

Presser Foot	18 mm Diameter
Lower Barrel	1.250" Diameter
Dimensions	2.5"W x 6.125"H (64 x 156 mm)
Weight	200 grams (0.44 lbs)
Standards	Conforms to ASTM D-2240, DIN 53505, ISO 868 and ISO 7619
