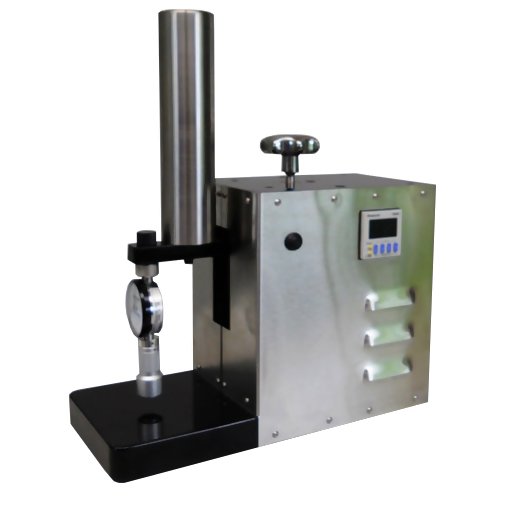

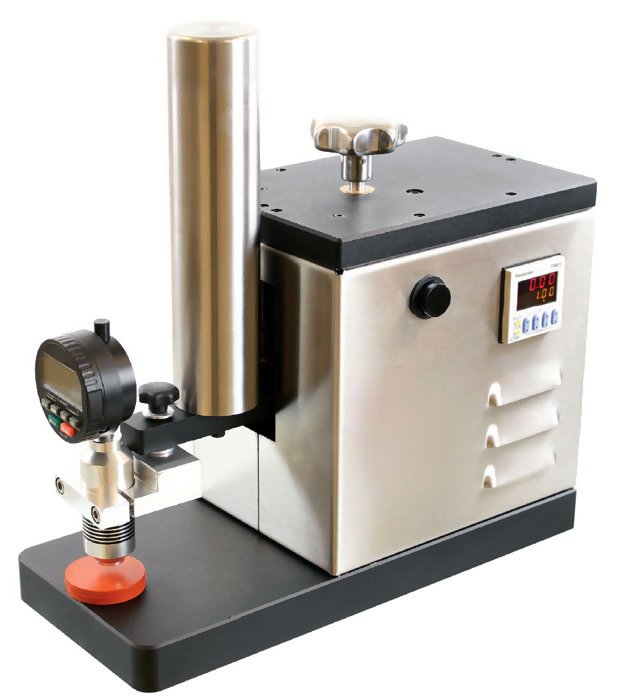

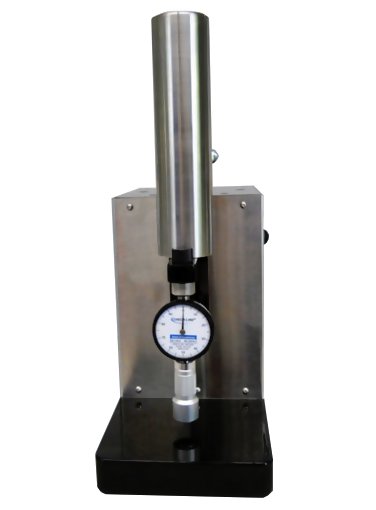

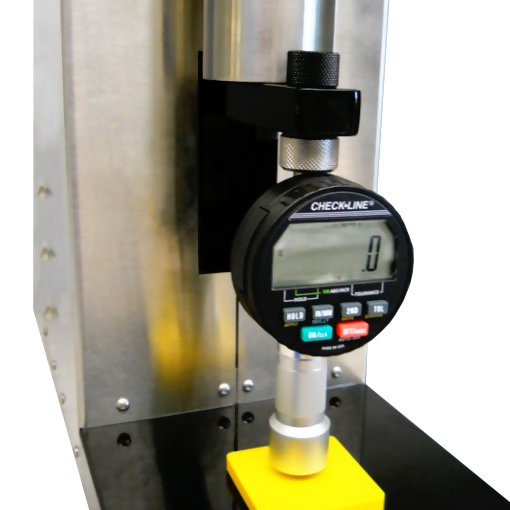

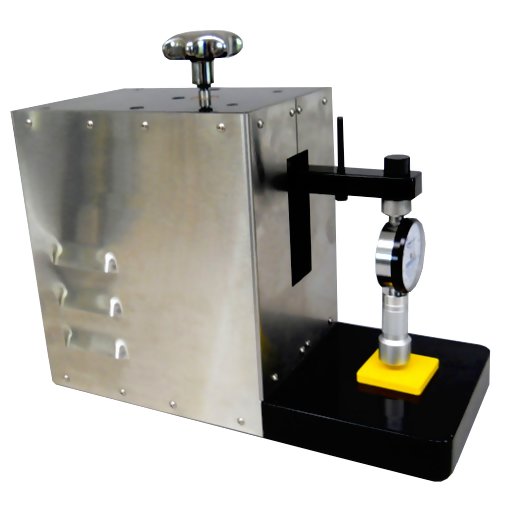

    Rex OS-AUTO Motorized Durometer Test Stand
    Durometer Sold Separately


    The Rex OS-AUTO Motorized Durometer Test Stand provides constant load, controlled rate of descent, and application velocity, through a geared electric motor and braking mechanism that alternately lowers the durometer onto the specimen and then raises it in preparation for the next test.

    This Rex OS-AUTO also provides an electronic timer that can adjust the amount of time the durometer remains in the lowered position (dwell time).

    The durometer and carriage assembly have a mass sufficient for use with Types A, B and O. The incorporation of the large detachable mass is required for testing with Type C, D and DO durometers. This detachable mass can be purchased separately. The OS-AUTO can also be configured for use with durometer Types OO, OOO and OOO-S.

    Adjustment of the durometer for specimen thickness is easily accomplished by a height adjusting knob on the top of the stand.


    line
    Specifications
    line

    Durometer ScalesNo mass: OO, OOO, & OOO-S
    Small mass: A, B, E, & O
    Large mass: C, D, & DO
    Over Dimensions (DxWxH)13 x 6.125 x 9.75 in (356 x 156 x 248 mm)
    Specimen Table Dimensions7 x 6 in (177 x 182 mm)
    Throat Depth3.25 in (83 mm)
    Throat Height3.125 in (79 mm)
    Weight (without additional mass)35 lb (16 kg)
    Specimen ThicknessMinimum: 0.240 in (6 mm) per ASTM D2240
    Maximum: varies with durometer model; ~3 in (75 mm)
    Timer Operation0 through 9999 seconds
    Power Requirements120 VAC 60 Hz | 240 VAC 50 Hz optional
    Operating Temperature73.4 ± 3.6 °F (23.0 ± 2.0 °C)
