Name: Rex OS-AUTO Motorized Durometer Test Stand
Brand: Rex
SKU: 1207

Rex OS-AUTO Motorized Durometer Test Stand

See More Durometers

Rex OS-AUTO Motorized Durometer Test Stand

Durometer Sold Separately

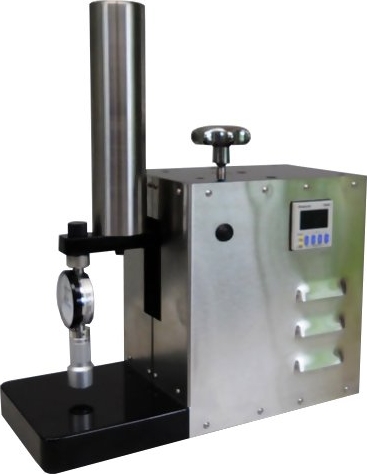

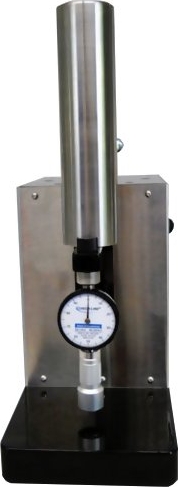

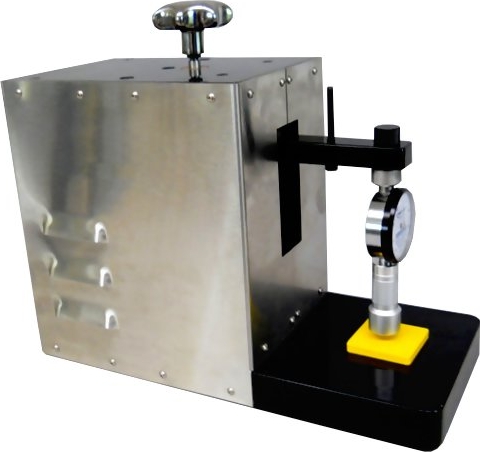

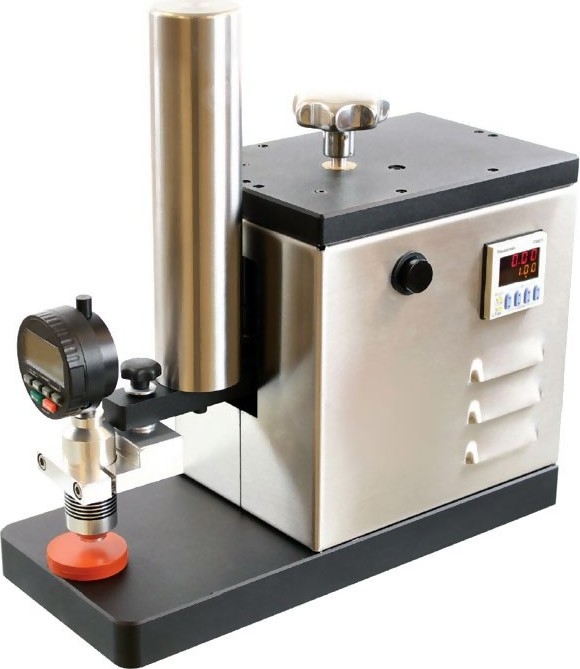

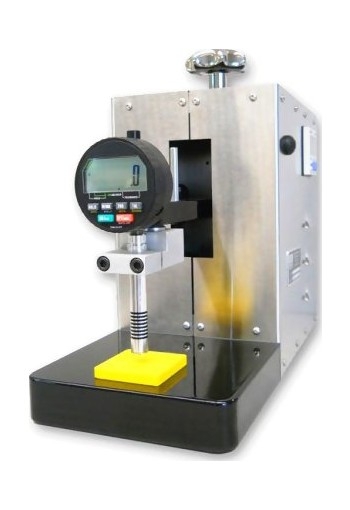

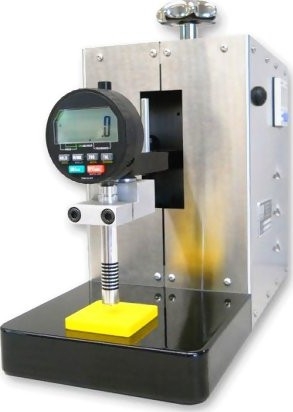

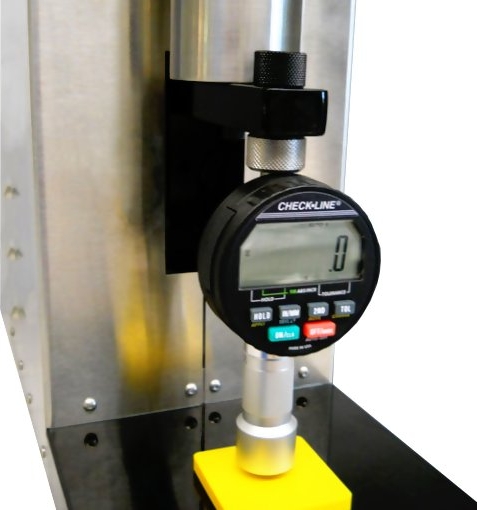

The Rex OS-AUTO Motorized Durometer Test Stand provides constant load, controlled rate of descent, and application velocity, through a geared electric motor and braking mechanism that alternately lowers the durometer onto the specimen and then raises it in preparation for the next test.

This Rex OS-AUTO also provides an electronic timer that can adjust the amount of time the durometer remains in the lowered position (dwell time).

The durometer and carriage assembly have a mass sufficient for use with Types A, B and O. The incorporation of the large detachable mass is required for testing with Type C, D and DO durometers. This detachable mass can be purchased separately. The OS-AUTO can also be configured for use with durometer Types OO, OOO and OOO-S.

Adjustment of the durometer for specimen thickness is easily accomplished by a height adjusting knob on the top of the stand.

line
Specifications
line

Durometer Scales	No mass: OO, OOO, & OOO-S Small mass: A, B, E, & O Large mass: C, D, & DO
Over Dimensions (DxWxH)	13 x 6.125 x 9.75 in (356 x 156 x 248 mm)
Specimen Table Dimensions	7 x 6 in (177 x 182 mm)
Throat Depth	3.25 in (83 mm)
Throat Height	3.125 in (79 mm)
Weight (without additional mass)	35 lb (16 kg)
Specimen Thickness	Minimum: 0.240 in (6 mm) per ASTM D2240 Maximum: varies with durometer model; ~3 in (75 mm)
Timer Operation	0 through 9999 seconds
Power Requirements	120 VAC 60 Hz \| 240 VAC 50 Hz optional
Operating Temperature	73.4 ± 3.6 °F (23.0 ± 2.0 °C)

line
Related Products
line

AD-100
Durometer Tester

Includes NIST-Traceable Calibration Certificate
Conforms to ASTM D-2240, DIN 53505, ISO 868, JIS K 7215 and ISO 7619. Asker C model conforms to JIS K-7312.
18 mm diameter footer provides stable basis for testing and conforms to all International Standards

line

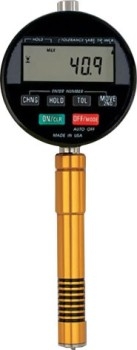

DD-100
