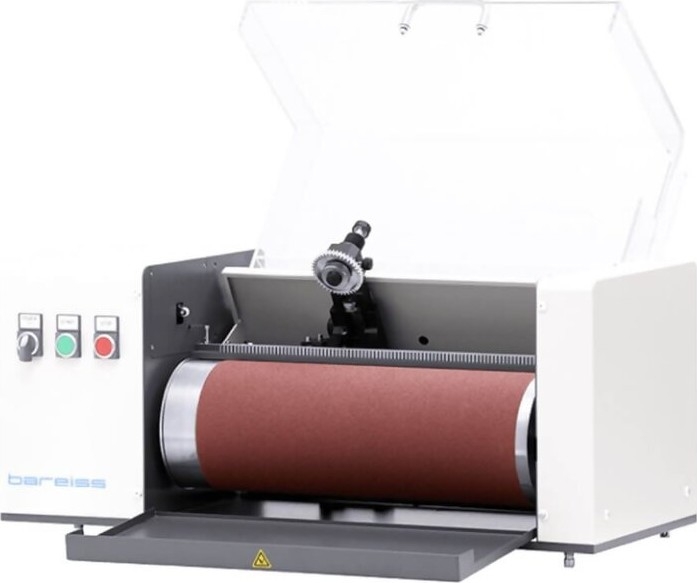

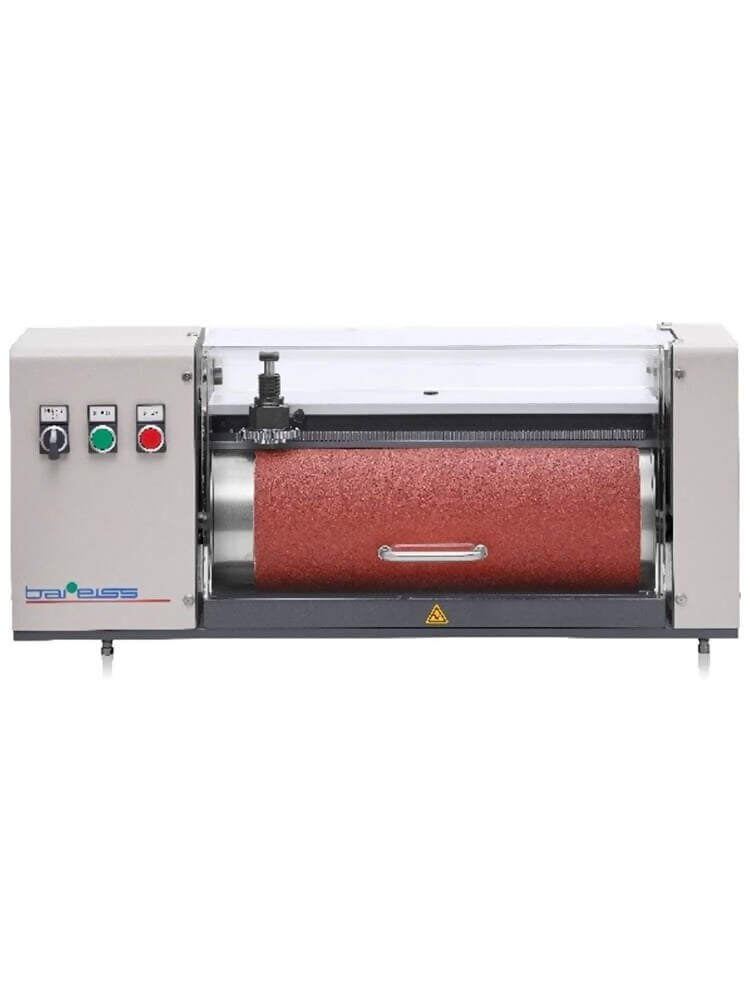

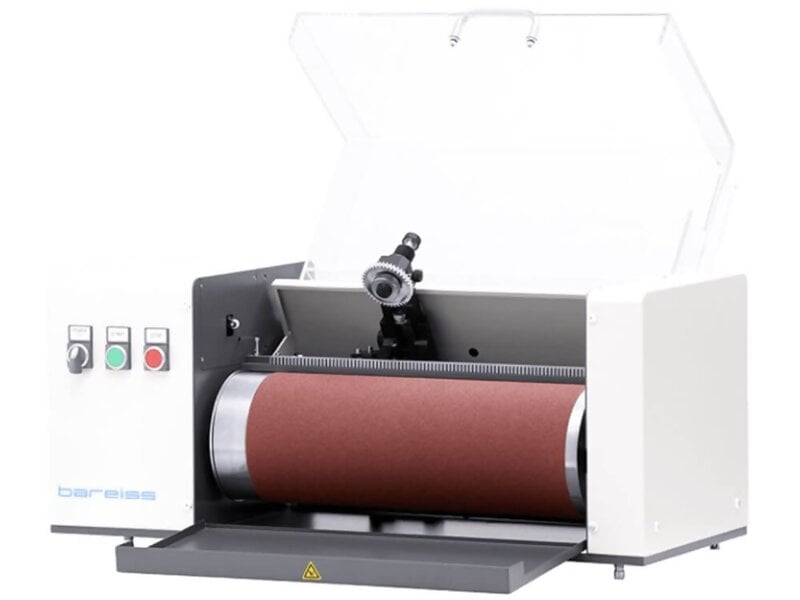

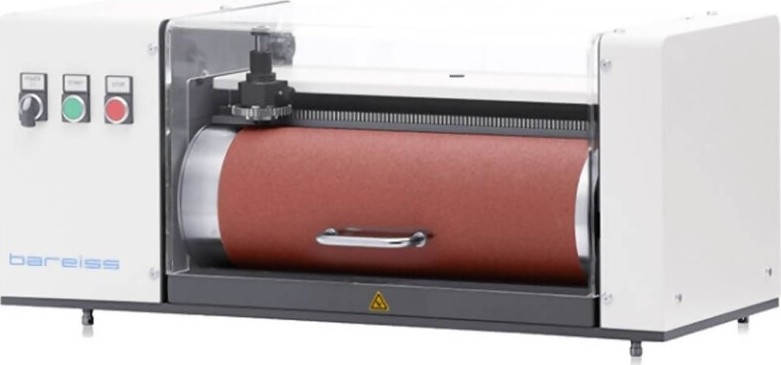

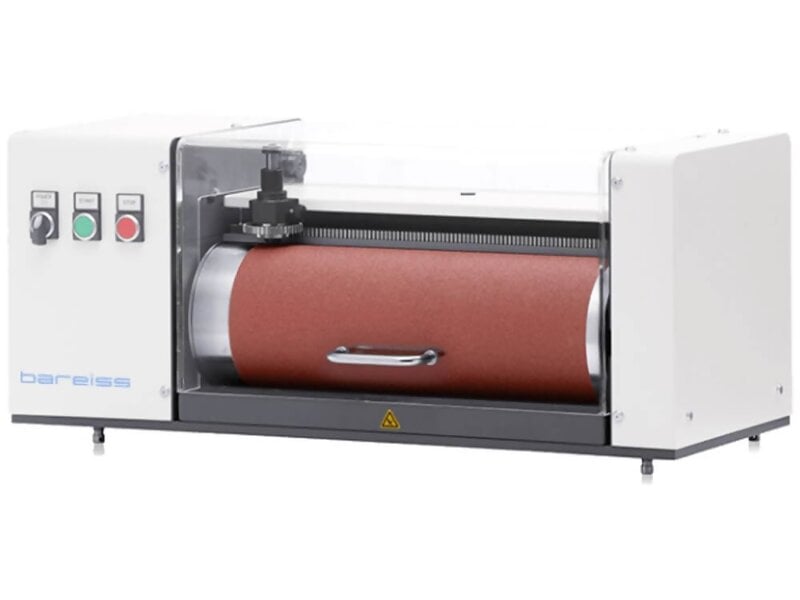

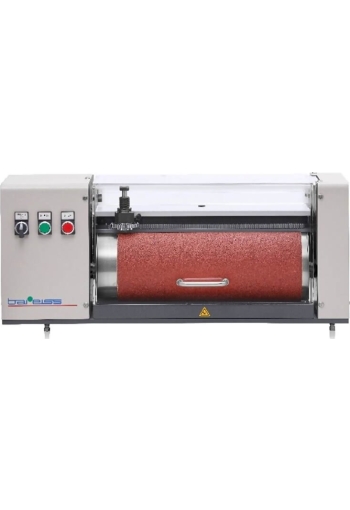

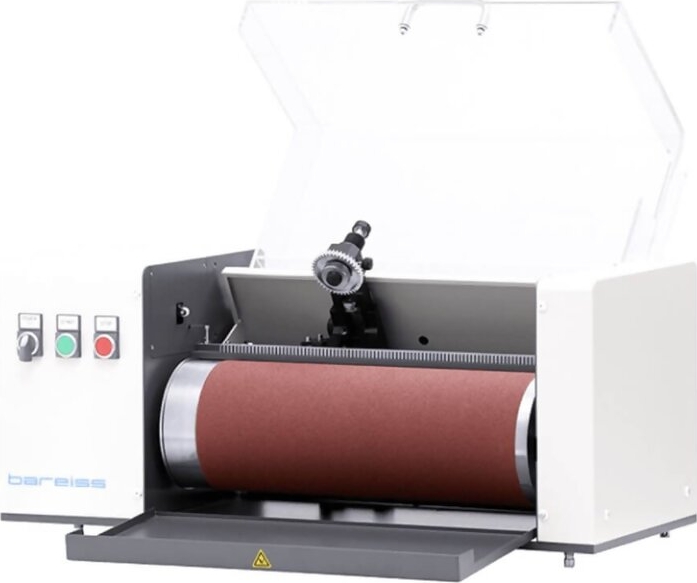

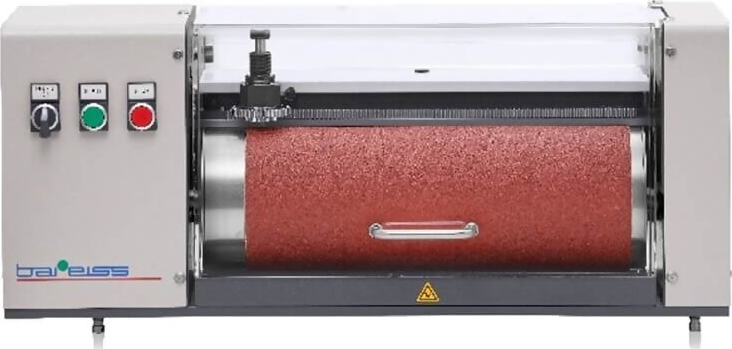

The Bareiss Abrasion Tester Rubber Hardness Abrasion Testing Instruments is involves the determination of volume loss due to the abrasive against a test piece when it rubs over a specified grade of abrasion paper. To evaluate the abrasion resistance of rubber materials like, tires, conveyor belts, automotive belts, hoses, footwear, or a multitude of other products , we need to test them under abrasive conditions. The actual performance of rubber products during their performance cycle cannot always be predicted and therefore the Bareiss Abrasion Tester acts as the auxiliary testing equipment for standard determination of the hardness of elastomers against abrasion

Kit Contents

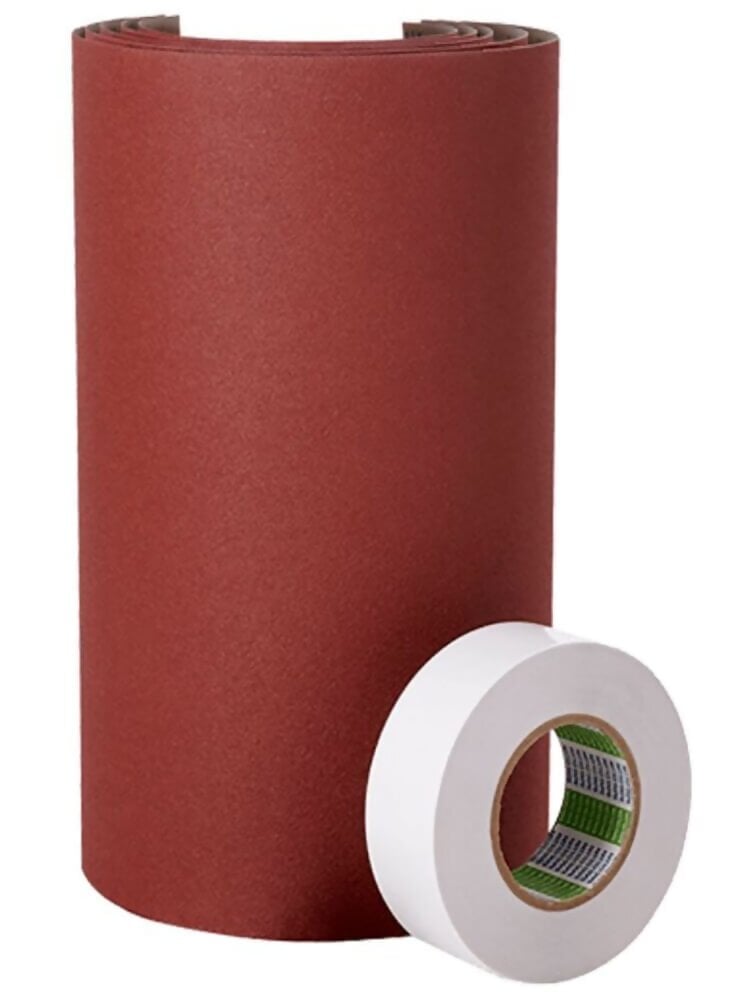

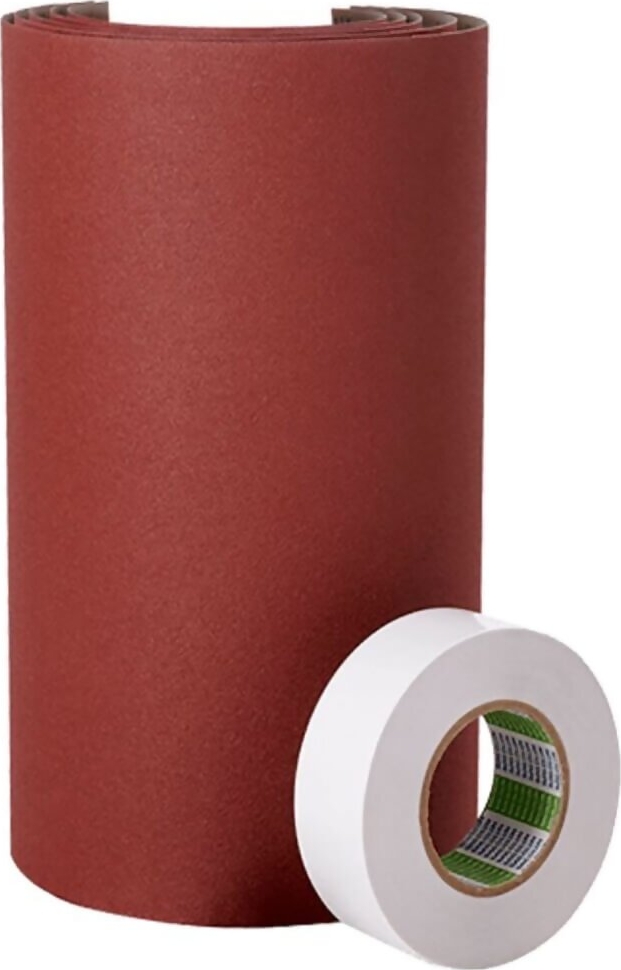

A sample holder (rotating) Various Loading Weights Rotating cylindrical roller Emery sheet Electrical Control Optional: An automatic vacuum cleaner connection and an optional heating module.

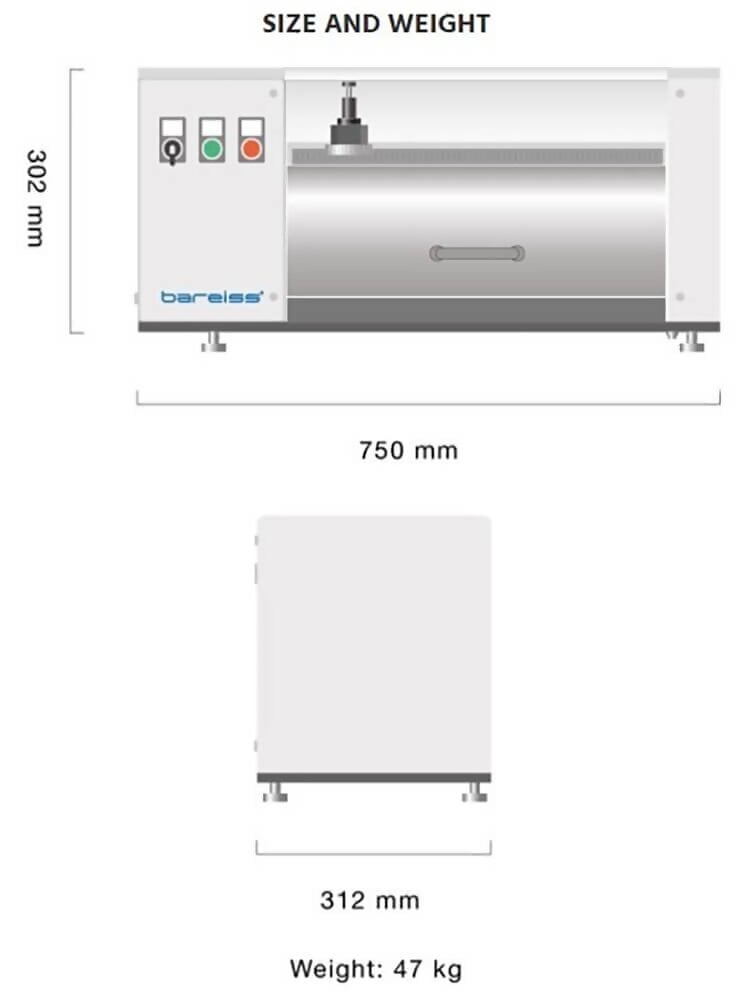

Specifications

Product Usage

1. The abrasion tester is switched on with the POWER rotary switch and the protective hood is opened.
2. The test piece is fixed on the sample holder and the protective hood is closed.
3. The automatic standard abrasion process can be interrupted any time by pressing the STOP button.
4. Start the abrasion process with the START button.
5. After the set abrasion path is traversed, the abrasion tester is switched off automatically, and the protective hood is opened.
6. The sample is taken out from the sample holder is bought back to its base position and the protective hood is closed.
7. Switch off the abrasion tester with the POWER rotary switch after reaching the activated lift and finally, the measuring device moves back to its initial position. The recommended lift is 2.0 mm.

Downloads

Bareiss Abrasion Tester Rubber Hardness Abrasion Testing Instruments - Data Sheet
