Product Description
Model TH170
Portable Hardness Tester for Metals with USB Port
Wide measuring range in HLD and display of converted hardness values in Brinell, Rockwell, Leebs, Vickers and Shore
Test at any angle

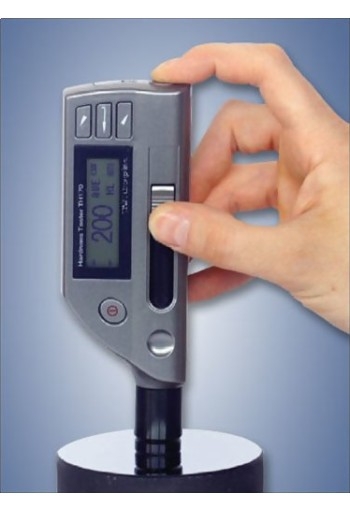

TH170 Metal Hardness Tester

Features of the TH170 Metal Hardness Tester
USB port for connecting to a computer
Includes software for data transfer
User-friendly calibration procedure
Automatic identification of impact test direction
Memory for 270 average data in 9 group files
Upper and lower limit setting
Automatic shut off
Backlight for convenient use in darkness
Battery capacity display
Two (2) AAA 1.5V batteries
Computer software available
Wide measuring range in HLD and direct display of converted hardness values in HB, HRB, HRC, HV and HS
Integrated impact device D: no cables!
Test at any angle
For most metals (see table below)
Optional printer available
Simple handling and low test expenditure
Measuring Ranges
Material
HLD
HRB
HRC
HB
HV
HS
Steel &
cast steel
300-
900
38.4-
99.8
20.0-
68.4
81-
654
81-
955
32.5-
99.5
Cold work
tool steel
300-
840
20.4-
67.1
80-
898
Stainless
steel
300-
800
46.5-
101.7
85-
655
85-
802
Gray cast
iron
360-
660
93-
334
Nodular
cast iron
360-
660
131-
387
Cast
aluminum
174-
560
23.8-
84.6
19-
164
Copper zinc
alloys (brass)
200-
550
13.5-
95.3
40-
173
Copper tin
alloys (bronze)
300-
700
60-
290
Copper
200-
690
45-
315
Complete Kit of the TH170 Metal Hardness Tester
The TH170 portable hardness tester kit includes the TH170 hardness tester with impact device D, standard test block, 1 large and 1 small support rings, cleaning brush, two (2) AAA batteries, software, communication cable, manufacturer's certificate of calibration, instruction manual & carrying case.
Specifications of the TH170 Metal Hardness Tester
Standard impact device:
D integrated
Hardness scales:
HLD, HB, HRC, HRB, HV & HS
Measuring range:
See measuring range table above
Measuring accuracy:
±6HLD of reading at LD=800
Repeatability:
±10HLD
Minimum sample weight:
5kg (11lbs)
(if coupled to solid support)
100g (3.5oz)
Minimum sample thickness:
5mm (0.2")
(if coupled to solid support)
3mm (0.12")
Minimum radius of surface:
30mm (1.2")
(with support rings)
11mm (0.4")
Minimum thickness of
hardened surface:
0.8mm (0.03")
Maximum sample hardness:
900HLD
Automatic calculation:
Average test value
Onboard memory:
270 data in 9 group files
Impact direction:
0º, ±45º, ±90º, Auto
Test tip:
Tungsten carbide
Power supply:
2 x 1.5V AAA batteries
Operating temperature:
0-40ºC (32-104ºF)
Weight:
166g (5.9oz)
Dimensions:
155 x 55 x 25mm (6.1" x 2.1" x 1")
