Horiba IG-410 # 3200190929 Dual Range Gloss Meter / Checker

See More Glossmeters

Horiba IG-410 # 3200190929 Dual Range Gloss Meter / Checker

See More Glossmeters
Price:
$2,599.00
warrenty

Product Description
Horiba IG-410 # 3200190929 Dual Range Gloss Meter / Checker
For ultra high gloss measurement
Dual range checker for Gloss and Ultra High Gloss measurement
Flexible use with its remote probe
Measuring angle 60°
Dual range 0-100 and 0-1000

Horiba IG-410 # 3200190929 Dual range checker for Gloss and Ultra High Gloss measurement Part No. 3200190929

The Horiba IG-410 measures ultra high gloss surfaces such as polished metal. The meter has ten times greater measurement range than the conventional model. Even mirror finishes can be measured too.

Weighing in at only 350g (1.3 lbs), this battery operated instrument is designed to be portable. Fast and reliable measurement by simple one-touch operation. LED light sources give <100,000 hours service so there is no need to exchange these parts due to lifetime.

The Horiba IG-410 has two user-selectable measurement ranges, depending on the sample to be measured. Low gloss samples can be measured using the 0-100 range and high gloss samples can be measured using the 0-1000 range. Two calibration plates are provided to allow the user to follow a simple one-touch calibration procedure to ensure reproducible results.


line
Features
line

  • Latest model Gloss Checker now checks Ultra high gloss surface finishes
  • Compact, lightweight and detachable probe design
  • Dual range extends measurement resolution in the low gloss range


line
Specifications
line

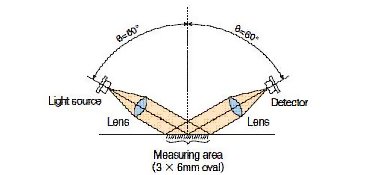

Measuring system

60°

Measuring area

3 x 6mm oval

Light source (Service life)

LED <890nm> (Indefinite)

Detector

SPD <890nm> (Silicon photodiode)

Measuring range

(resolution)

range1 : 0.0~100.0(0.1)

range2 : 0~1000(1)

Repeatability

±1% F.S.

Power source

(Battery life)

R6 (AA) Alkaline x 4

(200 hours or more at continuous operation)

Ambient temperature range

10-40℃

Dimensions

Main body : 75 (W) x 34 (D) x 140 (H) mm
5.5 (W) x 3.0 (D) x 1.3 (H) in
Optical system : 88 (W) x 30 (D) x45 (H))mm
3.5 (W) x 1.2 (D) x 1.8 (H) in

Mass

Approx. 350g (including battery)

Additional functions

  • Automatic calibration
  • Automatic power cut-off
  • Overrange display
  • Display hold

Accessories

  • Standard plate for range 100, 1000
  • AA battery (LRb)
  • Instruction Manual
  • Lense cloth


line
Measurement standard for the gloss value
line

Gloss value 100 is defined as specular reflectance in incident angle θ of the glass of reflectance index 1.567. With incident angle θ = 60°, specular reflectance is 10%,or gloss value 100. Consequently gloss in specular reflectance 100% is calculated as 1000. Reflectance in many polished metals is 50% or more, some are 90% or more. Then measurement range is expanded up to 1000 in IG-410. I adopt IR LED (an HORIBA original method) in a source of light.


line
Downloads
line

Horiba IG-410 Dual Range Gloss Meter 3200190929 - Instruction Manual
