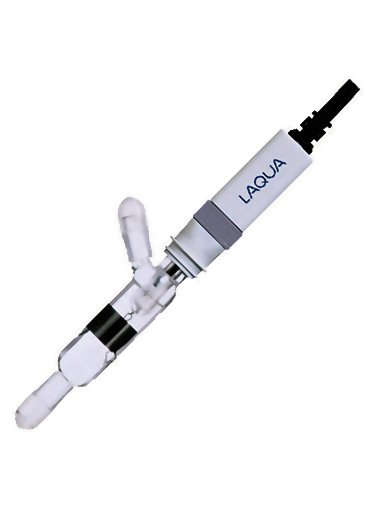

Horiba Laqua 3561-10D Conductivity Cell, Flow Type, # 3014082350

---

For low conductivity water (e.g., pure water)

---

Glass body, Platinum/Platinum black, k=0.1, conductivity cell with integrated temperature sensor

---

The Horiba LAQUA 3553-10D is a flow through design conductivity cell with integrated temperature sensor meant for low conductivity water (e.g., pure water).

HORIBA's superior electrode technology has produced unparalleled tough pH glass bulbs and unique flat sensors. Electrodes have different designs to cater a wide range of applications - from pure water to complex samples.

Features

• For low conductivity water (e.g., pure water)
• Glass body, Platinum/Platinum black, k=0.1, conductivity cell with integrated temperature sensor

Specifications

Cell Constant (cm-1)	0.1
Measurement Range	0.1µS/cm to 10mS/cm
Sample Volume Required (ml)	10
Temperature Sensor	Integrated
Temperature Range	0 to 60 °C
Connectors	BNC, phono jack
Cable Length	1m
Overall Length	143mm
Diameter	18mm
Cell Material	Platinum coated with platinum black, glass body

The actual cell constants are within ±10% of the nominal value.
