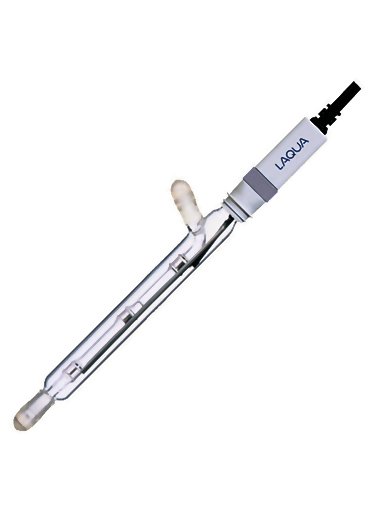

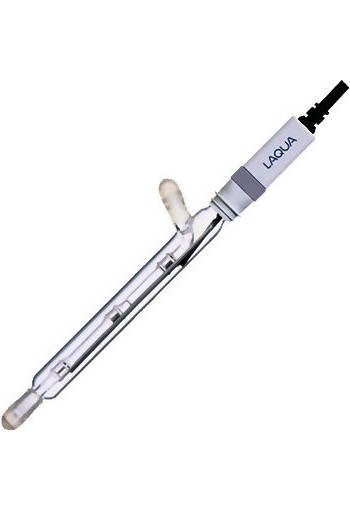

Horiba Laqua 3573-10D Conductivity Cell, Flow Type, # 3014082590

---

For high conductivity water

---

Glass body, Platinum/Platinum black, k=10, conductivity cell

---

The Horiba LAQUA 3573-10D is a flow through design conductivity cell with integrated temperature sensor meant for high conductivity water (e.g., sea water).

HORIBA's superior electrode technology has produced unparalleled tough pH glass bulbs and unique flat sensors. Electrodes have different designs to cater a wide range of applications - from pure water to complex samples.

Features

• For high conductivity water
• Glass body, Platinum/Platinum black, k=10, conductivity cell

Specifications

Cell Constant (cm-1)	10
Measurement Range	1µS/cm to 1S/cm
Sample Volume Required (ml)	4
Temperature Sensor	---
Temperature Range	0 to 60 °C
Connectors	BNC
Cable Length	1m
Overall Length	222mm
Diameter	18mm
Cell Material	Platinum coated with platinum black, glass body

The actual cell constants are within ±10% of the nominal value.

Downloads

Horiba Laqua 3573-10D Conductivity Cell, Flow Type, 3014082590 - Brochure
