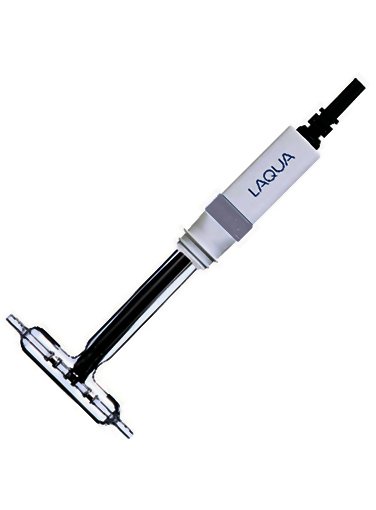

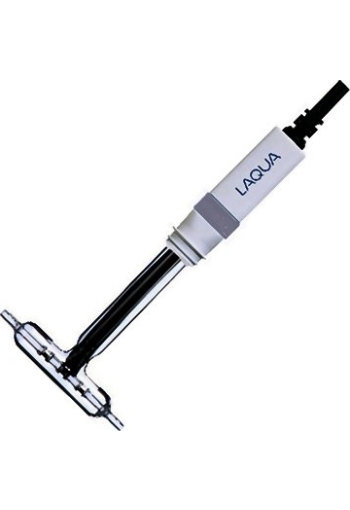

Horiba Laqua 3574-10C Conductivity Cell, Flow Type # 3014082592

---

For column chromatography using a very small amount of sample

---

Glass body, Platinum/Platinum black, k=10, conductivity cell

---

The Horiba LAQUA 3574-10D is a flow through design conductivity cell meant for column chromatography using a very small amount of sample such as a HPLC application.

HORIBA's superior electrode technology has produced unparalleled tough pH glass bulbs and unique flat sensors. Electrodes have different designs to cater a wide range of applications - from pure water to complex samples.

Features

• For column chromatography using a very small amount of sample
• Glass body, Platinum/Platinum black, k=10, conductivity cell

Specifications

Cell Constant (cm-1)	10
Measurement Range	10µS/cm to 100mS/cm
Sample Volume Required (ml)	0.25
Temperature Sensor	---
Temperature Range	0 to 80 °C
Connectors	BNC
Cable Length	1m
Overall Length	136mm
Diameter	66mm
Cell Material	Platinum coated with platinum black, glass body

The actual cell constants are within ±10% of the nominal value.

Downloads

Horiba Laqua 3574-10D Conductivity Cell, Flow Type, 3014082592 - Brochure
