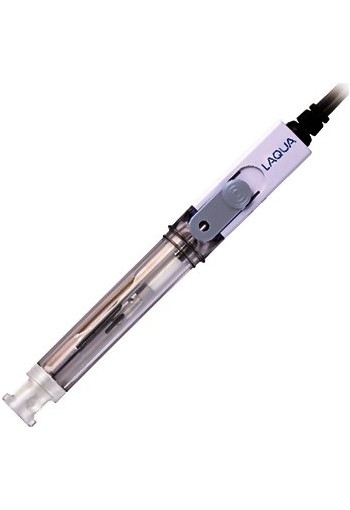

Horiba Laqua 9631-10D 3-in-1 pH Electrode, Hydrofluoric Acid or HF Samples, Plastic Body, # 3200524119

---

pH Range: 2 to 12

---

Temperature Range: 0 to 60 °C

---

Liquid Junction: Ceramic

---

The Horiba Laqua 9631-10D 3-in-1 pH Electrode is a plastic-body, refillable pH electrode with integrated temperature sensor can measure 1% hydrofluoric acid solution (at 25°C, immersed for 1min) for about 1000X. Suitable for drain water measurement after etching process.

Specifications

---

pH Range	2 to 12
Temperature Range	0 to 60 °C
Liquid Junction	Ceramic
Temperature Sensor	Integrated
Cable	1m
Connectors	BNC, phono jack
Overall Length	155mm
Diameter	16mm
Filling Solution	525-3 or 300 (3.33M KCl)

Downloads

---

Horiba Laqua 9631-10D 3-in-1 pH for hydrofluoric acid or HF samples, Plastic Body 3200524119 - Brochure

Horiba Laqua pH Electrode Selection Guide
