This product has been discontinued
Product Description

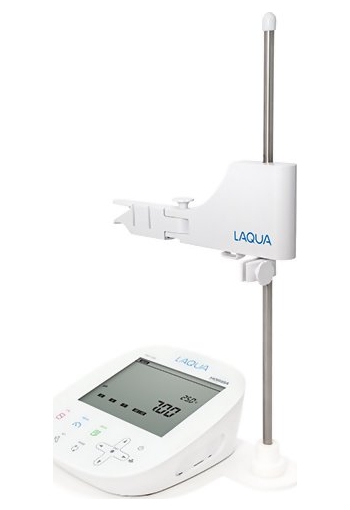

Horiba LAQUA pH-1100 # 3200647407 Benchtop pH / ORP / Temperature Meter
Automatic pH calibration up to 5 points using USA or NIST buffers
Switchable pH resolutions - 0.1, 0.01 pH
Offset and slope display



The HORIBA LAQUA series marries advanced technology with stylish design and an easy-to-use touch screen interface. The Horiba LAQUA pH-1100 was developed as a durable meters offering long term reliability for laboratory professionals. Advanced functionalities and a wide array of electrodes provide high precision measurement with improved response time in a huge variety of applications

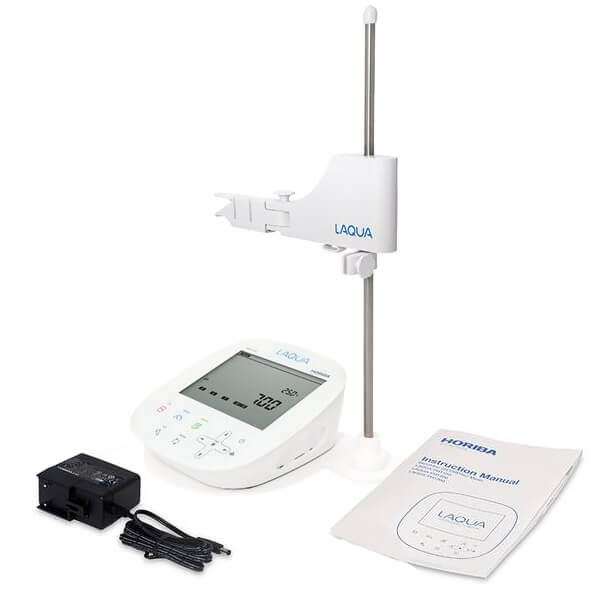

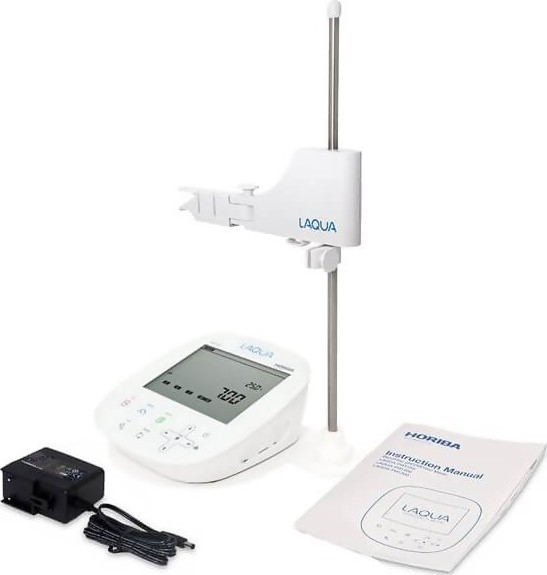

Kit Contents


  • LAQUA pH-1100 Benchtop pH / ORP / Temperature Meter
  • Integrated Electrode Stand
  • Meter Cover
  • AC Power Adaptor
  • Instruction Manual

Features


  • Automatic pH calibration up to 5 points using USA or NIST buffers
  • Switchable pH resolutions - 0.1, 0.01 pH
  • Offset and slope display
  • Automatic / Manual temperature compensation
  • Temperature calibration function
  • Auto-Hold / Auto-Stable measurement
  • Built-in memory can store up to 500 data
  • Custom black and white static LCD
  • RS232C output for connecting the meter to a compatible printer or computer
  • Meter password setting
  • 2 years meter warranty

Specifications


ModelLAQUA PH1100pH/ORP/Temperature (°C)
pH Range-2.00 to 20.00 pH
Resolution0.1 / 0.01 pH
Accuracy± 0.01 pH
Calibration PointsUp to 5
Buffer OptionsUSA / NIST
ORP Range± 2000 mV
Resolution0.1 mV
Accuracy± 0.2 mV
Temperature Range-30.0 to 130.0 °C
Resolution0.1 °C
Accuracy± 0.4 °C
Calibration OptionYes
Memory Data500
Auto-Hold / Auto-StableYes
Offset / Slope DisplayYes (Independent acid and alkaline slopes depending on calibration)
Electrode StatusOn screen display
Diagnostic MessagesYes
DisplayCustom black and white static LCD
InputsBNC, phono, DC sockets
OutputRS232C
Power RequirementAC adaptor, 100-240V, 50/60Hz
Weight500g
Dimensions170(L) x 174(D) x 73(H) mm

Related Products


9615S-10D
Standard ToupH Electrode

  • Quick stability, and reduction of drift
  • No more worries about the timing of your measurement value readings
related
Click image for more info

pH 4.01 Buffer Solution - Model No: 500-4

  • pH 4.01 ±0.02 Buffer Solution at 25°C 250ml
Click image for more info

pH 7.00 Buffer Solution - Model No: 500-7

  • pH 7.00 ±0.02 at 25°C 500ml
Click image for more info

pH 10.01 Buffer Solution - Model No: 500-10

  • pH 10.01 ±0.02 at 25°C 500ml
Click image for more info

Downloads


Horiba LAQUA pH-1100 Benchtop Water Quality pH/ORP/Temperature (°C) Meter with Black/White Screen 3200647407 - Series 1000
Horiba LAQUA pH-1100 Benchtop Water Quality pH/ORP/Temperature (°C) Meter with Black/White Screen 3200647407 - Command-Reference
Horiba LAQUA pH-1100 Benchtop Water Quality pH/ORP/Temperature (°C) Meter with Black/White Screen 3200647407 - Instruction Manual
