Horiba LAQUA pH-1100-S # 3999960176 Benchtop pH / ORP / Temperature Meter Kit
Automatic pH calibration up to 5 points using USA or NIST buffers
Switchable pH resolutions - 0.1, 0.01 pH
Offset and slope display
The HORIBA LAQUA series marries advanced technology with stylish design and an easy-to-use touch screen interface. The Horiba LAQUA pH-1100-S was developed as a durable meter offering long term reliability for laboratory professionals. Advanced functionalities and a wide array of electrodes provide high precision measurement with improved response time in a huge variety of applications.

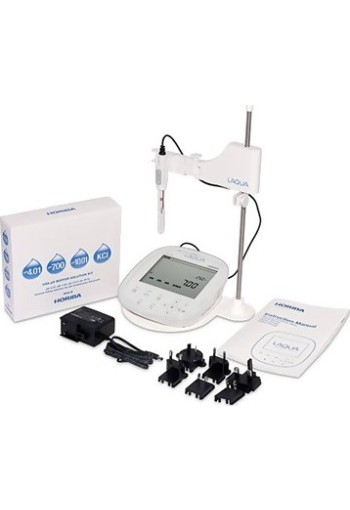

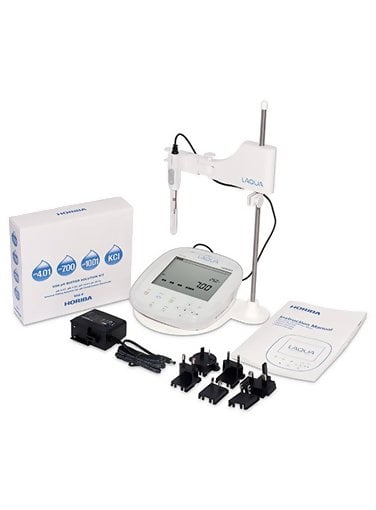

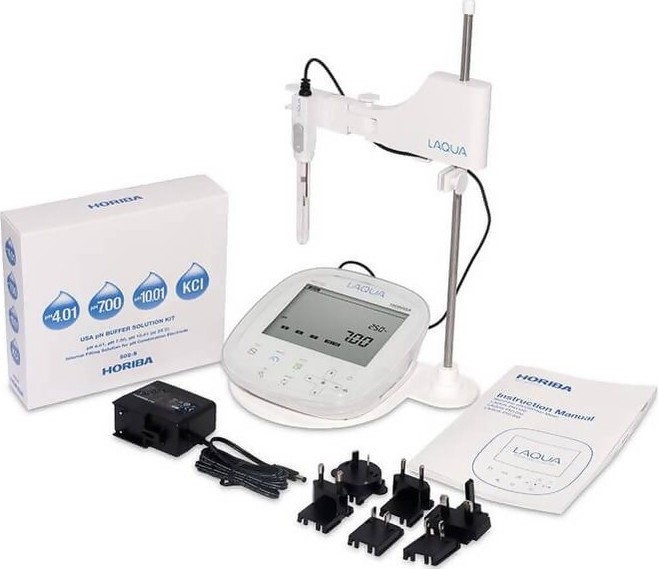

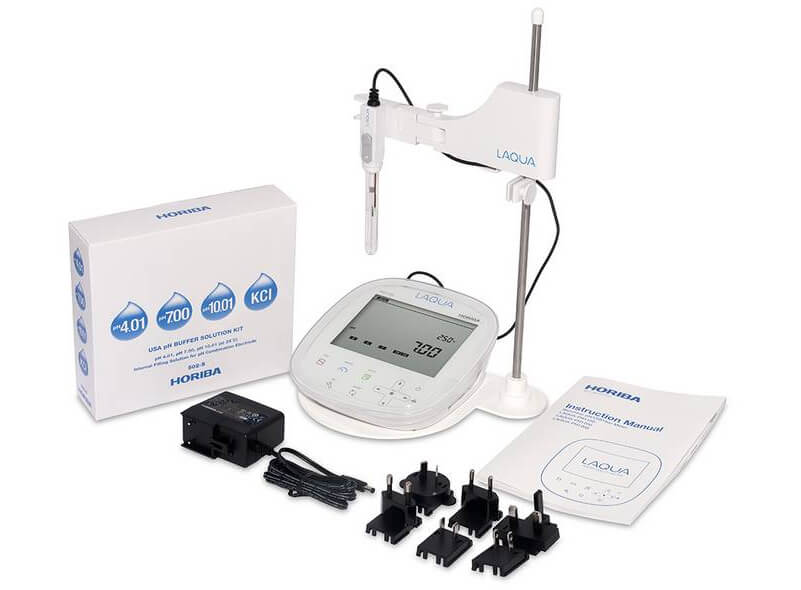

Kit Contents
- LAQUA pH-1100- Benchtop pH / ORP / Temperature Meter
- 9615S-10D ToupH glass-body, refillable pH electrode with integrated temperature sensor
- 502-S USA pH buffers: 4.01, 7.00, 10.01 pH buffers & 3.33 M KCl reference electrolyte (250ml each)
- Data acquisition software in USB flash drive (communication cable is sold separately)
- Integrated Electrode Stand
- Meter Cover
- Power adaptor with 6 plugs (US, EU, UK, Australia / New Zealand, Korea, China)
- Instruction Manual
Features
- Automatic pH calibration up to 5 points using USA or NIST buffers
- Switchable pH resolutions - 0.1, 0.01 pH
- Offset and slope display
- Automatic / Manual temperature compensation
- Temperature calibration function
- Auto-Hold / Auto-Stable measurement
- Built-in memory can store up to 500 data
- Custom black and white static LCD
- RS232C output for connecting the meter to a compatible printer or computer
- Meter password setting
- 2 years meter warranty
Specifications
| Model | LAQUA PH1100pH/ORP/Temperature (°C) |
|---|
| pH Range | -2.00 to 20.00 pH |
| Resolution | 0.1 / 0.01 pH |
| Accuracy | ± 0.01 pH |
| Calibration Points | Up to 5 |
| Buffer Options | USA / NIST |
| ORP Range | ± 2000 mV |
| Resolution | 0.1 mV |
| Accuracy | ± 0.2 mV |
| Temperature Range | -30.0 to 130.0 °C |
| Resolution | 0.1 °C |
| Accuracy | ± 0.4 °C |
| Calibration Option | Yes |
| Memory Data | 500 |
| Auto-Hold / Auto-Stable | Yes |
| Offset / Slope Display | Yes (Independent acid and alkaline slopes depending on calibration) |
| Electrode Status | On screen display |
| Diagnostic Messages | Yes |
| Display | Custom black and white static LCD |
| Inputs | BNC, phono, DC sockets |
| Output | RS232C |
| Power Requirement | AC adaptor, 100-240V, 50/60Hz |
| Weight | 500g |
| Dimensions | 170(L) x 174(D) x 73(H) mm |
Related Products
pH 4.01 Buffer Solution - Model No: 500-4
- pH 4.01 ±0.02 Buffer Solution at 25°C 250ml
pH 7.00 Buffer Solution - Model No: 500-7
- pH 7.00 ±0.02 at 25°C 500ml
pH 10.01 Buffer Solution - Model No: 500-10
- pH 10.01 ±0.02 at 25°C 500ml
