Horiba LAQUA pH-1300 # 3200647409 Benchtop pH / ORP / Ion / Temperature Meter

---

Automatic pH calibration up to 5 points using USA or NIST buffers

---

Switchable pH resolutions - 0.1, 0.01, 0.001 pH

---

Offset and slope display

---

The HORIBA LAQUA series marries advanced technology with stylish design and an easy-to-use touch screen interface. The Horiba LAQUA pH-1300 was developed as a durable meters offering long term reliability for laboratory professionals. Advanced functionalities and a wide array of electrodes provide high precision measurement with improved response time in a huge variety of applications.

Kit Contents

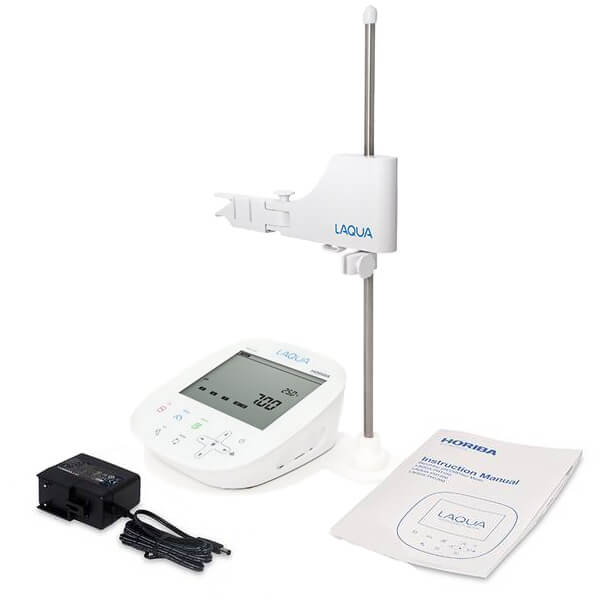

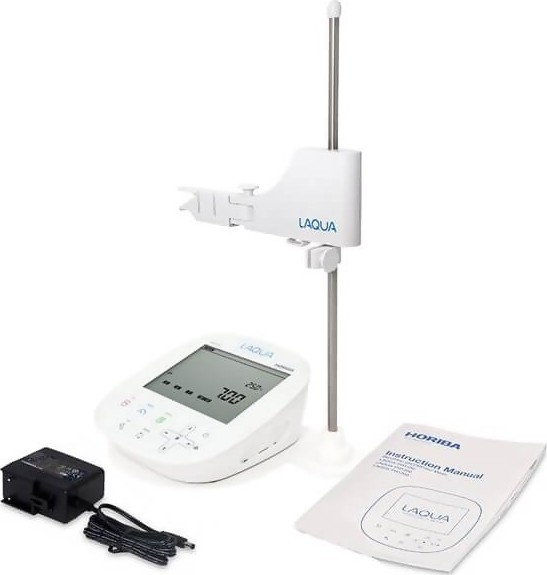

Horiba LAQUA pH-1300 Benchtop pH / ORP / Ion / Temperature Meter Integrated Electrode Stand Meter Cover AC Power Adaptor Instruction Manual

Features

• Automatic pH calibration up to 5 points using USA, NIST, or Custom buffers
• Switchable pH resolutions - 0.1, 0.01, 0.001 pH
• Offset and slope display
• Automatic / Manual temperature compensation
• Temperature calibration function
• Auto-Hold / Auto-Stable measurement
• Auto log data
• Built-in memory can store up to 999 data
• Real-time clock
• Date / time stamping
• Auto shut-off (programmable: 1 to 30 minutes)
• Calibration alarm (programmable: 1 to 400 days)
• Custom black and white static LCD
• RS232C and USB outputs for connecting the meter to a compatible printer or computer
• Meter password setting
• 2 years meter warranty

Specifications

Model	LAQUA PH1300 pH/ORP/Ion/Temperature (°C)
pH Range	-2.000 to 20.000 pH
Resolution	0.1 / 0.01 / 0.001 pH
Accuracy	± 0.003 pH
Calibration Points	Up to 5
Buffer Options	USA / NIST / Custom
ORP Range	± 2000 mV
Resolution	0.1 mV
Accuracy	± 0.2 mV
Ion Range	0.000 µg/L to 9999 g/L
Resolution	4 significant digits
Accuracy	± 0.3% of full scale
Calibration Points	Up to 5
Temperature Range	-30.0 to 130.0 °C
Resolution	0.1 °C
Accuracy	± 0.4 °C
Calibration Option	Yes
Memory Data	999
Auto Log Data	Yes
Real-time Clock	Yes
Date / Time Stamp	Yes
Auto-Shut Off	Yes (Programmable: 1 to 30 minutes)
Auto-Hold / Auto-Stable	Yes
Offset / Slope Display	Yes (Independent acid and alkaline slopes depending on calibration)
Electrode Status	On screen display
Diagnostic Messages	Yes
Calibration Alarm	Yes (Programmable: 1 to 400 days)
Display	Custom black and white static LCD
Inputs	BNC, phono, DC sockets
Output	RS232C, USB
Power Requirement	AC adaptor, 100-240V, 50/60Hz
Weight	500g
Dimensions	170(L) x 174(D) x 73(H) mm
