Horiba LAQUAact pH-130K Portable Water Quality pH / ORP / Ion Meter Kit, # 3999960169
Dual channel, switchable display
Automatic pH calibration up to 5 points using NIST, USA or Custom pH buffers
0.01 pH resolution
Offset and slope display
Ion calibration up to 5 points
The Horiba LAQUAact pH-130K Portable Water Quality pH / ORP / Ion Meter Kit is designed for use with one hand and with an IP67 waterproof rating and shock-resistant casing, the pH-130 meter can be used for long periods, even in dark places, making it ideal for field measurements in rivers and lakes.

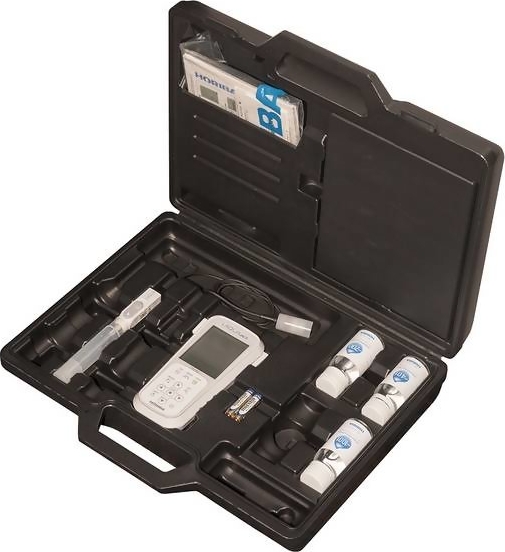

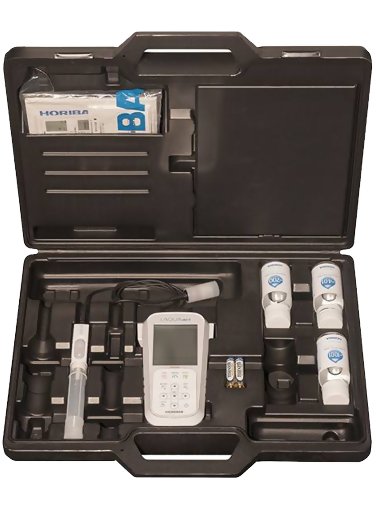

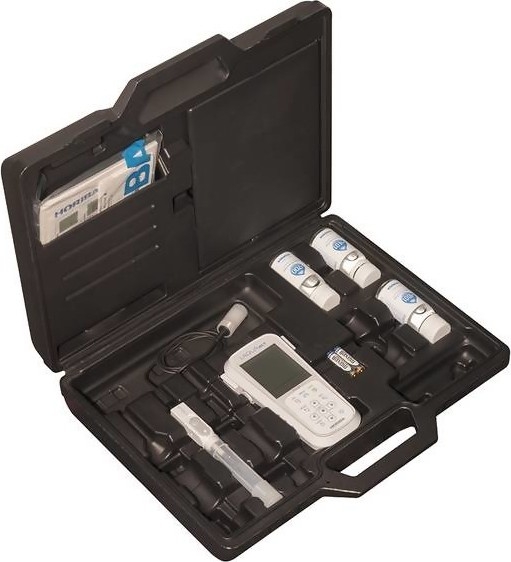

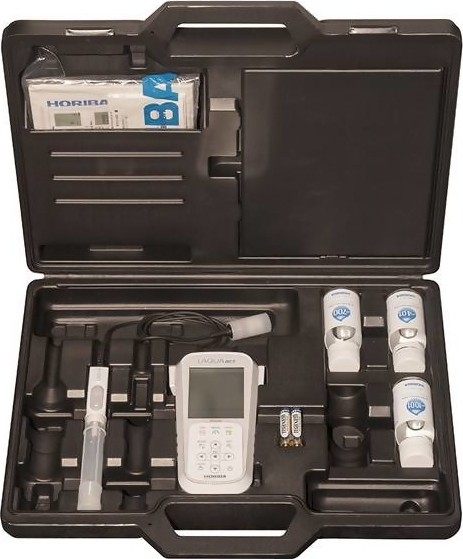

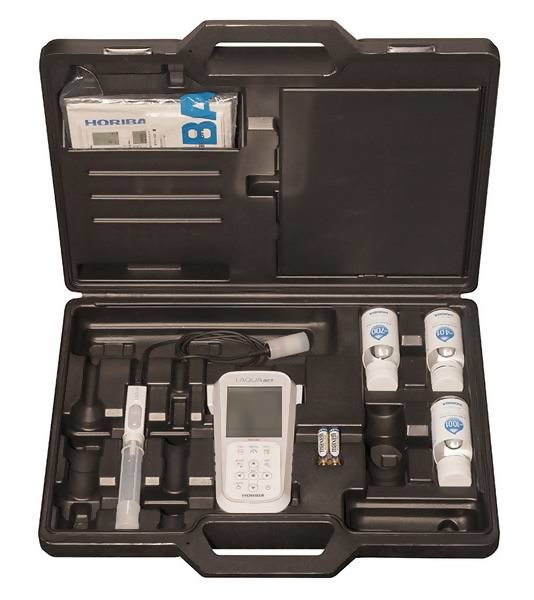

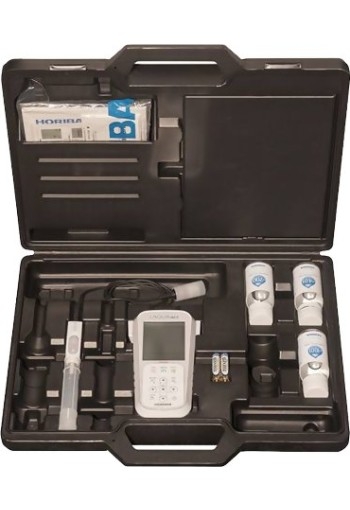

Kit Contents
- Horiba LAQUAact pH-130K Portable Water Quality pH / ORP / Ion Meter Kit
- 9651-10D plastic-body, gel-filled pH electrode with integrated temperature sensor
- 4.01, 7.00, 10.01 pH buffers (60ml each)
- Carrying case
- Instrutions Manual
Features
- Dual channel, switchable display
- Automatic pH calibration up to 5 points using NIST, USA or Custom pH buffers
- 0.01 pH resolution
- Offset and slope display
- Ion calibration up to 5 points
- Automatic / manual temperature compensation
- Temperature calibration function
- Auto log data
- Built-in memory can store up to 1000 data
- Auto-shut off (programmable: 1 to 30 minutes)
- Auto-Hold / Auto-Stable measurement
- Calibration alarm (programmable 1 to 400 days)
- Built-in electrode holder allows 2 electrodes to be attached on both sides of the meter
- Large backlit LCD: 52mm x 64mm
- RS232C output for connecting the meter to a compatible printer or computer
- IP67-rated case: waterproof (withstand 30 mins. immersion in 1m depth of water) and dustproof
- Powered by 2 x AAA (LR03) or Ni-MH rechargeable batteries or power adaptor
- Packaged in new molded carrying case
- 2 years meter warranty

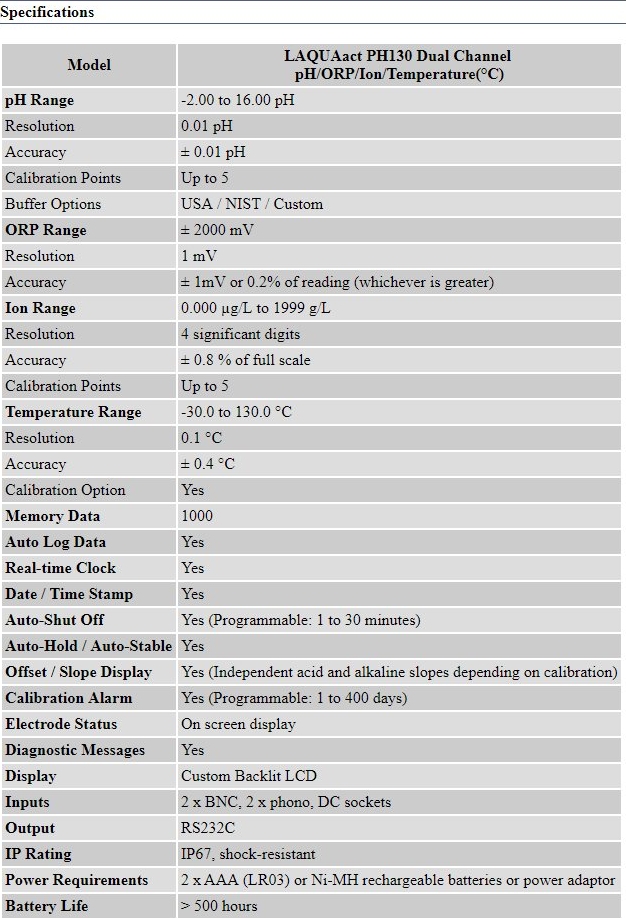

Specifications
| Model | LAQUAact PH130 Dual Channel pH / ORP / Ion / Temperature |
| pH Range | -2.00 to 16.00 pH |
| Resolution | 0.01 pH |
| Accuracy | ± 0.01 pH |
| Calibration Points | Up to 5 |
| Buffer Options | USA, NIST, Custom |
| ORP Range | ± 2000 mV |
| Resolution | 1 mV |
| Accuracy | ± 1mV or 1% of reading (whichever is greater) |
| Ion Range | 0.00 µg/L to 1999 g/L |
| Resolution | 3 significant digits |
| Accuracy | ±0.8% F.S. |
| Calibration Points | Up to 5 |
| Temperature Range | -30.0 to 130.0°C |
| Resolution | 0.1°C |
| Accuracy | ± 0.4°C |
| Calibration Option | Yes |
| Memory Data | 1000 |
| Auto Log Data | Yes |
| Real-time Clock | Yes |
| Date / Time Stamp | Yes |
| Auto-Shut Off | Yes (Programmable: 1 to 30 minutes) |
| Auto-Hold / Auto-Stable | Yes |
| Offset / Slope Display | Yes (Independent acid and alkaline slopes depending on calibration) |
| Calibration Alarm | Yes (Programmable: 1 to 400 days) |
| Electrode Status | On screen display |
| Diagnostic Messages | Yes |
| Display | Custom Backlit LCD |
| Inputs | 2 x BNC, 2 x phono, DC sockets |
| Output | RS232 |
| IP Rating | IP67, shock-resistant |
| Power Requirements | 2 x AAA (LR03) or Ni-MH rechargeable batteries or power adaptor |
| Battery Life | >500 hours |
