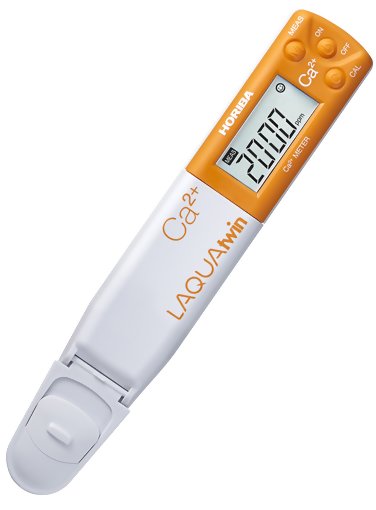

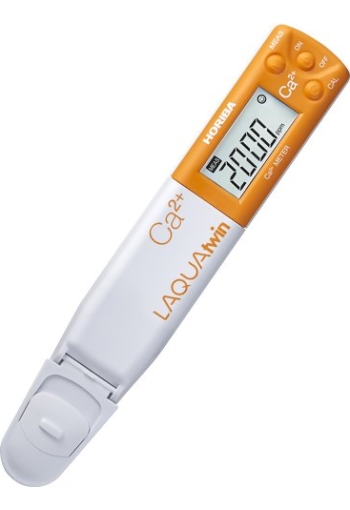

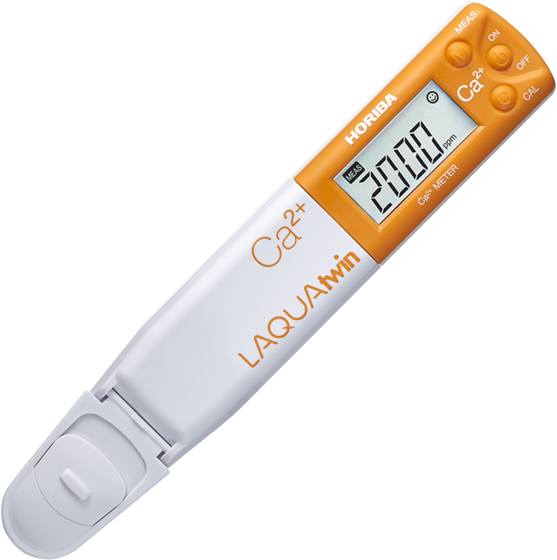

Horiba LAQUAtwin Ca-11 Compact Calcium Ion Meter, # 3200689161
Minimum sample volume: 0.3ml (0.05ml with sampling sheet B)
Up to 2 calibration points
Auto standard recognition: 150 & 2000ppm sodium (default)
Changeable high and low calibration values
Multiplication compensation: 0.01 to 9.90
The Horiba LAQUAtwin Ca-11 Compact Calcium Ion Meter is the only pocket meter that directly measures calcium ion concentration in 0.3ml sample (or 0.05ml sample with sampling sheet B). Unique sensor allows measurement of viscous liquids, solids, and even powder samples.No need for a beaker to calibrate your meter or measure a sample. Just place few drops of the standard or sample onto the Horiba LAQUAtwin Ca-11 flat sensor. This procedure saves you time and prevents wasting your precious sample.

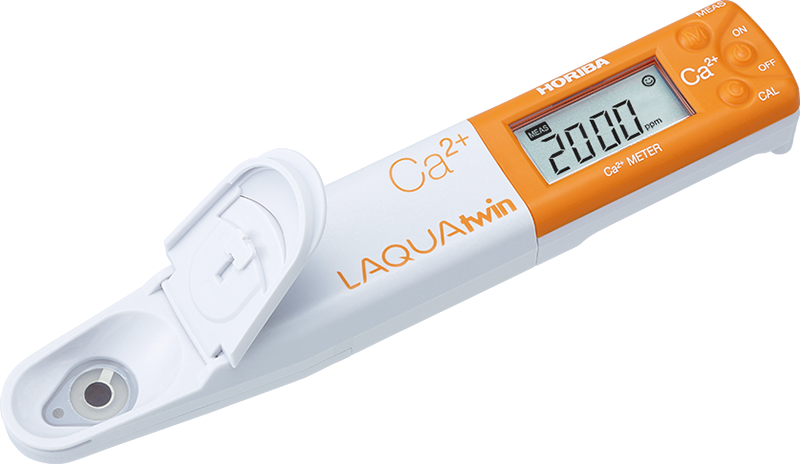

HORIBA's unique compact meter integrates the electrode, display and sample container to enable simple, effective on-site testing by direct measurement from a single drop.
Features
- Minimum sample volume: 0.3ml (0.05ml with sampling sheet B)
- Up to 2 calibration points
- Auto standard recognition: 150 & 2000ppm calcium (default)
- Changeable high and low calibration values
- Multiplication compensation: 0.01 to 9.90
- Temperature and mV display
- Temperature calibration: 5 to 40.0 ºC
- Auto hold / auto stable measurement
- Auto power off: 30 mins.
- Low battery indicator
- IP67 Rating dust & waterproof
- Replaceable sensor
- 400 Hours battery life: continuous use without backlight
- Material: ABS epoxy
- Display: custom (monochrome) digital LCD with backlight
- Operating conditions: 5 to 40 ºC, 85% or less relative humidity
- Warranty: 2 years - meter, 6 months - sensor
- Packed in handy carrying case
- Supplied with 150 & 2000ppm calcium standards, 5 x sampling sheets B, 2 x CR2032 batteries, dropper, instruction and quick manuals

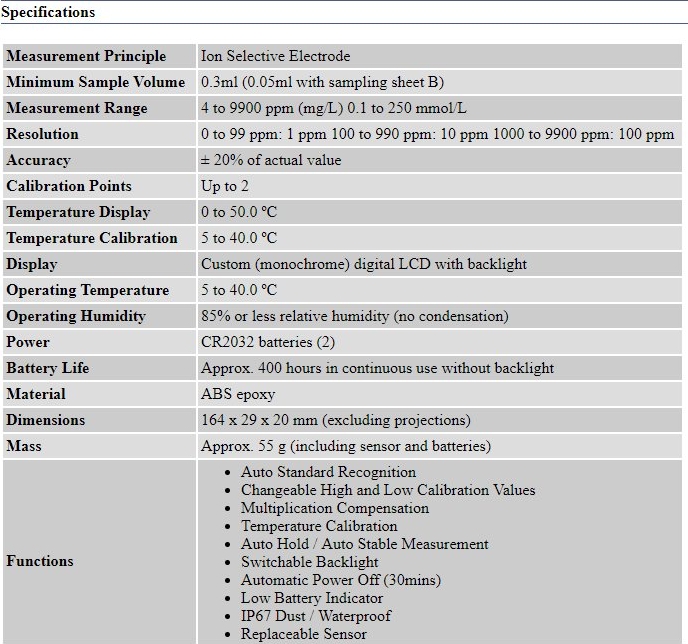

Specifications
| Measurement Principle | Ion Selective Electrode |
| Minimum Sample Volume | 0.3ml (0.05ml with sampling sheet B) |
| Measurement Range | 4 to 9900 ppm (mg/L)0.1 to 250 mmol/L |
| Resolution | 0 to 99 ppm: 1 ppm100 to 990 ppm: 10 ppm1000 to 9900 ppm: 100 ppm |
| Accuracy | ± 20% of actual value |
| Calibration Points | Up to 2 |
| Temperature Display | 0 to 50.0 ºC |
| Temperature Calibration | 5 to 40.0 ºC |
| Display | Custom (monochrome) digital LCD with backlight |
| Operating Temperature | 5 to 40.0 ºC |
| Operating Humidity | 85% or less relative humidity (no condensation) |
| Power | CR2032 batteries (2) |
| Battery Life | Approx. 400 hours in continuous use without backlight |
| Material | ABS epoxy |
| Dimensions | 164 x 29 x 20 mm (excluding projections) |
| Mass | Approx. 55 g (including sensor and batteries) |
| Functions | Auto Standard Recognition
Changeable High and Low Calibration Values
Multiplication Compensation
Temperature Calibration
Auto Hold / Auto Stable Measurement
Switchable Backlight
Automatic Power Off (30mins)
Low Battery Indicator
IP67 Dust / Waterproof
Replaceable Sensor |
