2 calibration points
Auto standard recognition
Auto hold / auto stable measurement
Milk fever, or Sub Clinical Hypocalcemia (SCH) is a significant problem with dairy cows. Total calcium levels in the cows’ blood drop after lactation. By measuring the ionized calcium levels of the blood directly cow side, the treatment can start sooner and is more effective. The new LAQUAtwin CA-11C has been specially developed for cow side measurement of ionized calcium in blood. Ionized calcium reflects more accurately the current calcemic blood situation compared to total blood calcium as it equals the free available calcium ions.

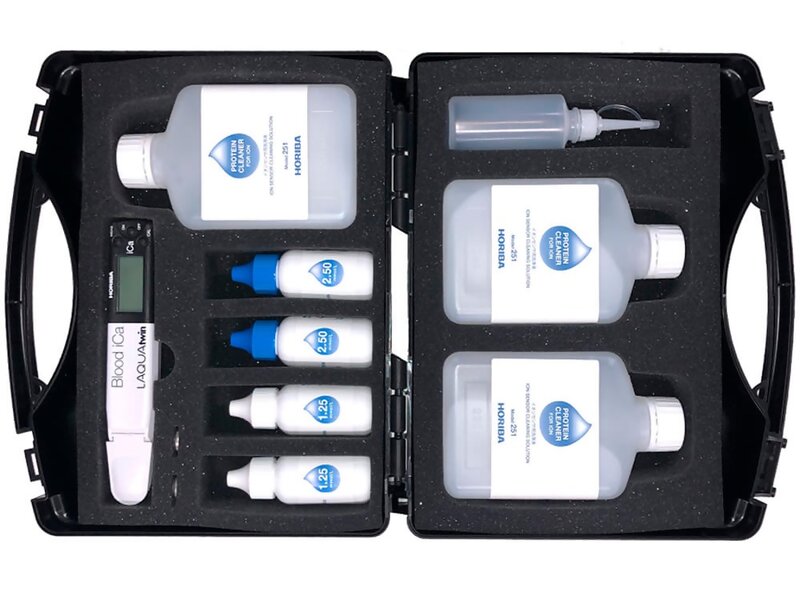

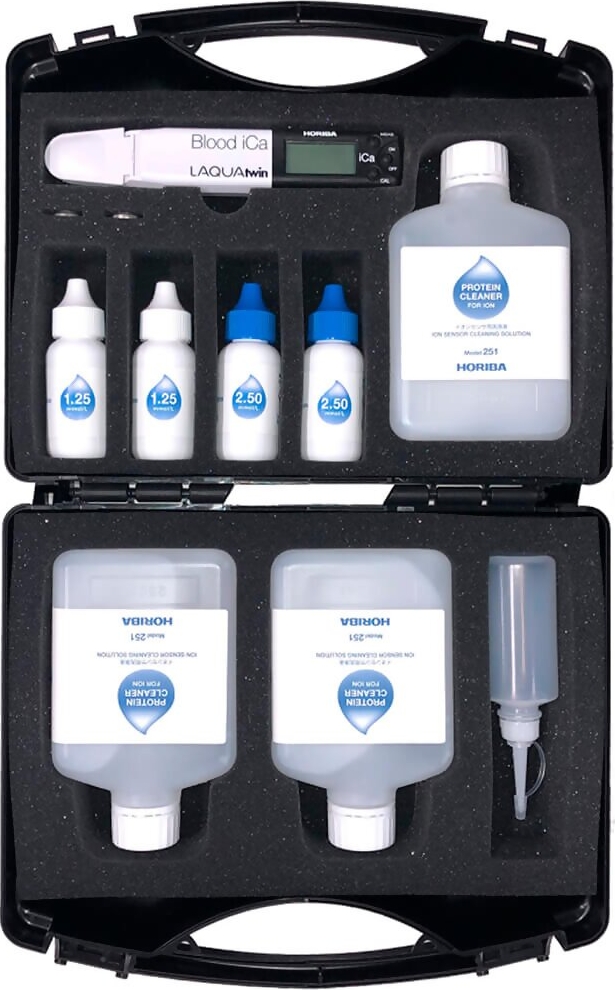

Kit Contents

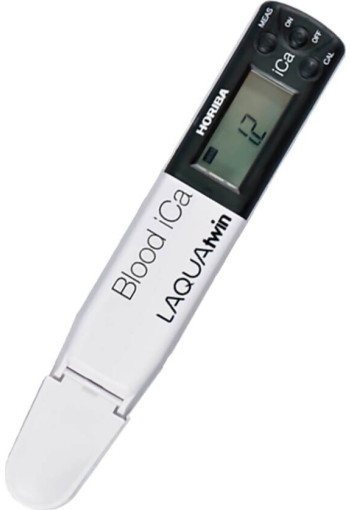

- Horiba LAQUATwin meter Ca-11C bovine blood Calcium meter # 3200772940
- Sensor S051
- 2 - Batteries (CR2032)

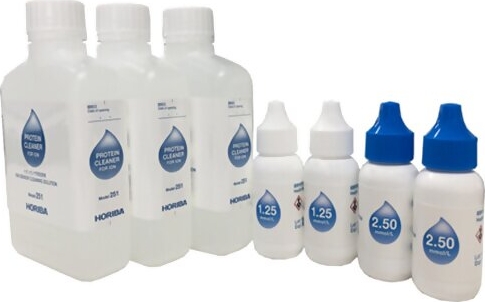

- 2 - Y052L (1.25 mmol/L) 25 mL bottles
- 2 - Y052H (2.50 mmol/L) 25 mL bottles
- 3 - #251 Cleaning solution, 250 mL bottles
- Wash bottle for cleaning solution
- Instruction Manual
- Quick Manual
- Carrying case
Features
- Minimum sample volume: 0.3ml
- 2 calibration points
- Auto standard recognition
- Temperature calibration: 5 to 40.0 ºC
- Auto hold / auto stable measurement
- Auto power off: 30 mins.
- Low battery indicator
- IP67 Rating dust & waterproof
- Replaceable sensor
- Material: ABS epoxy
- Display: custom (monochrome) digital LCD with backlight
- Operating conditions: 5 to 40 ºC, 85% or less relative humidity
- Warranty: 2 years - meter, 6 months - sensor
- Supplied with accessories (see specifications for more details)
Specifications
| Measurement Principle | Ion Selective Electrode |
| Minimum Sample Volume | 0.3 ml |
| Measurement Range | 0.1～5.0 mmol/L |
| Resolution | 0.1 mmol/L |
| Accuracy | ±20% of reading value |
| Calibration Points | 2 points （1.25 mmol/L and 2.50 mmol/L） |
| Display | Custom (monochrome) digital LCD with backlight |
| Operating Temperature | 5 to 40.0 ºC |
| Operating Humidity | 85% or less relative humidity (no condensation) |
| Power | CR2032 batteries (2) |
| Material | ABS epoxy |
| Dimensions | 164 x 29 x 20 mm (excluding projections) |
| Mass | Approx. 55 g (including sensor and batteries) |
| Functions | Auto Standard Recognition
Auto Hold / Auto Stable Measurement
Automatic Power Off (30mins)
Low Battery Indicator
IP67 Dust / Waterproof
Replaceable Sensor |
