Horiba LAQUAtwin Salt-22 NaCl Compact Ion Meter, # 3200689158
Minimum sample volume: 0.3ml (0.05ml with sampling sheet B)
Salinity, mV, and temperature display
Up to 2 calibration points
Auto calibration
Auto standard recognition: 0.5 & 5.0% NaCl (default)

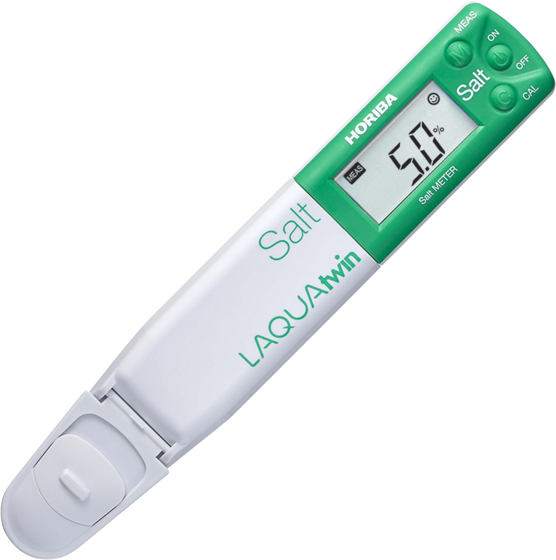

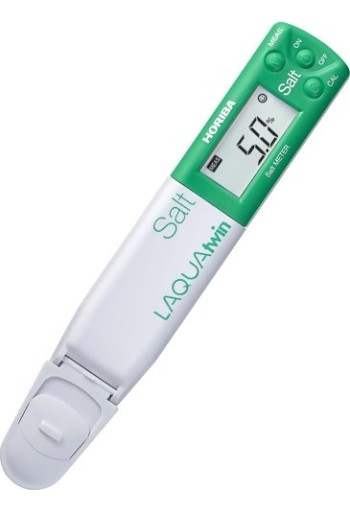

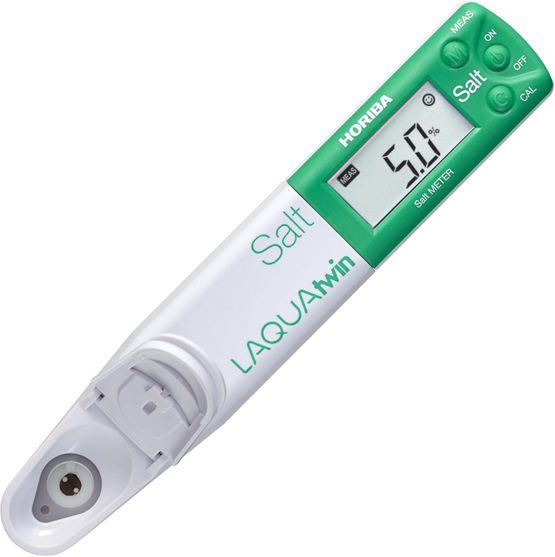

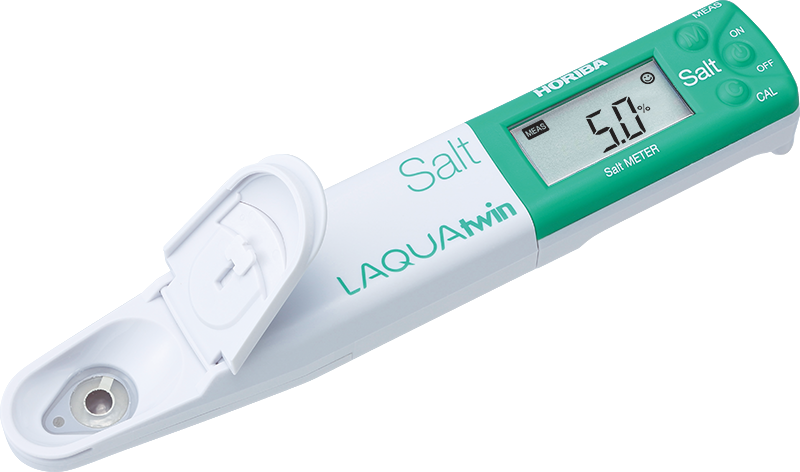

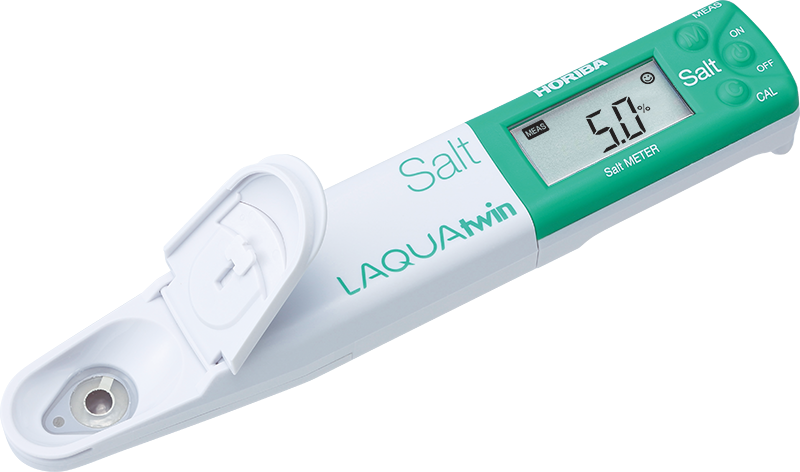

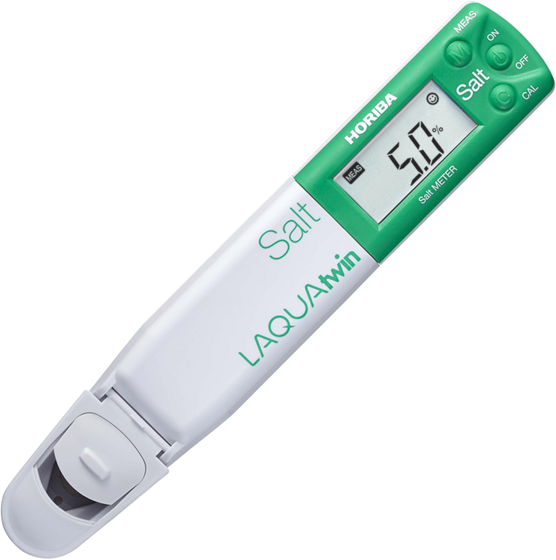

The Horiba LAQUAtwin Salt-22 NaCI Compact Ion Meter is the only pocket meter that directly measures sodium ion concentration in 0.3ml sample (or 0.05ml sample with sampling sheet B) and converts it into salinity or NaCl salt concentration.No need for a beaker to calibrate the meter or measure a sample. Just place few drops of the standard or sample onto the Horiba LAQUAtwin Salt-22 sensor. This procedure saves you time and prevents wasting your precious sample.
HORIBA's unique compact meter integrates the electrode, display and sample container to enable simple, effective on-site testing by direct measurement from a single drop.
Features
- Minimum sample volume: 0.3ml (0.05ml with sampling sheet B)
- Salinity, mV, and temperature display
- Up to 2 calibration points
- Auto calibration
- Auto standard recognition: 0.5 & 5.0% NaCl (default)
- Changeable high and low calibration values
- Temperature calibration: 5 to 40.0 ºC
- Auto stable / auto hold measurement
- Auto power off: 30 mins.
- Low battery indicator
- IP67 Rating dust & waterproof
- Replaceable sensor
- 400 Hours battery life: continuous use without backlight
- Material: ABS epoxy
- Display: custom (monochrome) digital LCD with backlight
- Operating conditions: 5 to 40 ºC, 85% or less relative humidity
- Warranty: 2 years - meter; 6 months - sensor
- Packed in handy carrying case
- Supplied with 0.5% & 5.0% NaCl standards (14ml each), 5 x sampling sheets B, 2 x CR2032 batteries, dropper, instruction and quick manuals

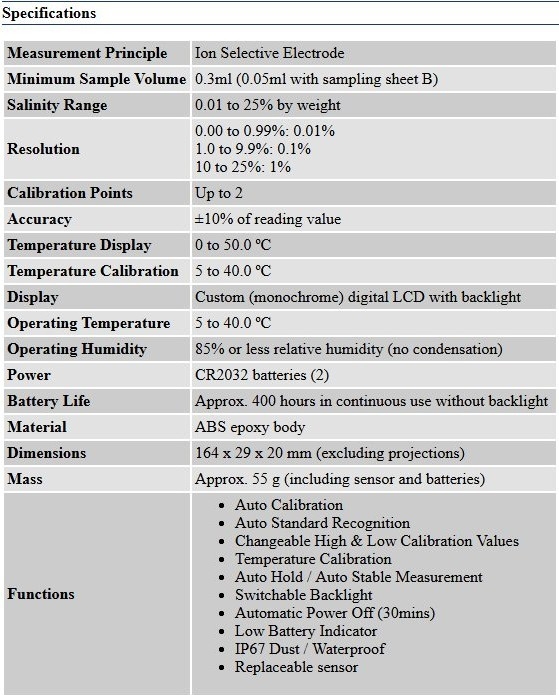

Specifications
| Measurement Principle | Ion Selective Electrode |
| Minimum Sample Volume | 0.3ml (0.05ml with sampling sheet B) |
| Salinity Range | 0.01 to 25% by weight |
| Resolution | 0.00 to 0.99%: 0.01%
1.0 to 9.9%: 0.1%
10 to 25%: 1% |
| Calibration Points | Up to 2 |
| Accuracy | ±10% of reading value |
| Temperature Display | 0 to 50.0 ºC |
| Temperature Calibration | 5 to 40.0 ºC |
| Display | Custom (monochrome) digital LCD with backlight |
| Operating Temperature | 5 to 40.0 ºC |
| Operating Humidity | 85% or less relative humidity (no condensation) |
| Power | CR2032 batteries (2) |
| Battery Life | Approx. 400 hours in continuous use without backlight |
| Material | ABS epoxy body |
| Dimensions | 164 x 29 x 20 mm (excluding projections) |
| Mass | Approx. 55 g (including sensor and batteries) |
| Functions | Auto Calibration
Auto Standard Recognition
Changeable High & Low Calibration Values
Temperature Calibration
Auto Hold / Auto Stable Measurement
Switchable Backlight
Automatic Power Off (30mins)
Low Battery Indicator
IP67 Dust / Waterproof
Replaceable sensor |
Related Products
0.5% NaCl Standard Solution 514-05 / Y021L
- For Cardy C-121 and LAQUAtwin B-721, Salt-11, and Salt-22
5.0% NaCl Standard Solution 514-50 / Y021H
- For LAQUAtwin EC-11, EC-22, EC-33, Salt-11
