The Advanced envionmental radiation monitor with communication tools and expanded measurement ranges

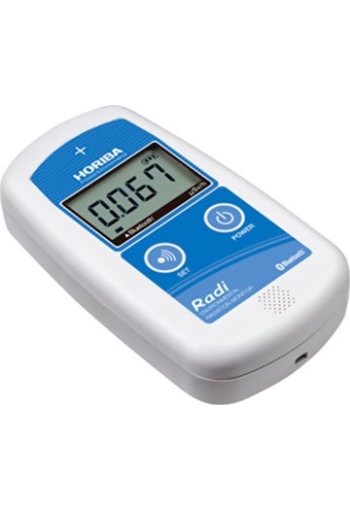

The Horiba PA-1100 Environmental Radiation Monitor Radi is a communications-capable model in HORIBA's envionmental radiation monitor "Radi" series
The Horiba PA-1100 Environmental Radiation Monitor simply measures a fair amount of radiation which exists around the regular living area. Equipped with Bluethooth and USB communication, PA-1100 is capable of transfering measurement data to PCs, smart phones, or other devices.
Features
- Communication tools facilitate daily data management
- 【Bluetooth®】The GPS data (dima and location) of the portable device and the radiation amount that PA-1100 acquires can be recorded.

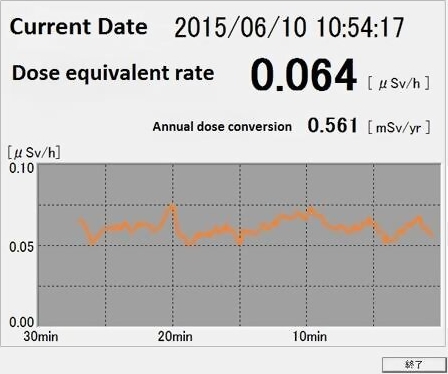

- 【USB】 Continuous monitoring of doses is available by collecting data transfered from USB into a PC.
- Expanded measurement ranges: 0.001-19.99µSv/h

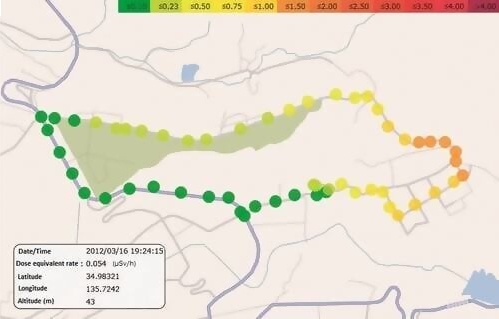

- Data imported by connection between PA-1100 and Android device displays in sorted colors in a map
- Valid only PC with internet connection
- Mapping Software: How to use maping software
Specifications
Detection Method | Scintillation method |
Type of radiation measured | Gamma (γ) rays |
Measurement range and display | 0.001～9.999, 10.00～19.99 µSv/h
Digital 4 digit display automatic switching |
Sensitivity | Count of 1000 or more per minute when Cs-137 is 1µSv/h |
Relative indication error | Within ±10% (error relative to the reference value of Cs-137) |
Variation in indicating value | Vriation coefficient less than 0.1 |
Mesurement energy range | 150keV to 1.25MeV or higher |
Energy Characteristics | 0.5~3 (response ratio at 150 keV to MeV when Cs-37 is 1) |
Sampling time | 60 seconds |
Power supply | 1.5V 2 AA batteries (manganese or alkaline batteries) |
Display update interval | 10 seconds (display every 10 second of moving average in 60 seconds) |
Dimensions | 68(W) x 28(D) x 121(L) mm
Approx. 2.68(W) x 1.10(D) x 4.76(L) in. |
Weight | 175g(batteries and strap not included)
Approx. 6.17 oz. |
Bluetooth communications | Dose equivalen rate (µSv/h) data is output via Bluetooth communications.
Bluetooth version 2.1+EDR and Serial Port Profile are supported. |
Operaiting environment of communications terminal - Supported operating systems: Andoid version 2.2 or later (Japanese or English)
- Bluetooth (serial port profile must be supported)
- A SD card must be mounted
|
USB communications | Dose equivalent rage(µSv/h) date is output via the suplied USB cable.
Operating envrionment of communications terminal - Supported operating systems: Windows XP, Windows Vista, Windows 7 (32-bit/64-bit), Japanese
|
