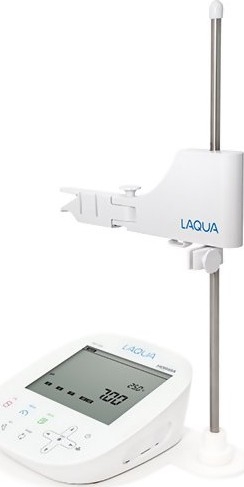

Horiba Laqua EC-1100 # 3200647411 Benchtop Conductivity / Resistivity / Salinity / TDS Meter

---

Automatic and manual conductivity calibration up to 4 points

---

Adjustable reference temperature and temperature coefficient

---

Selectable cell constant and measurement unit

---

The Horiba LAQUA series marries advanced technology with stylish design and an easy-to-use touch screen interface. The Horiba Laqua EC-1100 was developed as a durable meter offering long term reliability for laboratory professionals. Advanced functionalities and a wide array of electrodes provide high precision measurement with improved response time in a huge variety of applications.

Kit Contents

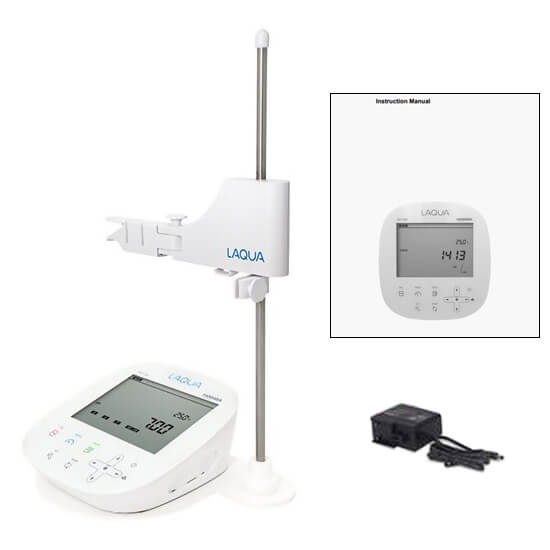

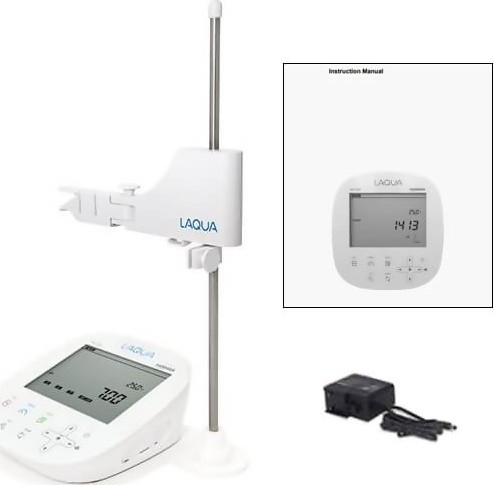

Laqua EC-1100 Benchtop Conductivity / Resistivity / Salinity / TDS Meter Integrated Electrode Stand Meter Cover AC Power Adaptor Instruction Manual

Features

• Automatic / manual conductivity calibration up to 4 points
• Adjustable reference temperature and temperature coefficient
• Selectable cell constant and measurement unit
• Automatic / manual temperature compensation
• Temperature calibration function
• Resistivity, total dissolved solids (TDS), and salinity conversions from conductivity
• Four TDS calibration curves for wide range of applications: EN27888, Linear, 442, NaCl
• Two salinity calibration curves: NaCl, Seawater
• Built-in memory can store up to 500 data
• Auto-Hold / Auto-Stable measurement
• RS232C and USB outputs for connecting the meter to a compatible printer or computer
• Meter password setting
• 2 years meter warranty

Specifications

Condutivity (EC) Range	0.000 μS/cm to 20.00 mS/cm (k=0.1) 0.00 μS/cm to 200.0 mS/cm (k=1) 0.0 μS/cm to 2.000 S/cm (k=10)
Resolution	0.05% of full scale
Accuracy	± 0.6% of full scale; ± 1.5% of full scale > 18.0 mS/cm
Reference Temperature	15 to 30 °C (Adjustable)
Temperature Coefficient	0.00 to 10.00 % (Adjustable)
Cell Constant	0.1 / 1.0 / 10.0 (Selectable)
Measurement Unit	μS/cm, mS/cm, S/m (Auto-ranging / Manual)
Calibration Points	Up to 4 (Auto / Manual)
TDS Range	0.00 mg/L to 100 g/L
Resolution	0.01 mg/L
Accuracy	± 0.1% of full scale
Calibration Curves	EN27888 / 442 / Linear (0.40 to 1.00) / NaCl
Resistivity Range	0.0 Ω•cm to 2.000 MΩ•cm (k=10) 0.000 kΩ•cm to 20.00 MΩ•cm (k=1) 0.00 kΩ•cm to 200.0 MΩ•cm (k=0.1)
Resolution	0.05% of full scale
Accuracy	± 0.6% of full scale; ± 1.5% of full scale > 1.80 MΩ•cm
Salinity Range	0.00 to 100.00 ppt / 0.000 to 10.000 %
Resolution	0.01 ppt / 0.001 %
Accuracy	± 0.2% of full scale
Calibration Curves	NaCl / Seawater
Temperature Range	-30.0 to 130.0 °C
Resolution	0.1 °C
Accuracy	± 0.4 °C
Calibration Option	Yes
Memory Data	500
Auto-Hold / Auto-Stable	Yes
Cell Constant Display	Yes
Electrode Status	On screen display
Diagnostic Messages	Yes
Display	Custom black and white static LCD
Inputs	BNC, phono, DC sockets
Output	RS232C, USB
Power Requirement	AC adaptor, 100-240V, 50/60Hz
Weight	500g
Dimensions	170(L) x 174(D) x 73(H) mm

Related Products

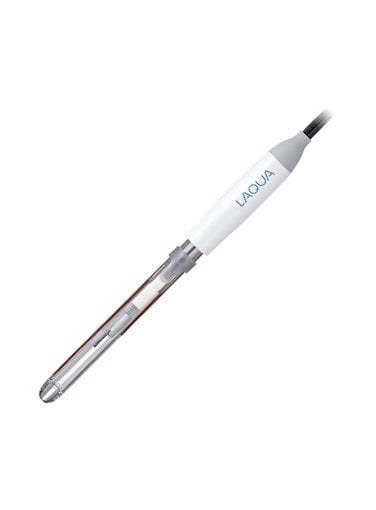

9615S-10D Standard ToupH Electrode p/n 3200585100% / 3200366539

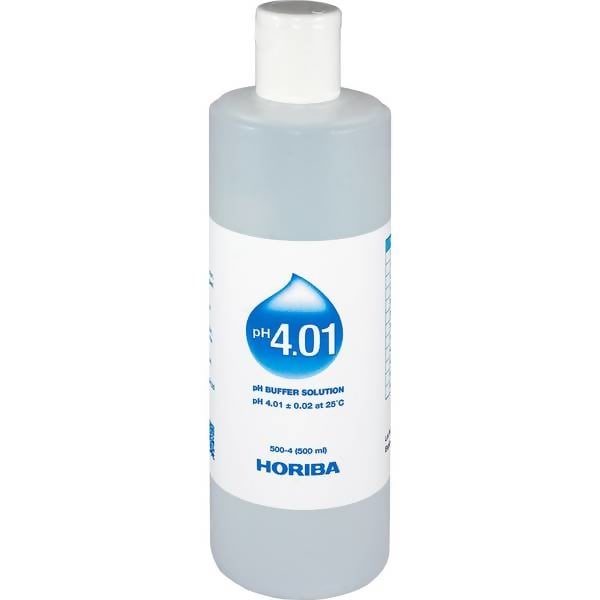

pH 4.01 Buffer Solution - Model No: 500-4 pH 4.01 ±0.02 Buffer Solution at 25°C 250ml

pH 7.00 Buffer Solution - Model No: 500-7 pH 7.00 ±0.02 at 25°C 500ml

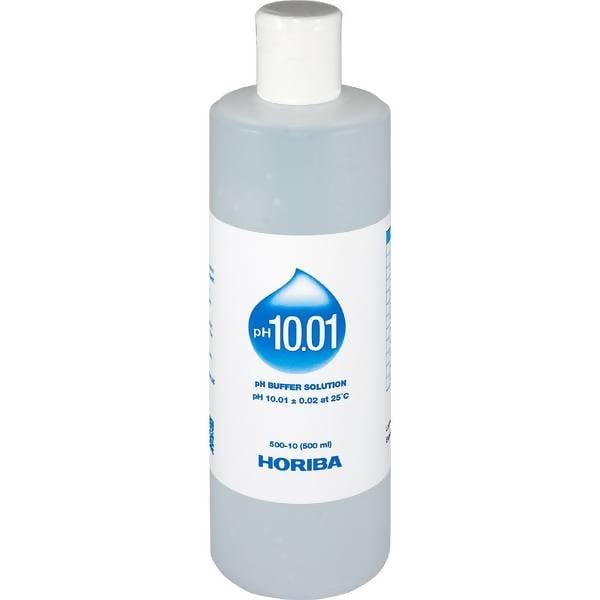

pH 10.01 Buffer Solution - Model No: 500-10 pH 10.01 ±0.02 at 25°C 500ml
