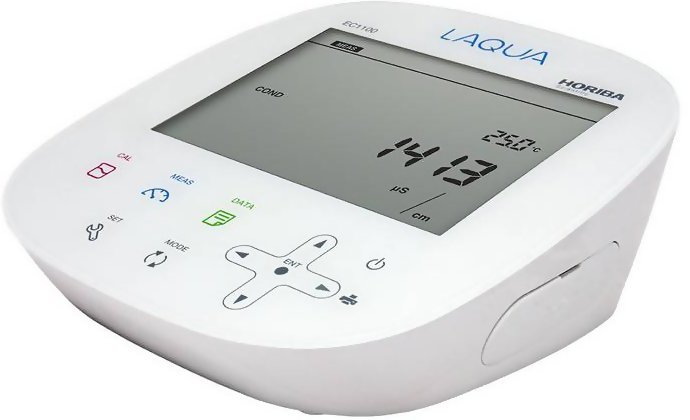

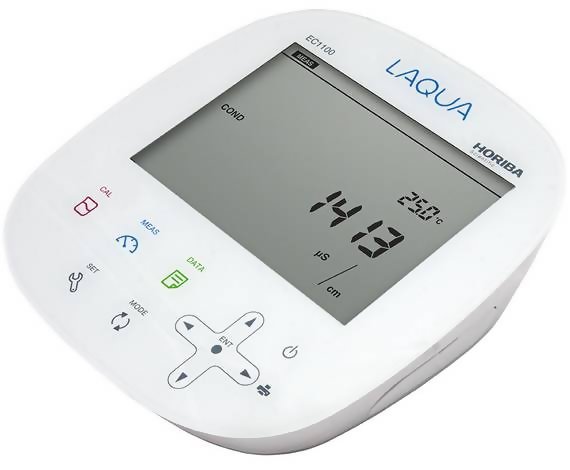

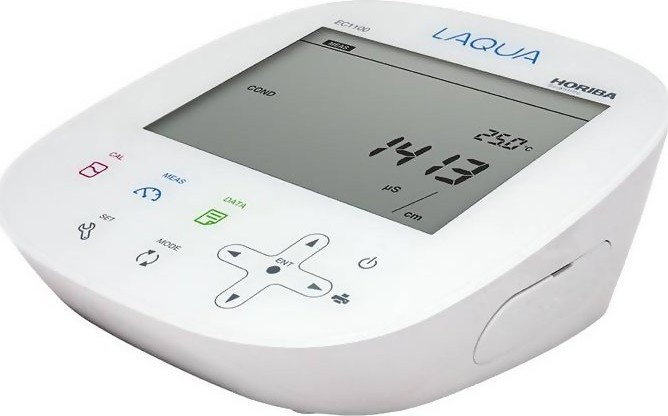

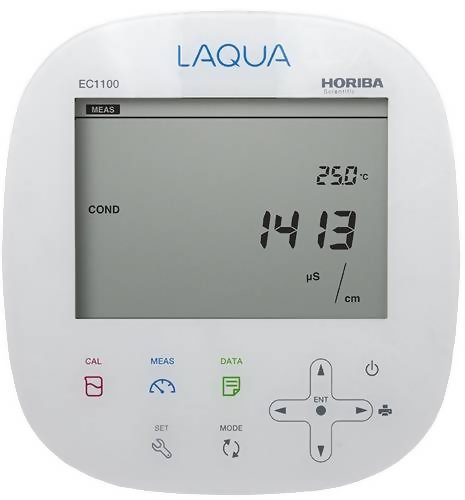

Horiba LAQUA EC1100-S # 3999960179 Benchtop Conductivity / Resistivity / Salinity / TDS / Temperature Meter Kit

See More Horiba LAQUA Benchtop Meters

Horiba LAQUA EC1100-S # 3999960179 Benchtop Conductivity / Resistivity / Salinity / TDS / Temperature Meter Kit

See More Horiba LAQUA Benchtop Meters
This product has been discontinued

Product Description

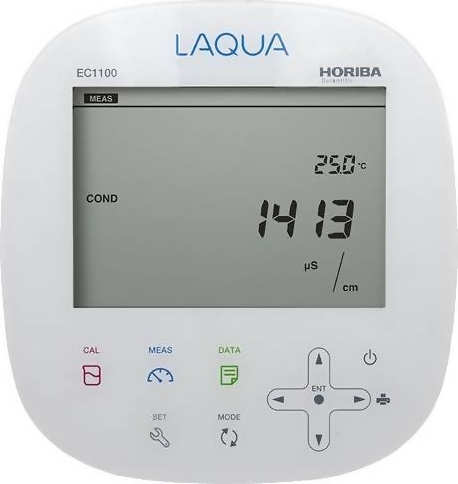

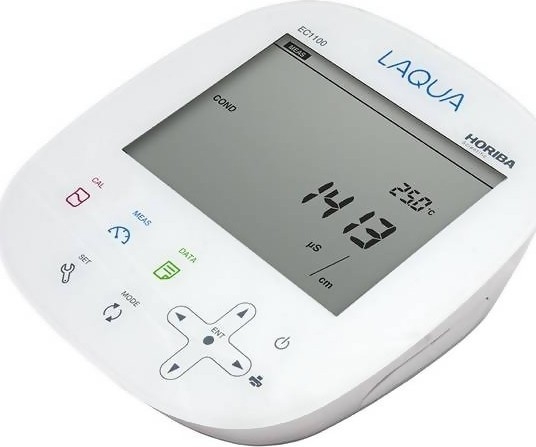

Horiba LAQUA EC1100-S # 3999960179 Benchtop Conductivity / Resistivity / Salinity / TDS / Temperature Meter Kit
Automatic and manual conductivity calibration up to 4 points
Adjustable reference temperature and temperature coefficient
Selectable cell constant and measurement unit

The HORIBA LAQUA series marries advanced technology with stylish design and an easy-to-use touch screen interface. The Horiba LAQUA EC1100-S was developed as a durable meter offering long term reliability for laboratory professionals. Advanced functionalities and a wide array of electrodes provide high precision measurement with improved response time in a huge variety of applications.


line

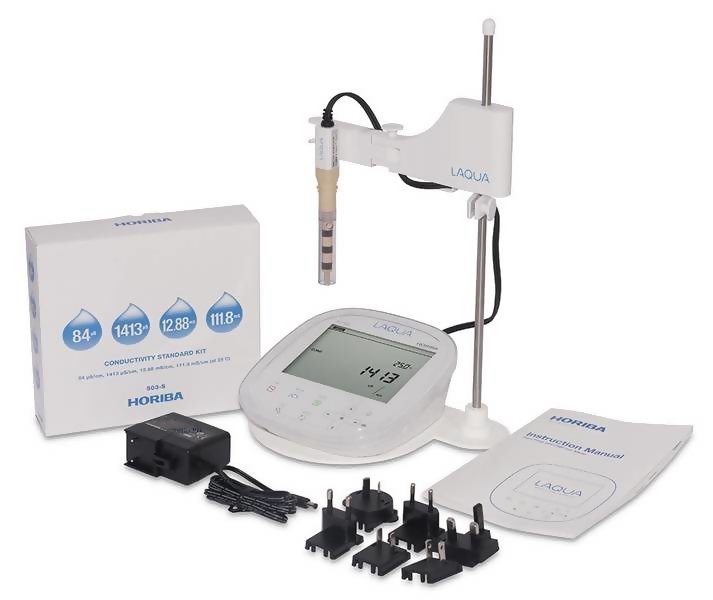

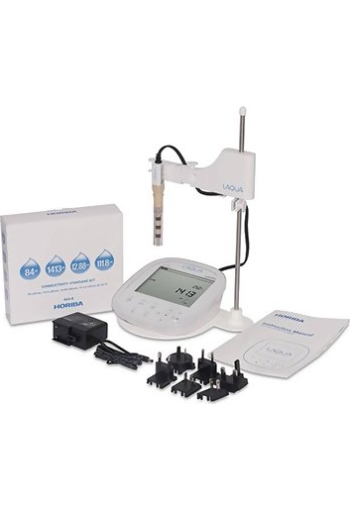

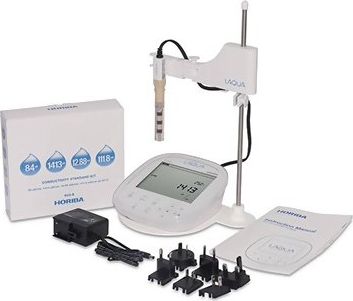

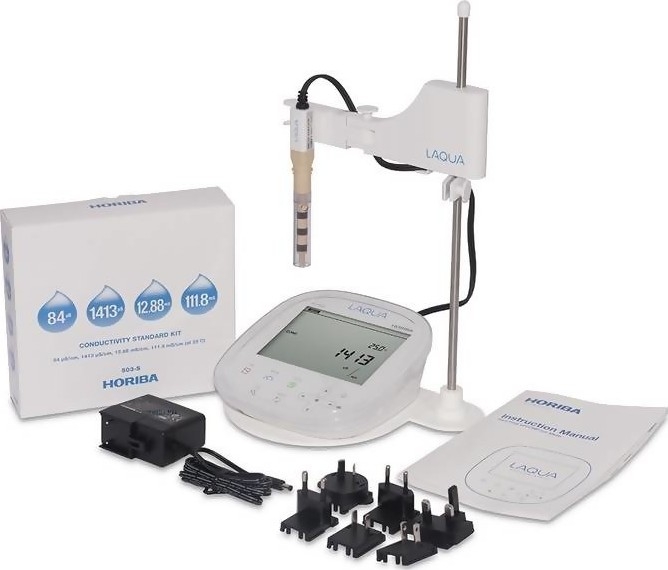

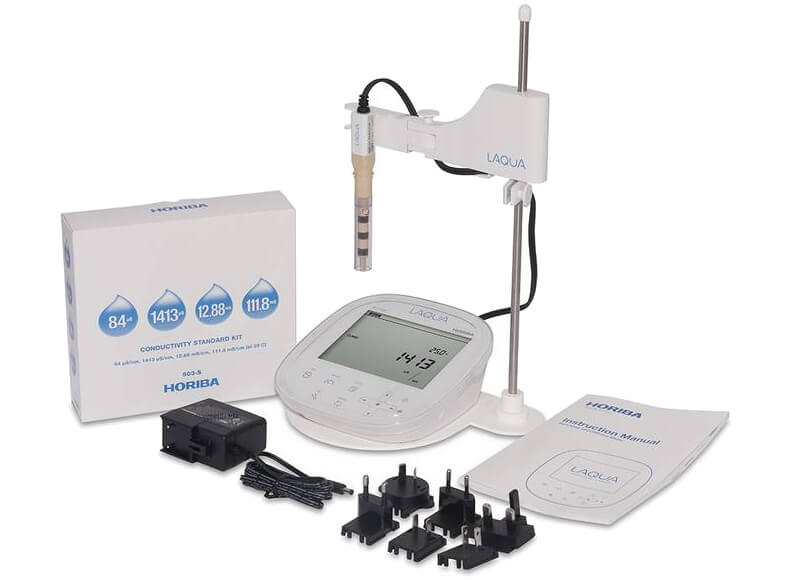

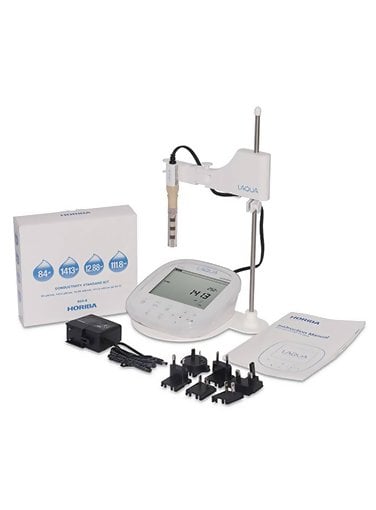

Kit Contents
line

  • LAQUA LAQUA EC1100-S Conductivity / Resistivity / Salinity / TDS Meter Kit
  • 9382-10D Plastic-body, Titanium/platinum black conductivity probe (k=1.0) wth integrated temperature sensor
  • 503-S Conductivity Standards: 84 uS/cm, 1413 uS/cm, 12.88 mS/cm, 111.8 mS/cm (250ml each)
  • Data acquisition software in USB flash drive (communication cable is sold separately)
  • Integrated electrode stand
  • Protection cover
  • Power adaptor with 6 plugs (US, EU, UK, Australia / New Zealand, Korea, China)
  • Instruction manual


line
Features
line

  • Automatic / manual conductivity calibration up to 4 points
  • Adjustable reference temperature and temperature coefficient
  • Selectable cell constant and measurement unit
  • Automatic / manual temperature compensation
  • Temperature calibration function
  • Resistivity, total dissolved solids (TDS), and salinity conversions from conductivity
  • Four TDS calibration curves for wide range of applications: EN27888, Linear, 442, NaCl
  • Two salinity calibration curves: NaCl, Seawater
  • Built-in memory can store up to 500 data
  • Auto-Hold / Auto-Stable measurement
  • RS232C and USB outputs for connecting the meter to a compatible printer or computer
  • Meter password setting
  • 2 years meter warranty


line
Specifications
line

Condutivity (EC) Range0.000 μS/cm to 20.00 mS/cm (k=0.1)
0.00 μS/cm to 200.0 mS/cm (k=1)
0.0 μS/cm to 2.000 S/cm (k=10)
Resolution0.05% of full scale
Accuracy± 0.6% of full scale; ± 1.5% of full scale > 18.0 mS/cm
Reference Temperature15 to 30 °C (Adjustable)
Temperature Coefficient0.00 to 10.00 % (Adjustable)
Cell Constant0.1 / 1.0 / 10.0 (Selectable)
Measurement UnitμS/cm, mS/cm, S/m (Auto-ranging / Manual)
Calibration PointsUp to 4 (Auto / Manual)
TDS Range0.00 mg/L to 100 g/L
Resolution0.01 mg/L
Accuracy± 0.1% of full scale
Calibration CurvesEN27888 / 442 / Linear (0.40 to 1.00) / NaCl
Resistivity Range0.0 Ω•cm to 2.000 MΩ•cm (k=10)
0.000 kΩ•cm to 20.00 MΩ•cm (k=1)
0.00 kΩ•cm to 200.0 MΩ•cm (k=0.1)
Resolution0.05% of full scale
Accuracy± 0.6% of full scale; ± 1.5% of full scale > 1.80 MΩ•cm
Salinity Range0.00 to 100.00 ppt / 0.000 to 10.000 %
Resolution0.01 ppt / 0.001 %
Accuracy± 0.2% of full scale
Calibration CurvesNaCl / Seawater
Temperature Range-30.0 to 130.0 °C
Resolution0.1 °C
Accuracy± 0.4 °C
Calibration OptionYes
Memory Data500
Auto-Hold / Auto-StableYes
Cell Constant DisplayYes
Electrode StatusOn screen display
Diagnostic MessagesYes
DisplayCustom black and white static LCD
InputsBNC, phono, DC sockets
OutputRS232C, USB
Power RequirementAC adaptor, 100-240V, 50/60Hz
Weight500g
Dimensions170(L) x 174(D) x 73(H) mm
