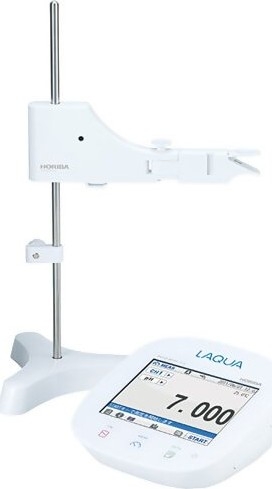

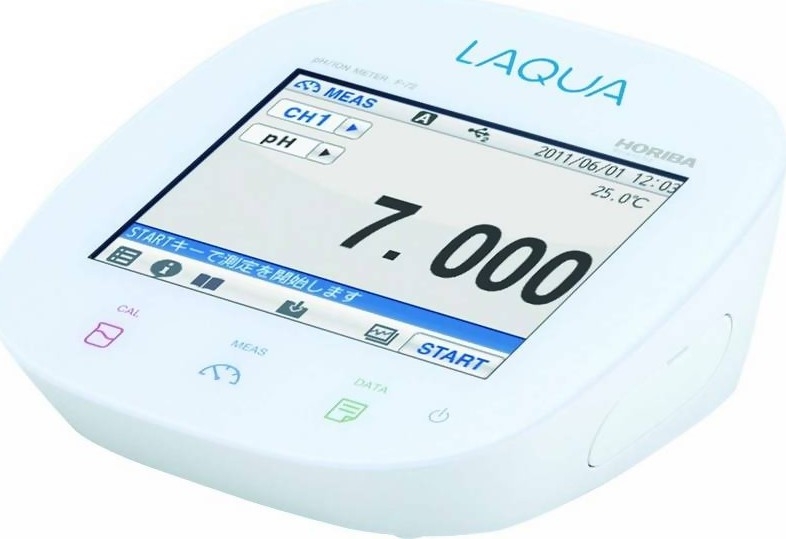

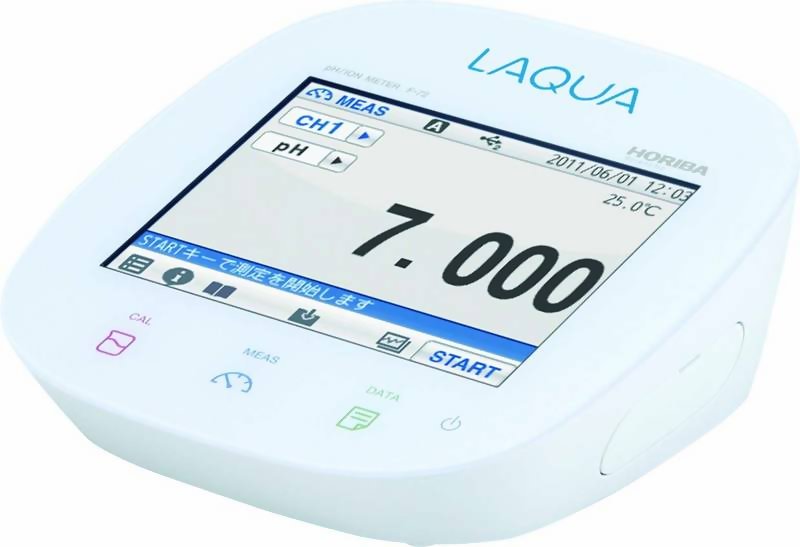

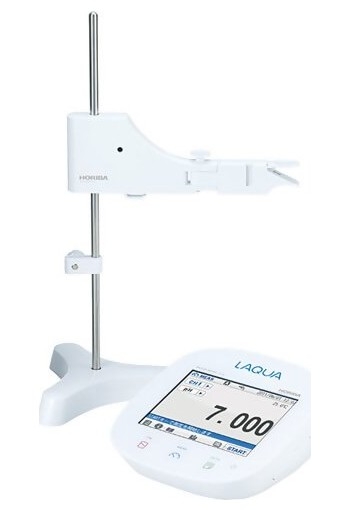

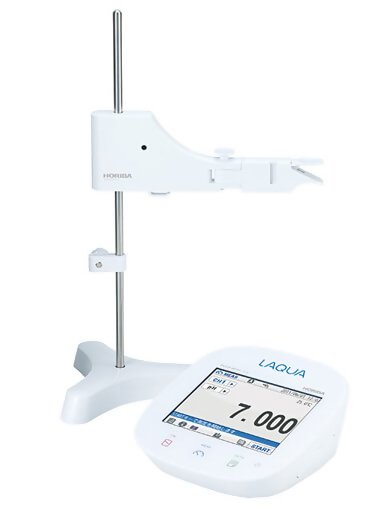

Horiba LAQUA F-72 # 3200575120 Benchtop pH / ORP / Ion

Display easy to understand value and functions menus

Switch between digital real time graphs or analogue displays during measurement with just the flick of a finger

Easy navigation for main unit and electrode inspections

The HORIBA LAQUA series marries advanced technology with stylish design and an easy-to-use touch screen interface. The Horiba LAQUA F-72 was developed as a durable meters offering long term reliability for laboratory professionals. Advanced functionalities and a wide array of electrodes provide high precision measurement with improved response time in a huge variety of applications.

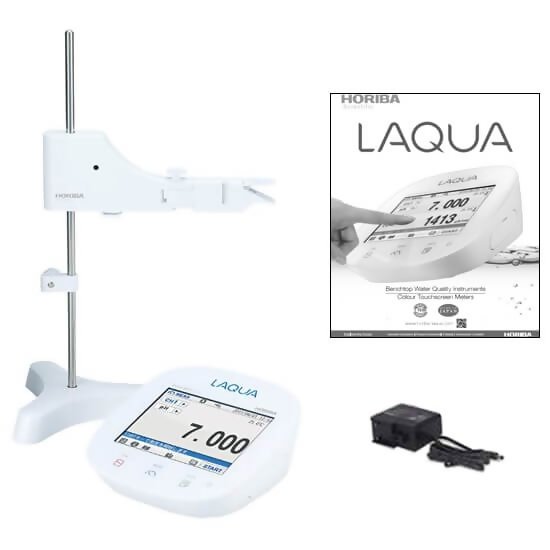

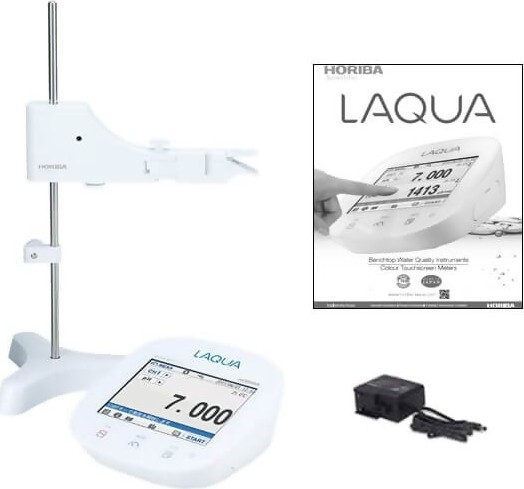

Kit Contents

Horiba LAQUA F-72 Benchtop pH / ORP / Ion
Integrated electrode stand
Protection cover
AC Power Adaptor
Instruction manual

Features

Bench meter with large touchscreen color graphic LCD
Easy-to-clean, elegant body
GLP/GMP compliant, compatible with LAQUA 21 CFR Part 11 Software
Switchable display - digital, graph, and analog
Single-touch operations - tap, flick, and drag
Smart navigation - on-screen support for calibration, application, inspection and troubleshooting via electronic user guide with coloured pictures
Auto data log capable
Customizable printout and auto-hold function for calibration and measurement
Simultaneous connection to a compatible printer and computer
Simultaneous data storage to meter and USB flash drive
Built-in memory stores up to 2,000 data with sample ID for easy reference
Data settings allow users to search (by date, parameter, or sample ID), view, delete, and even copy data from meter to USB flash drive
Data output via USB to computer or USB flash drive or via RS232C to computer or printer
Multi-language support (Japanese, English, Chinese, Korean, and Vietnamese)
Meter password setting and up to 25 users registrations
2 years meter warranty

Specifications

Model	LAQUA F-72 pH/ORP/Ion/Temp (°C)
pH Range	-2.000 to 20.000 pH
Resolution	0.01 / 0.001 pH
Accuracy	± 0.001 pH
Calibration Points	Up to 5
Buffer Options	USA / NIST / NIST2 / China / Custom
ORP Range	± 1999.9 mV
Resolution	0.1 mV
Accuracy	± 0.2 mV
IonRange	0.000 µg/L to 9999 g/L (mol/L)
Resolution	4 significant digits
Accuracy	± 0.3% of full scale
Calibration Points	Up to 5
Temperature Range	30.0 to 130.0 °C
Resolution	0.1 °C
Accuracy	± 0.4 °C
Calibration Option	Yes
Navigation Function	Yes
Memory	2000
Auto Data-Logging	Yes
Data Search	Yes
Custom Printing	Yes
Real Time Clock	Yes
Date / Time Stamp	Yes
Sample ID Input	Yes
Operator ID Input	Yes
Password Setting	Yes
Auto Stable / Auto Hold	Yes
Offset / Slope Display	Yes (independent acid and alkaline slopes depending on calibration)
Calibration Alarm Limit	Yes
Electrode Status	On screen display
Diagnostic Messages	Yes
Display	Touchscreen color graphic LCD
Languages	English / Japanese / Chinese / Korean / Vietnamese
Inputs	BNC, phono, DC socket
Outputs	USB, RS232C, analog output
Power Requirements	AC adaptor 100 240V, 50/60 Hz
Electrode Stand	Stand-alone
Weight	700g
Dimensions	170 (W) x 174 (D) x 73 (H) mm
