Horiba LAQUA PC1100-S # 3999960180 Benchtop pH / ORP / Conductivity / Resistivity / Salinity / TDS / Temperature Meter Kit
Dual channel / display
Automatic pH calibration up to 5 points using NIST, USA, or Custom pH buffers
Switchable pH resolution - 0.1, 0.01, 0.001 pH
The HORIBA LAQUA series marries advanced technology with stylish design and an easy-to-use touch screen interface. The Horiba LAQUA PC1100-S was developed as a durable meters offering long term reliability for laboratory professionals. Advanced functionalities and a wide array of electrodes provide high precision measurement with improved response time in a huge variety of applications.

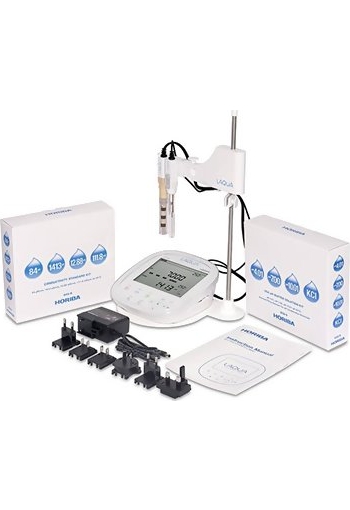

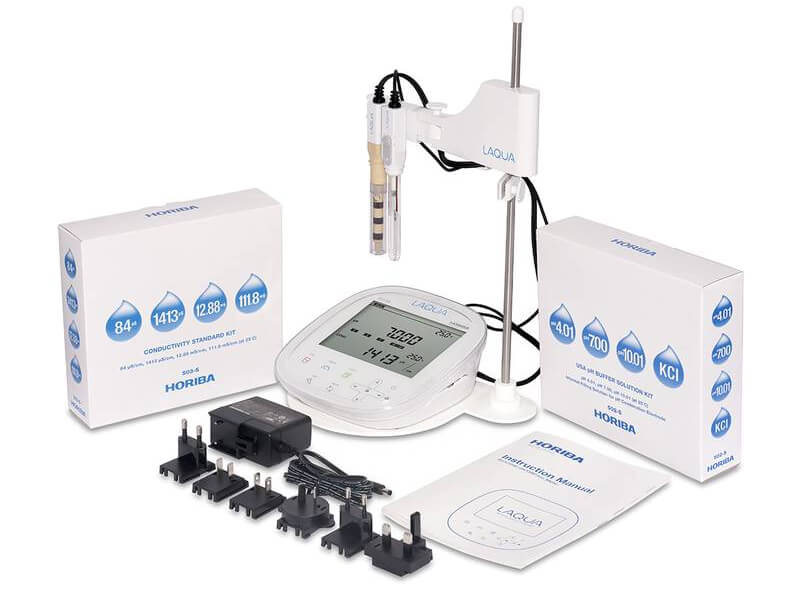

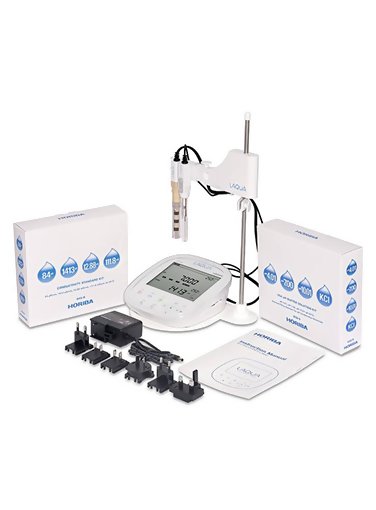

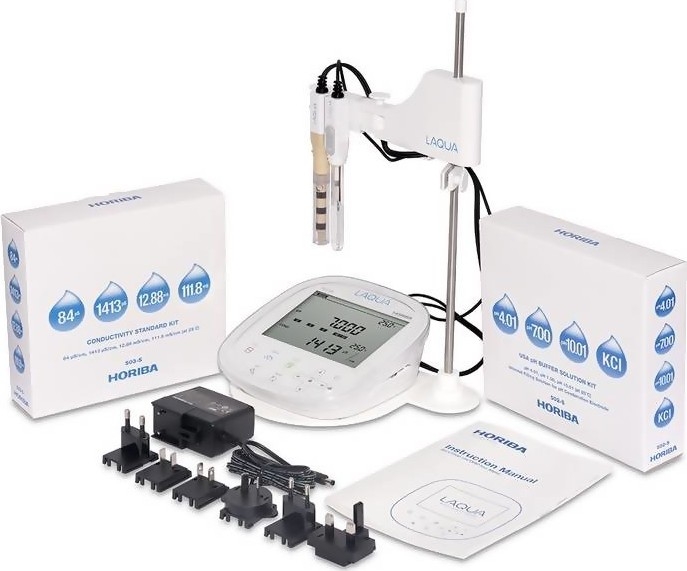

Kit Contents
- LAQUA PC1100-S Benchtop pH / ORP / Conductivity / Resistivity / Salinity / TDS Meter
- 9615S-10D ToupH glass-body, refillable pH electrode with integrated temperature sensor
- 9382-10D plastic-body, titanium/platinum black, conductivity probe (k=1.0) with integrated temperature sensor
- 502-S USA pH buffers: 4.0, 7.00, 10.01 pH buffers & 3.33 M KCl (250ml each)
- 503-S Conductivity standards: 84 µS/cm, 1413 µS/cm, 12.88 mS/cm, 111.8 mS/cm (250ml each)
- Data acquisition software in USB flash drive (communication cable is sold separately)
- Integrated electrode stand
- Protection cover
- Power adaptor with 6 plugs (US, EU, UK, Australia / New Zealand, Korea, China)
- Instruction manual
Features
- Dual channel / display
- Automatic pH calibration up to 5 points using NIST, USA, or Custom pH buffers
- Switchable pH resolution - 0.1, 0.01, 0.001 pH
- Offset and slope display
- Automatic / Manual temperature compensation and temperature calibration function
- Automatic and manual conductivity calibration up to 4 points
- Adjustable reference temperature and temperature coefficient
- Selectable cell constant and measurement unit
- Conductivity and total dissolved solids (TDS) conversion
- Four (4) TDS calibration curves for wide range of applications: EN27888, Linear, 442, NaCl
- Two (2) salinity calibration curves: NaCl, Seawater
- Auto log data; Built-in memory can store up to 1000 data
- Real-time clock and date / time stamp
- Auto shut-off (programmable: 1 to 30 minutes)
- Auto-Hold / Auto-Stable measurement
- Calibration alarm (programmable: 1 to 400 days)
- Custom black and white static LCD
- RS232 and USB output for connecting to computer or printer
- Security (password setting)
- 2 years meter warranty
Specifications
| Model | LAQUA PC1100Dual Channel pH/ORP/EC/Res/TDS/Sal/Temp (°C) |
|---|
| pH Range | -2.000 to 20.000 pH |
| Resolution | 0.1 / 0.01 / 0.001 pH |
| Accuracy | ± 0.003 pH |
| Calibration Points | Up to 5 |
| Buffer Options | USA / NIST / Custom |
| ORP Range | ± 2000 mV |
| Resolution | 0.1 mV |
| Accuracy | ± 0.2 mV |
| Conductivity (EC) Range | 0.000 μS/cm to 20.00 mS/cm (k=0.1)
0.00 μS/cm to 200.0 mS/cm (k=1)
0.0 μS/cm to 2.000 S/cm (k=10) |
| Resolution | 0.05% of full scale |
| Accuracy | ± 0.6% of full scale; ± 1.5% of full scale > 18.0 mS/cm |
| Reference Temperature | 15 to 30 °C (Adjustable) |
| Temperature Coefficient | 0.00 to 10.00 % (Adjustable) |
| Cell Constant | 0.1 / 1.0 / 10.0 (Selectable) |
| Measurement Unit | μS/cm, mS/cm, S/m (Auto-ranging / Manual) |
| Calibration Points | Up to 4 (Auto / Manual) |
| TDS Range | 0.00 mg/L to 100 g/L |
| Resolution | 0.01 mg/L |
| Accuracy | ± 0.1% of full scale |
| Calibration Curves | EN27888 / 442 / Linear (0.40 to 1.00) / NaCl |
| Resistivity Range | 0.0 Ω•cm to 2.000 MΩ•cm (k=10)
0.000 kΩ•cm to 20.00 MΩ•cm (k=1)
0.00 kΩ•cm to 200.0 MΩ•cm (k=0.1) |
| Resolution | 0.05% of full scale |
| Accuracy | ± 0.6% of full scale; ± 1.5% of full scale > 1.80 MΩ•cm |
| Salinity Range | 0.00 to 100.00 ppt / 0.000 to 10.000 % |
| Resolution | 0.01 ppt / 0.001 % |
| Accuracy | ± 0.2% of full scale |
| Calibration Curves | NaCl / Seawater |
| Temperature Range | -30.0 to 130.0 °C |
| Resolution | 0.1 °C |
| Accuracy | ± 0.4 °C |
| Calibration Option | Yes |
| Memory Data | 999 |
| Auto Log Data | Yes |
| Real-time Clock | Yes |
| Date / Time Stamp | Yes |
| Auto-Shut Off | Yes (Programmable: 1 to 30 minutes) |
| Auto-Hold / Auto-Stable | Yes |
| Offset / Slope Display | Yes (Independent acid and alkaline slopes depending on calibration) |
| Electrode Status | On screen display |
| Diagnostic Messages | Yes |
| Calibration Alarm | Yes (Programmable: 1 to 400 days) |
| Display | Custom black and white static LCD, Dual Channel |
| Inputs | Dual BNC, dual phono, DC sockets |
| Output | RS232C, USB |
| Power Requirement | AC adaptor, 100-240V, 50/60Hz |
| Weight | 500g |
| Dimensions | 170(L) x 174(D) x 73(H) mm |
