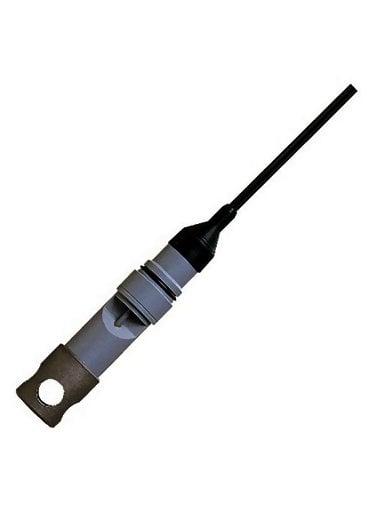

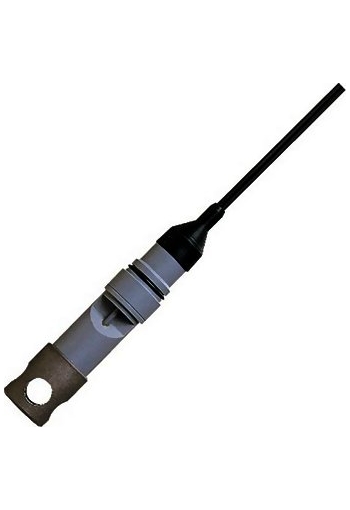

Horiba Laqua 9551-100D Dissolved Oxygen Electrode, # 3014047091

---

For field use, immersible, 10m cable

---

Operates with replaceable DO tip 5401 and built-in temperature sensor

---

The Horiba Laqua 9551-100D is a waterproof Dissolved Oxygen Electrode for field use.

HORIBA's superior electrode technology has produced unparalleled tough pH glass bulbs and unique flat sensors. Electrodes have different designs to cater a wide range of applications - from pure water to complex samples.

Features

• For field use, immersible, 10m cable
• Operates with replaceable DO tip 5401 and built-in temperature sensor
• Waterproof

Specifications

Dissolved Oxygen Range	0 to 19.99 mg/L
Temperature Range	0 to 40 °C
Response Time	30 seconds (90% response time at constant temperature)
Connectors	BNC, phono jack
Cable Length	10m
Overall Length	165mm
Diameter	32mm
Replacement DO Tip	5401

Downloads

Horiba Laqua 9551-100D Dissolved Oxygen Electrodes, For field use, immersible, 10m cable, 3014047091 - Brochure

Horiba Laqua 9551-100D Dissolved Oxygen Electrodes, For field use, immersible, 10m cable, 3014047091 - Instruction Manual

Horiba Laqua 9551-100D Dissolved Oxygen Electrodes, For field use, immersible, 10m cable, 3014047091 - 7541 DO Tip Instruction Manual
