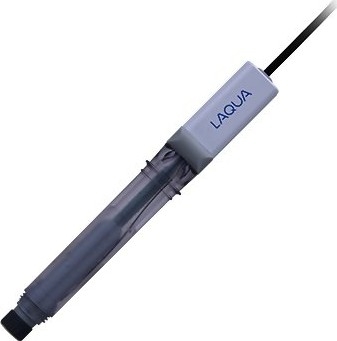

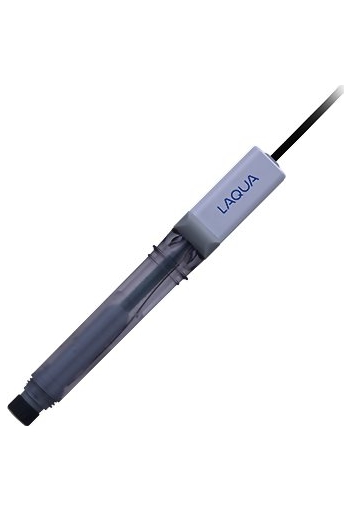

Horiba Laqua 6560S-10C Chloride Ion Electrode (Combination), # 3200697407

See More Horiba LAQUA Ion Electrodes

Horiba Laqua 6560S-10C Chloride Ion Electrode (Combination), # 3200697407

See More Horiba LAQUA Ion Electrodes
Price:
$960.00
warrenty

Product Description
Horiba Laqua 6560S-10C Chloride Ion Electrode (Combination), # 3200697407
Temperature Range: 0 - 50 ºC
pH Range: pH 5 - 11 (4.0 mg/L Ca2+)
Accuracy: ±4%

The Horiba Laqua 6560S-10C Chloride Ion Electrode (Combination) is an Ion Selective Electrode - the reference electrode and ion sensing electrode are built in one body.

HORIBA's superior electrode technology has produced unparalleled tough pH glass bulbs and unique flat sensors. Electrodes have different designs to cater a wide range of applications - from pure water to complex samples.


line
Specifications
line

Measurement Range0.35 - 35,000 mg/L Cl-
1 x 10-5 - 1 mol/L Cl-
Temperature Range0 - 50 ºC
pH RangepH 3 - 11 (350 mg/L Cl-)
Accuracy± 2%
Internal ElectrodeAg/AgCl
Internal Solution1 mol/L KNO3
Liquid JunctionMovable sleeve
Connector & Cable LengthBNC, 1m
Dimensions150mm (length), 16.5mm (diameter)
Wetted Part MaterialsPVC, PSU, AgCl
Slope-53 to -62 mV/decade
Selection CoefficientS2O32-, S2-, I-, Ag+, Hg2+ = Not acceptable
SCN- = 0.3, MnO4- = 0.1, Br- = 0.03
NO3-, F-, HCO3-, SO42-, PO42-= 1000

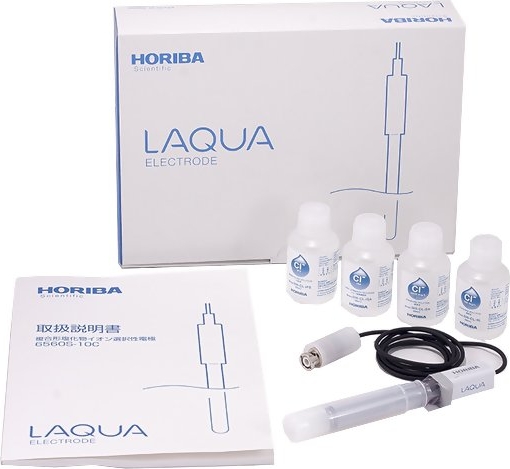

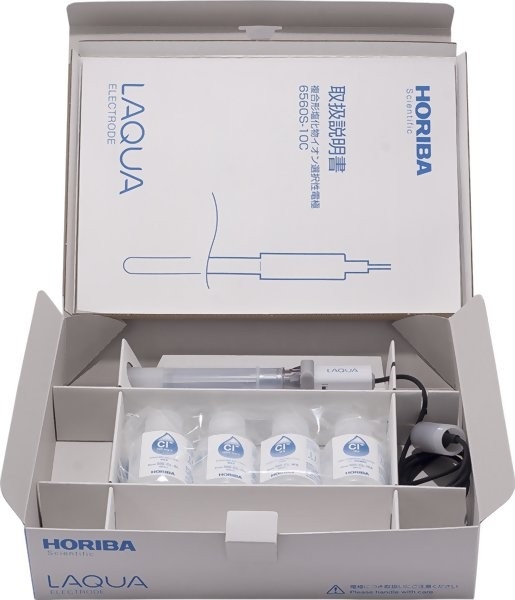

Package Contents
  • Chloride Ion Electrode Tip
  • 1000 mg/L Chloride Ion Standard Solution (50ml)
  • 100 mg/L Chloride Ion Standard Solution (50ml)
  • Chloride Ionic Strength Adjustor (50ml)
  • Chloride Electrode Filling Solution (50ml)
  • Syringe
  • Dropper
  • Protective Pipe
  • Water-resistant abrasive sheet
  • Manual
Accessories and Solutions

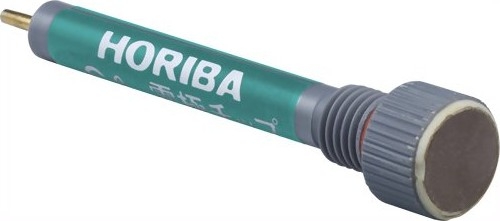

7660SChloride Ion Electrode Tip
500-CL-IFSChloride Ion Electrode Filling Solution (500ml)
500-CL-SL100 mg/L Chloride Ion Standard Solution (500ml)
500-CL-SH1000 mg/L Chloride Ion Standard Solution (500ml)
500-CL-ISAChloride Ionic Strength Adjustor (500ml)


line
Downloads
line

Horiba Laqua 6560S-10C Combination Chloride Ion Electrode, 3200697407 - Brochure
Horiba Laqua 6560S-10C Combination Chloride Ion Electrode, 3200697407 - Instruction Manual
