Horiba Laqua 6581S-10C Nitrate Ion Electrode (Combination), # 3200697408

See More Horiba LAQUA Ion Electrodes

Horiba Laqua 6581S-10C Nitrate Ion Electrode (Combination), # 3200697408

See More Horiba LAQUA Ion Electrodes
Price:
$960.00
warrenty

Product Description

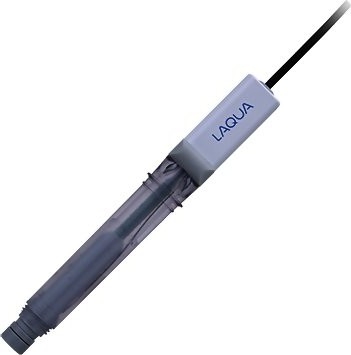

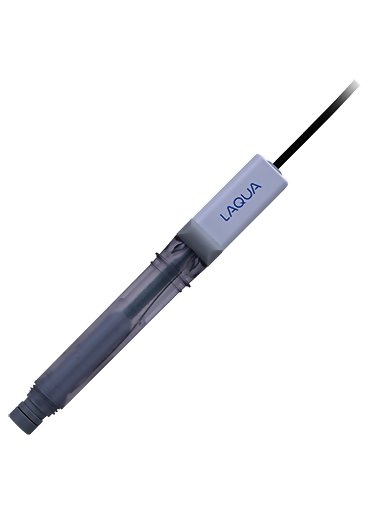

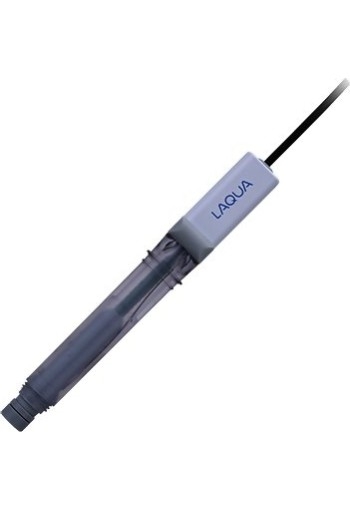

Horiba Laqua 6581S-10C Nitrate Ion Electrode (Combination), # 3200697408
Temperature Range: 0 - 50 ºC
pH Range: pH 3 - 7 (62 mg/L NO3-)
Accuracy: ±2%

The Horiba Laqua 6581S-10C Nitrate Ion Electrode (Combination) is an Ion Selective Electrode - the reference electrode and ion sensing electrode are built in one body.

HORIBA's superior electrode technology has produced unparalleled tough pH glass bulbs and unique flat sensors. Electrodes have different designs to cater a wide range of applications - from pure water to complex samples.


line
Specifications
line

Measurement Range0.62 - 62,000 mg/L NO3-
1 x 10-5 - 1 mol/L NO3-
Temperature Range0 - 50 ºC
pH RangepH 3 - 7 (62 mg/L NO3-)
Accuracy± 2%
Internal ElectrodeAg/AgCl
Internal Solution2 mol/L (NH4)2SO4
Liquid JunctionMovable sleeve
Connector & Cable LengthBNC, 1m
Dimensions150mm (length), 16.5mm (diameter)
Wetted Part MaterialsPVC, PSU
Slope-53 to-62 mV/decade
Selection CoefficientClO4-, I- = Not acceptable
Br- = 2, NO2- = 3, Cl- = 300
HCO3-, H2PO4-, SO42- = over 1000

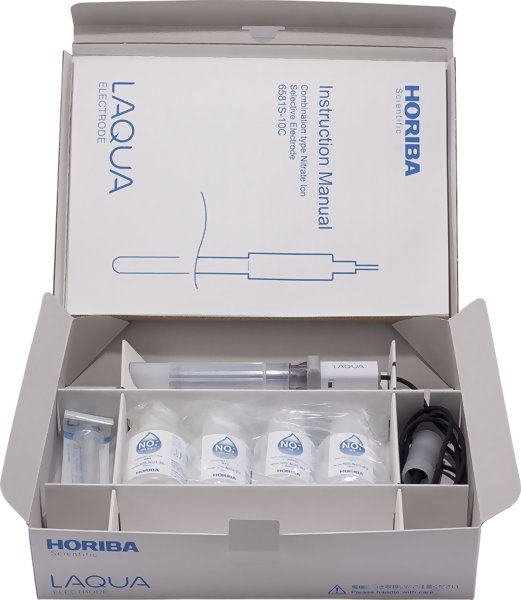

Package Contents
  • 2 pcs Nitrate Ion Electrode Tips
  • 1000 mg/L Nitrate Ion Standard Solution (50ml)
  • 100 mg/L Nitrate Ion Standard Solution (50ml)
  • Nitrate Ionic Strength Adjustor (50ml)
  • Nitrate Ion Electrode Filling Solution (50ml)
  • Syringe
  • Dropper
  • Protective Pipe
  • Manual
Accessories and Solutions

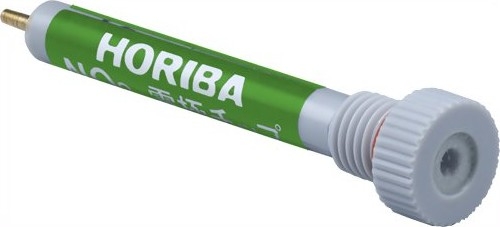

7681SNitrate Ion Electrode Tip
500-NO3-IFSNitrate Ion Electrode Filling Solution (500ml)
500-NO3-SL100 mg/L Nitrate Ion Standard Solution (500ml)
500-NO3-SH1000 mg/L Nitrate Ion Standard Solution (500ml)
500-NO3-ISANitrate Ionic Strength Adjustor (500ml)


line
Downloads
line

Horiba Laqua 6581S-10C Combination Nitrate Ion Electrode, 3200697408 - Brochure
Horiba Laqua 6581S-10C Combination Nitrate Ion Electrode, 3200697408 - Instruction Manual
