Horiba Laqua 8004-10C Iodide Ion Electrode, # 3014094396

---

Measuring range: 0.0127 to 12,700 mg/L l^-| (10^-7 to 10^-1 mol/L) l^-

---

pH Range: 1270 mg/L (10^-2 mol/L) ^l-| pH 2 to 11

---

Applicable temperature range: 0 to 50ºC

---

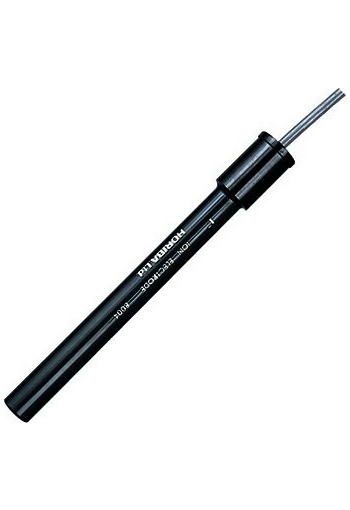

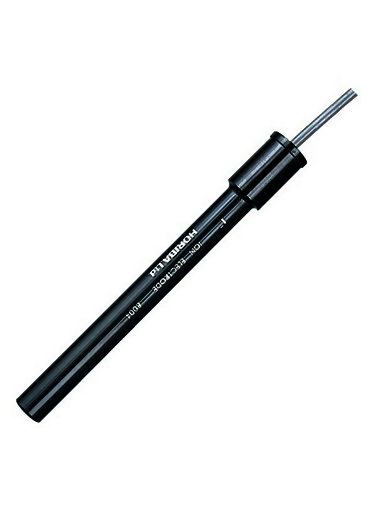

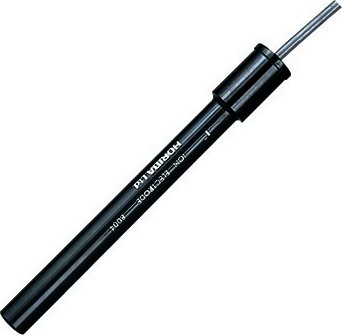

The Horiba Laqua 8004-10C Iodide Ion Electrode, # 3014094396 is an Ion Selective Electrode - the reference electrode and ion sensing electrode are built in one body.

HORIBA's superior electrode technology has produced unparalleled tough pH glass bulbs and unique flat sensors. Electrodes have different designs to cater a wide range of applications - from pure water to complex samples.

Specifications

Measuring range	0.0127 to 12,700 mg/L l- (10-7 to 10-1 mol/L) l-
pH range	1270 mg/L (10-2 mol/L) l- pH 2 to 11
Applicable temperature range	0 to 50ºC
Response time (90%)	Within 10 seconds
Applicable reference electrode	2060A, 2565A
Selection coefficient	MnO4-、S2-、CN- = Not acceptable S2O32- = 10　NO2- = 100 Br- = 1,000

The response time is the time which is required to reach 90% response when the ion concentration is gradually changed from 10^-4 mol/L to 10^-2 mol/L with the solution stirred.Exception:

• *1: 90% response when ion concentration is changed to 10^-6 mol/L ∼ 10^-2 mol/L
• *2: 95% response when ion concentration is changed to 10^-3 mol/L ∼ 10^-1 mol/L
• *3: 95% response when ion concentration is changed to 10^-4 mol/L ∼ 10^-2 mol/L
• *4: 95% response when ion concentration is changed to 10^-4 mol/L ∼ 10^-1 mol/L

The selection coefficient is a ratio of the limit concentration of coexisting ions (mol/L) to the ion concentration to be measured (mol/L); The value of 1000 means that the coexisting ions can be permitted up to 1000 times the ion measured and ''not acceptable'' means that chemical change occurs in the solid response membrane.
