Horiba Laqua 8202-10C Potassium Ion Electrode, # 3014094404

---

Measuring range: 0.04 to 39,000 mg/L K⁺ | (10^-6 to 1 mol/L) K⁺

---

pH Range: 3.9 mg/L (10^-4 mol/L) K⁺ | pH 5 to 11

---

Applicable temperature range: 0 to 50ºC

---

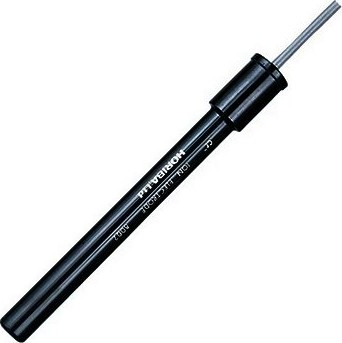

The Horiba Laqua 8202-10C Potassium Ion Electrode is an Ion Selective Electrode - the reference electrode and ion sensing electrode are built in one body.

HORIBA's superior electrode technology has produced unparalleled tough pH glass bulbs and unique flat sensors. Electrodes have different designs to cater a wide range of applications - from pure water to complex samples. Potassium ion electrode 8202-10C.

Specifications

Measuring range	0.04 to 39,000 mg/L K+ (10-6 to 1 mol/L) K+
pH range	3.9 mg/L (10-4 mol/L) K+ pH 5 to 11
Applicable temperature range	0 to 50ºC
Response time (90%)	Within 15 seconds*3
Applicable reference electrode	2565A
Selection coefficient	Rb+ = 0.4 Cs+ = 3 NH4+ = 70 Li+、Na+、Mg2+、Ca2+、Sr2+、Ba2+ = over 1,000

The response time is the time which is required to reach 90% response when the ion concentration is gradually changed from 10^-4 mol/L to 10^-2 mol/L with the solution stirred. Exception:

• *1: 90% response when ion concentration is changed to 10^-6 mol/L ∼ 10^-2 mol/L
• *2: 95% response when ion concentration is changed to 10^-3 mol/L ∼ 10^-1 mol/L
• *3: 95% response when ion concentration is changed to 10^-4 mol/L ∼ 10^-2 mol/L
• *4: 95% response when ion concentration is changed to 10^-4 mol/L ∼ 10^-1 mol/L

The selection coefficient is a ratio of the limit concentration of coexisting ions (mol/L) to the ion concentration to be measured (mol/L); The value of 1000 means that the coexisting ions can be permitted up to 1000 times the ion measured and ''not acceptable'' means that chemical change occurs in the solid response membrane.

Downloads

Horiba Laqua 8202-10C Potassium Ion Electrode, 3014094404 - Brochure
