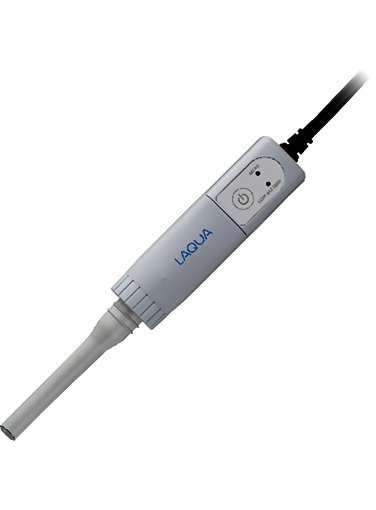

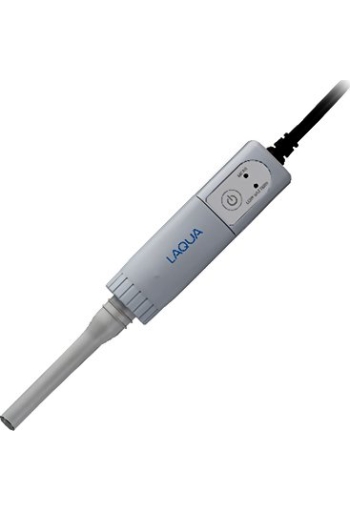

Horiba Laqua 0040N-10D ISFET pH Electrode Part No. 3200862858 (replaces 0040-10D No. 3200367925)
pH Range: 0 to 14
Temperature Range: 0 to 60 °C
Liquid Junction: Porous sintered polyethylene
The Horiba Laqua 0040-10D ISFET pH Electrode has a semiconductor based sensor located less than 100 µm from theflat surface of the tip.
Features
- pH measurement can be perfomed on a single drop of liquid sample or moist surface of solid or semi-solid sample.
- Semiconductor based sensor eliminates concern that the electrode will get damaged. It will not crack or break like conventional glass electrodes.
- Can be stored dry
- Waterproof
- Replaceable sensor (Model 0141)
Applications
- Environments where glass material cannot be used.
- pH measurement of gelatinous materials in shallow containers (e.g., nutrient agar in petri dishes)
- Surface measurement of skin, meat, cloth and paper.
- If solid or semi-solid sample has minute amount of moisture, wet the surface with pure water prior to measurement.
- Clean with neutral detergent and warm water after measuring oily samples
Specifications
pH Range | 0 to 14 |
Temperature Range | 0 to 60 °C |
Liquid Junction | Porous sintered polyethylene |
Temperature sensor | Integrated |
Cable Length | 1m |
Connectors | BNC, phono jack |
Overall Length | 190.6mm |
Diameter | 16mm |
