This product has been discontinued

Product Description

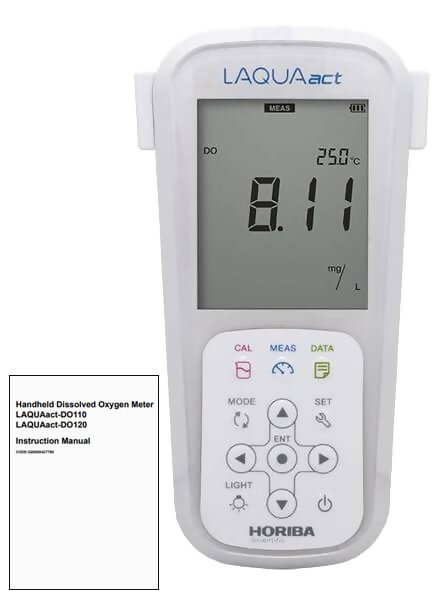

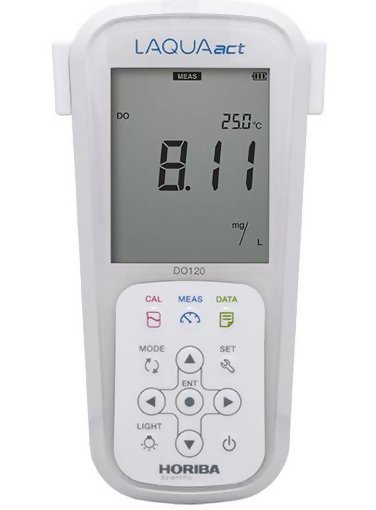

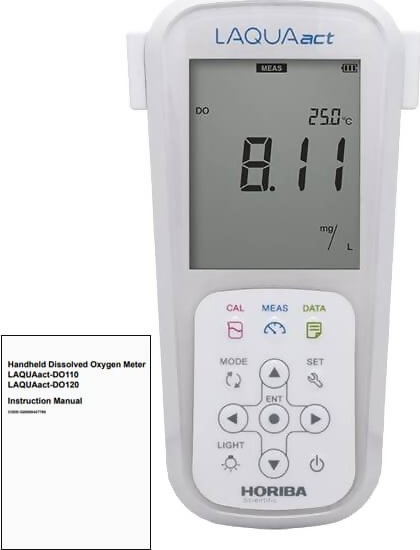

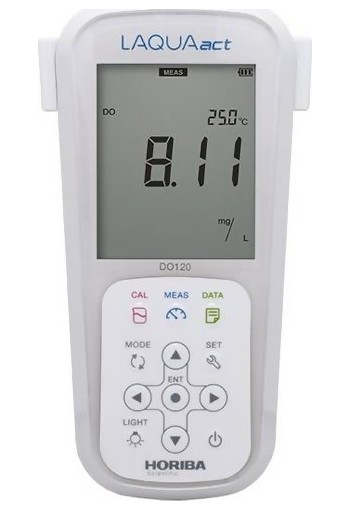

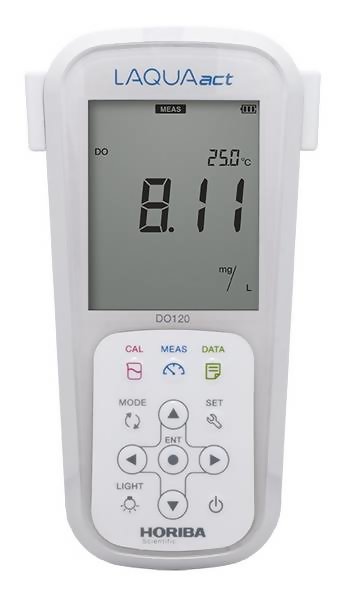

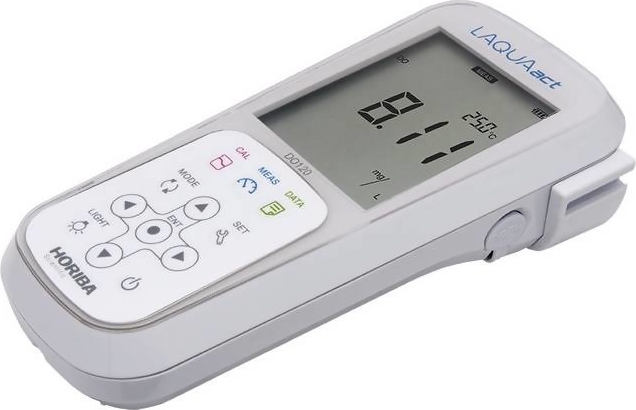

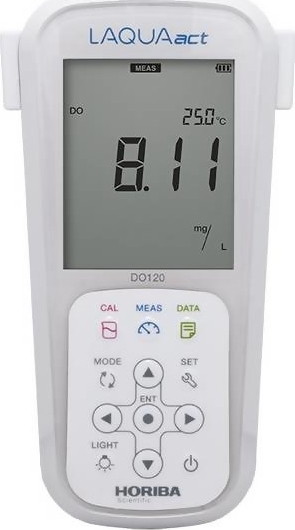

Horiba LAQUAact DO-120 Portable Water Quality Dissolved Oxygen Meter, # 3200739849
Measures dissolved oxygen (DO) concentration in mg/L and % saturation units
0.01 mg/L or 0.1% resolution
Compensates salinity, temperature, and atmospheric pressure
Up to 2 calibration points
Auto log data


The Horiba LAQUAact DO-120 Portable Water Quality Dissolved Oxygen Meter is designed for use with one hand and with an IP67 waterproof rating and shock-resistant casing. The DO-120 meter can be used for long periods, even in dark places, making it ideal for field measurements in rivers and lakes.


line
Kit Contents
line

  • Horiba LAQUAact DO-120 Portable Water Quality Dissolved Oxygen Meter
  • Instrutions Manual


line
Features
line

  • Measures dissolved oxygen (DO) concentration in mg/L and % saturation units
  • 0.01 mg/L or 0.1% resolution
  • Compensates salinity, temperature, and atmospheric pressure
  • Up to 2 calibration points
  • Auto log data
  • Built-in memory can store up to 1000 data
  • Auto-shut off (programmable: 1 to 30 minutes)
  • Auto-Hold / Auto-Stable measurement
  • Built-in electrode holder allows 2 electrodes to be attached on both sides of the meter
  • Large backlit LCD: 52mm x 64mm
  • RS232C for connecting the meter to a compatible printer or computer
  • IP67-rated case: waterproof (withstand 30 mins. immersion in 1m depth of water) and dustproof
  • Powered by 2 x AAA (LR03) or Ni-MH batteries or power adaptor
  • Packaged in new molded carrying case
  • 2 years meter warranty


line

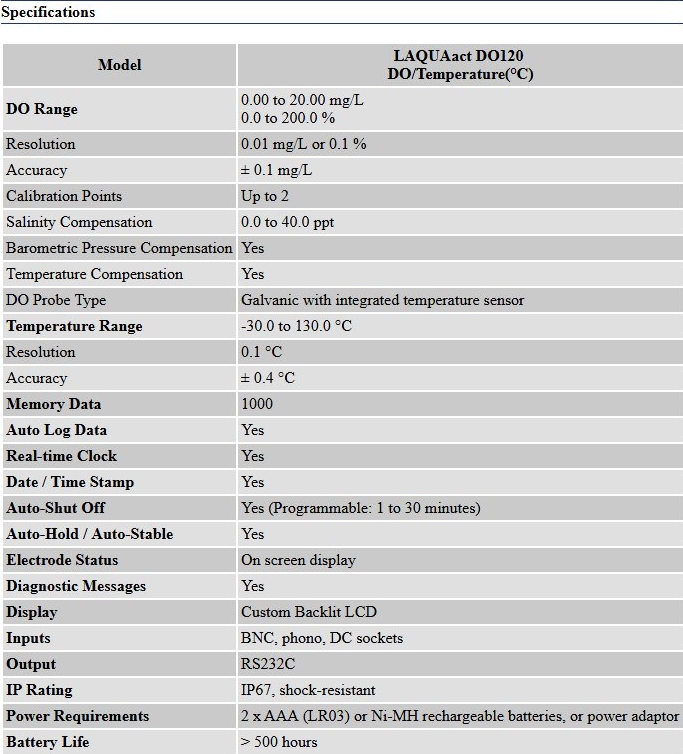

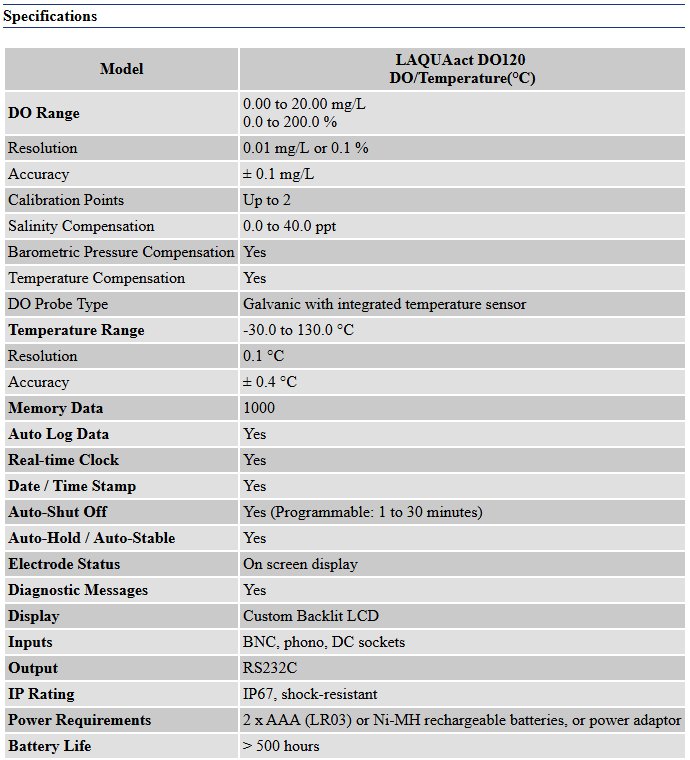

Specifications
line

ModelLAQUAact DO120 DO/Temperature(°C)
DO Range0.00 to 20.00 mg/L
0.0 to 200.0 %
Resolution0.01 mg/L or 0.1 %
Accuracy± 0.1 mg/L
Calibration PointsUp to 2
Salinity Compensation0.0 to 40.0 ppt
Barometric Pressure CompensationYes
Temperature CompensationYes
DO Probe TypeGalvanic with integrated temperature sensor
Temperature Range-30.0 to 130.0 °C
Resolution0.1 °C
Accuracy± 0.4 °C
Memory Data1000
Auto Log DataYes
Real-time ClockYes
Date / Time StampYes
Auto-Shut OffYes (Programmable: 1 to 30 minutes)
Auto-Hold / Auto-StableYes
Electrode StatusOn screen display
Diagnostic MessagesYes
DisplayCustom Backlit LCD
InputsBNC, phono, DC sockets
OutputRS232C
IP RatingIP67, shock-resistant
Power Requirements2 x AAA (LR03) or Ni-MH rechargeable batteries, or power adaptor
Battery Life> 500 hours


line
Related Products
line

9551-20D DO Electrode

  • For field use, immersible, 2m cable Operates with replaceable DO tip 5401 and built-in temperature sensor Waterproof
related

line
Downloads
line

Horiba LAQUAact DO-120 Portable Water Quality Dissolved Oxygen Meter 3200739849- Instruction Manual
Horiba LAQUAact DO-120 Portable Water Quality Dissolved Oxygen Meter 3200739849 - Brochure
