Horiba LAQUAact EC-110K Portable Water Quality Conductivity / Salinity / TDS Meter Kit 3999960170

See More Horiba LAQUAact Portable Meters

Horiba LAQUAact EC-110K Portable Water Quality Conductivity / Salinity / TDS Meter Kit 3999960170

See More Horiba LAQUAact Portable Meters
Price:
$670.00
warrenty

Product Description
Horiba LAQUAact EC-110K Portable Water Quality Conductivity Meter Kit, # 3999960170
Automatic / manual conductivity calibration up to 4 points
Adjustable reference temperature and temperature coefficient
Selectable cell constant and measurement unit
Automatic / manual temperature compensation
Temperature calibration function

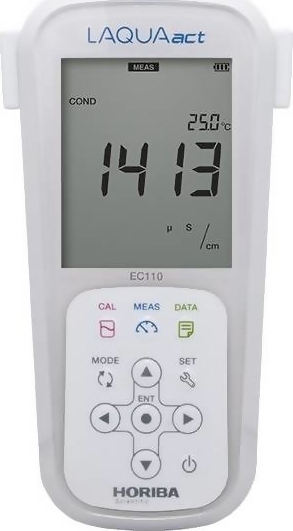

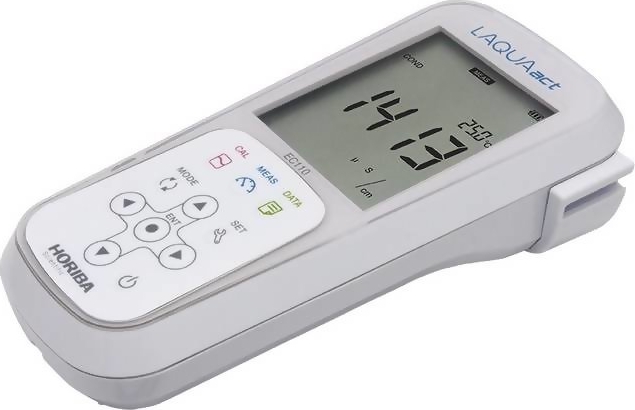

The Horiba LAQUAact EC-110K Portable Water Quality Conductivity / Salinity / TDS Meter is designed for use with one hand and with an IP67 waterproof rating and shock-resistant casing. The EC-110 meter can be used for long periods, even in dark places, making it ideal for field measurements in rivers and lakes.


line

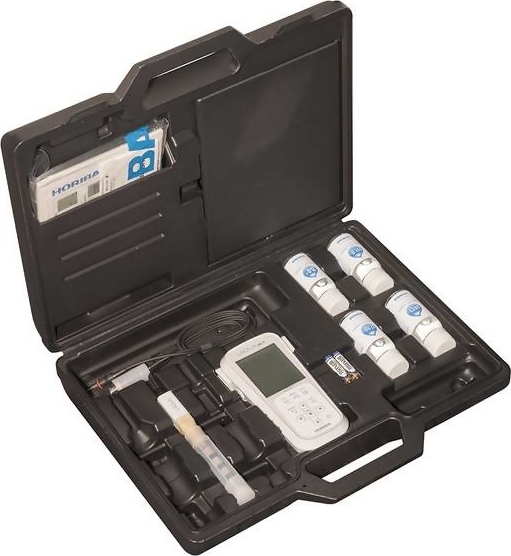

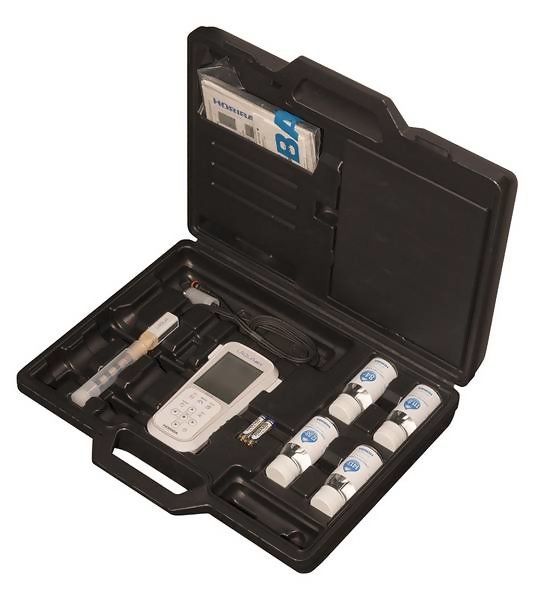

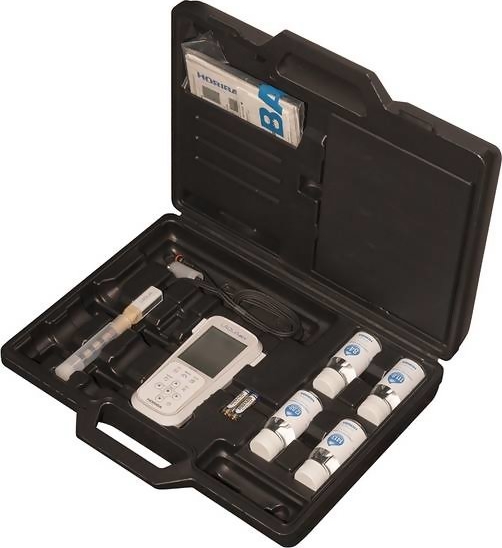

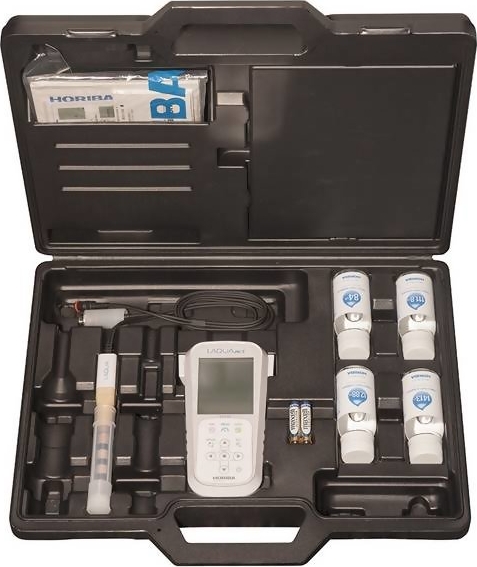

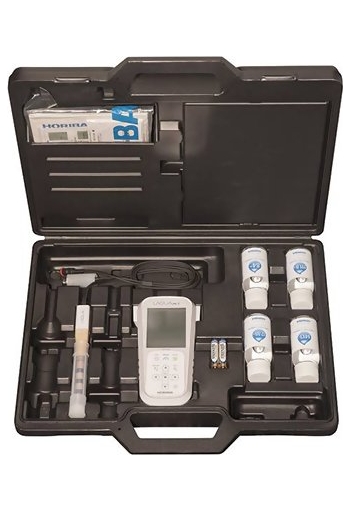

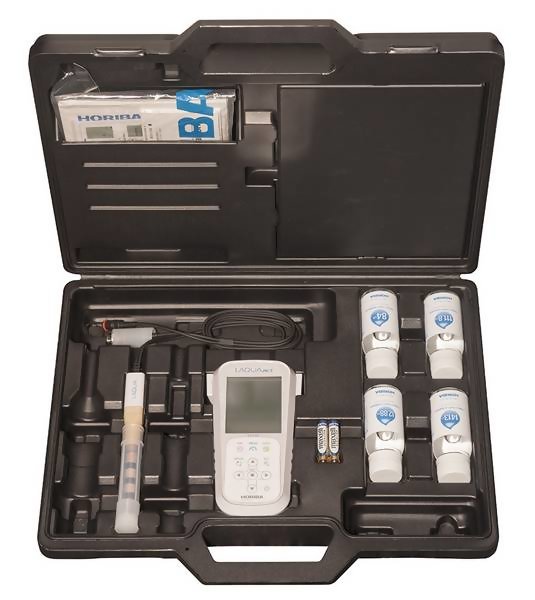

Kit Contents
line

  • Horiba LAQUAact EC-110K Portable Water Quality Conductivity Meter Kit
  • 9382-10D plastic-body, titanium/platinum black conductivity probe (k=1.0) with integrated temperature sensor
  • 84 µS/cm, 1413 µS/cm, 12.88 mS/cm, 111.8 mS/cm conductivity standard solutions (60ml each)
  • Carrying case
  • Instrutions Manual


line
Features
line

  • Automatic / manual conductivity calibration up to 4 points
  • Adjustable reference temperature and temperature coefficient
  • Selectable cell constant and measurement unit
  • Automatic / manual temperature compensation
  • Temperature calibration function
  • Resistivity and total dissolved solids (TDS) conversions from conductivity
  • Four TDS calibration curves for wide range of applications: EN27888, Linear, 442, NaCl
  • Built-in memory can store up to 100 data
  • Auto shut-off (programmable: 1 to 30 minutes)
  • Auto-Hold / Auto-Stable measurement
  • Large LCD: 52mm x 64mm
  • Powered by 2 x AAA batteries (LR03) or Ni-MH rechargeable batteries or power adaptor
  • IP67-rated case: waterproof (withstand 30 mins. immersion in 1m depth of water) and dustproof
  • Packaged in new molded carrying case
  • 2 years meter warranty


line

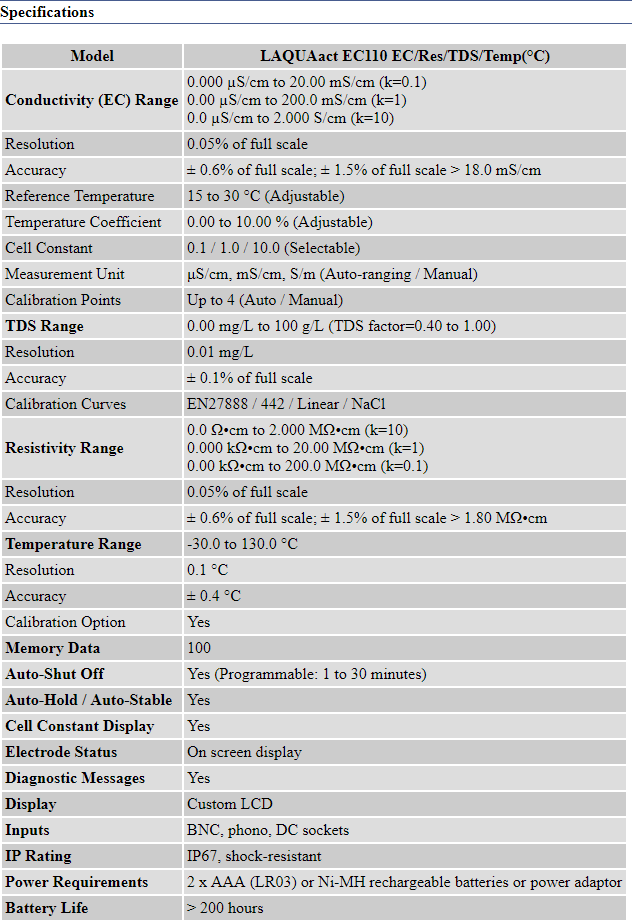

Specifications
line

ModelLAQUAact EC110EC/Res/TDS/Temp(°C)
Conductivity (EC) Range0.000 µS/cm to 20.00 mS/cm (k=0.1)
0.00 µS/cm to 200.0 mS/cm (k=1)
0.0 µS/cm to 2.000 S/cm (k=10)
Resolution0.05% of full scale
Accuracy± 0.6% of full scale; ± 1.5% of full scale >18.0 mS/cm
Reference Temperature15 to 30 °C (Adjustable)
Temperature Coefficient0.00 to 10.00 % (Adjustable)
Cell Constant0.1 / 1.0 / 10.0 (Selectable)
Measurement UnitμS/cm, mS/cm, S/m (Auto-ranging / Manual)
Calibration PointsUp to 4 (Auto / Manual)
TDS Range0.00 mg/L to 100 g/L (TDS factor=0.40 to 1.00)
Resolution0.01 mg/L
Accuracy± 0.1% of full scale
Calibration CurvesEN27888 / 442 / Linear / NaCl
Resistivity Range0.0 Ω•cm to 2.000 MΩ•cm (k=10)
0.000 kΩ•cm to 20.00 MΩ•cm (k=1)
0.00 kΩ•cm to 200.0 MΩ•cm (k=0.1)
Resolution0.05% of full scale
Accuracy± 0.6% of full scale; ± 1.5% of full scale >1.80 MΩ•cm
Temperature Range-30.0 to 130.0 °C
Resolution0.1 °C
Accuracy± 0.4 °C
Calibration OptionYes
Memory Data100
Auto-Shut OffYes (Programmable: 1 to 30 minutes)
Auto-Hold / Auto-StableYes
Cell Constant DisplayYes
Electrode StatusOn screen display
Diagnostic MessagesYes
DisplayCustom LCD
InputsBNC, phono, DC sockets
IP RatingIP67, shock-resistant
Power Requirements2 x AAA (LR03) or Ni-MH rechargeable batteries or power adaptor
Battery Life>200 hours


line
Related Products
line

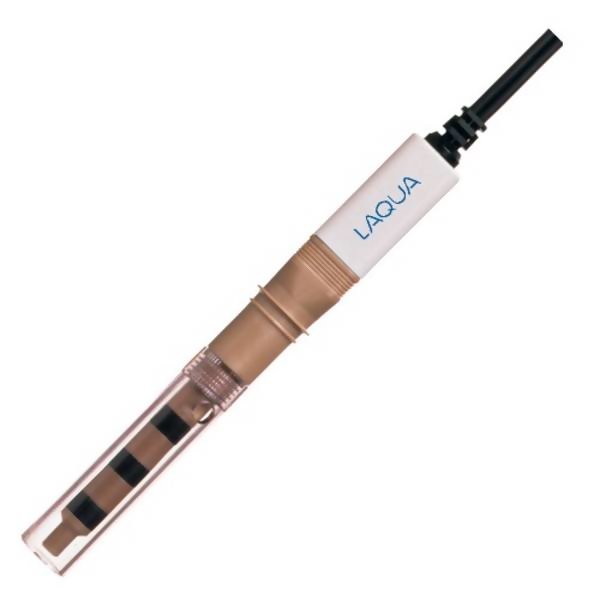

9382-10D Conductivity Cell (Submersible Type)

  • For general purpose use Plastic body, Titanium/Platinum black, k=1, conductivity cell with integrated temperature sensor Waterproof
related

line

Conductivity Standard Solution Kit
Model No: 503-S

  • 84 uS/cm Conductivity Solution at 25°C 250ml
  • 1413 uS/cm Conductivity Solution at 25°C 250ml
  • 12.88 mS/cm Conductivity Solution at 25°C 250ml
  • 111.8 mS/cm Conductivity Solution at 25°C 250ml
related


line
Downloads
line

Horiba LAQUAact EC-110K Portable Water Quality Conductivity Meter Kit 3999960170 - Instruction Manual
Horiba LAQUAact EC-110K Portable Water Quality Conductivity Meter Kit 3999960170- Brochure
