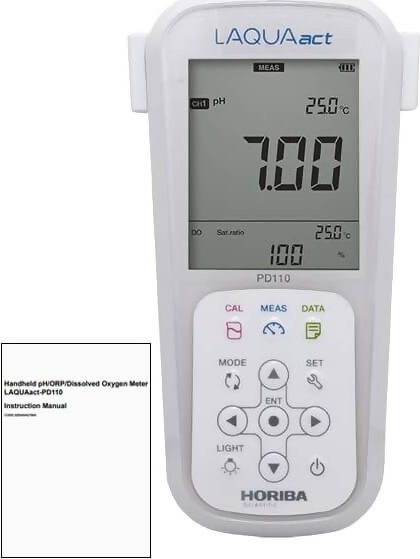

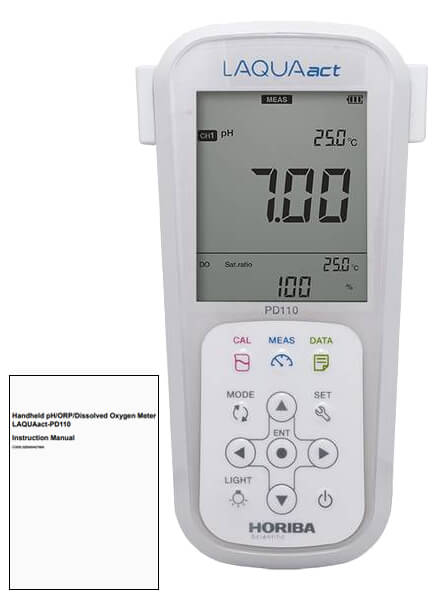

Horiba LAQUAact PD-110 Portable pH / ORP / Dissolved Oxygen Meter, # 3200739843

See More Horiba LAQUAact Portable Meters

Horiba LAQUAact PD-110 Portable pH / ORP / Dissolved Oxygen Meter, # 3200739843

Dual channel, switchable display

Automatic pH calibration up to 5 points using NIST, USA or Custom pH buffers

0.01 pH resolution

Offset and slope display

Automatic / manual temperature compensation

The Horiba LAQUAact PD-110 Portable pH / ORP / Dissolved Oxygen Meter is designed for use with one hand and with an IP67 waterproof rating and shock-resistant casing. The PD-110 meter can be used for long periods, even in dark places, making it ideal for field measurements in rivers and lakes.

line
Kit Contents
line

Horiba LAQUAact PD-110K Portable pH / ORP / Dissolved Oxygen Meter
Instrutions Manual

line
Features
line

Dual channel, switchable display
Automatic pH calibration up to 5 points using NIST, USA, or custom pH buffers
0.01 pH resolution
Offset and slope display
Automatic / manual temperature compensation
Temperature calibration function
Measures dissolved oxygen (DO) concentration in mg/L and % saturation units
0.01 mg/L or 0.1% DO resolution
Compensates salinity, temperature, and atmospheric pressure
Up to 2 DO calibration points
Auto log data
Built-in memory can store up to 1000 data
Auto-shut off (programmable: 1 to 30 minutes)
Auto-Hold / Auto-Stable measurement
Caibration alarm (programmable: 1 to 400 days)
Built-in electrode holder allows 2 electrodes to be attached on both sides of the meter
Large backlit LCD: 52mm x 64mm
RS232C output for connecting the meter to compatible printer or computer
IP67-rated case: waterproof (withstand 30 mins. immersion in 1m depth of water) and dustproof
Powered by 2 x AAA (LR03) or Ni-MH rechargeable batteries or power adaptor
Packaged in new molded carrying case
2 years meter warranty

line
Specifications
line

Model	LAQUAact PD110 Dual Channel pH/ORP/DO/Temperature(°C)
pH Range	-2.00 to 16.00 pH
Resolution	0.01 pH
Accuracy	± 0.01 pH
Calibration Points	Up to 5
Buffer Options	USA / NIST / Custom
ORP Range	± 2000 mV
Resolution	1 mV
Accuracy	± 1mV or 0.2% of reading (Whichever is greater)
DO Range	0.00 to 20.00 mg/L / 0.0 to 200.0 %
Resolution	0.01 mg/L or 0.1 %
Accuracy	± 0.1 mg/L
Salinity Compensation	0.0 to 40.0 ppt
Barometric Pressure Compensation	Yes
Temperature Compensation	Yes
Calibration Points	Up to 2
DO Probe	Galvanic with integrated temperature sensor
Temperature Range	-30.0 to 130.0 °C
Resolution	0.1 °C
Accuracy	± 0.4 °C
Calibration Option	Yes
Memory Data	1000
Auto Log Data	Yes
Real-time Clock	Yes
Date / Time Stamp	Yes
Auto-Shut Off	Yes (Programmable: 1 to 30 minutes)
Auto-Hold / Auto-Stable	Yes
Offset / Slope Display	Yes (Independent acid and alkaline slopes depending on calibration)
Calibration Alarm	Yes (Programmable: 1 to 400 days)
Electrode Status	On screen display
Diagnostic Messages	Yes
Display	Custom Backlit LCD / Dual Channel / Switchable Display
Inputs	2 x BNC, 2 x phono, DC sockets
Output	RS232C
IP Rating	IP67, shock-resistant
Power Requirements	2 x AAA (LR03) or Ni-MH rechargeable batteries or power adaptor
Battery Life	>500 hours
