Horiba LAQUAact PD-110K Portable pH / ORP / Dissolved Oxygen Meter Kit, # 3999960175

Dual channel, switchable display

Automatic pH calibration up to 5 points using NIST, USA or Custom pH buffers

0.01 pH resolution

Offset and slope display

Automatic / manual temperature compensation

The Horiba LAQUAact PD-110K Portable pH / ORP / Dissolved Oxygen Meter is designed for use with one hand and with an IP67 waterproof rating and shock-resistant casing. The PD-110 meter can be used for long periods, even in dark places, making it ideal for field measurements in rivers and lakes.

line

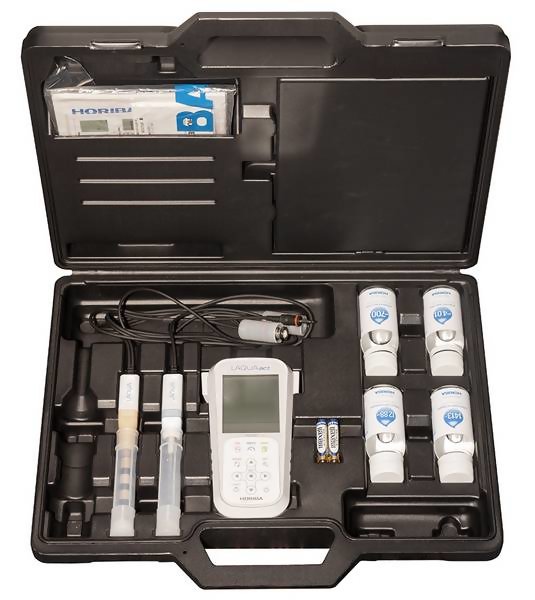

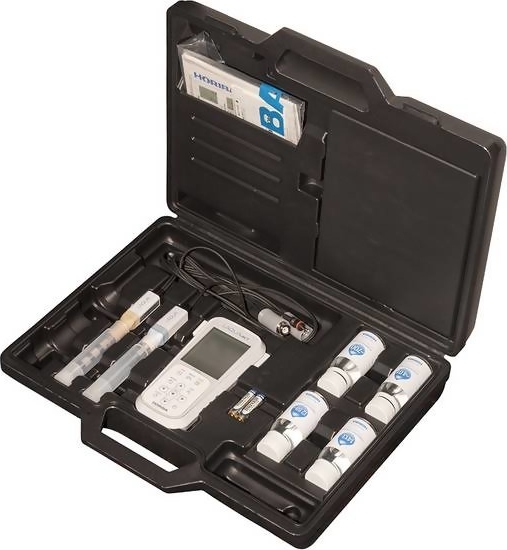

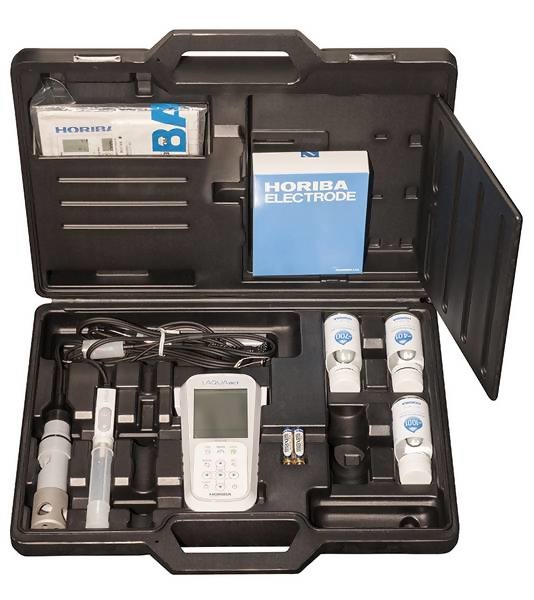

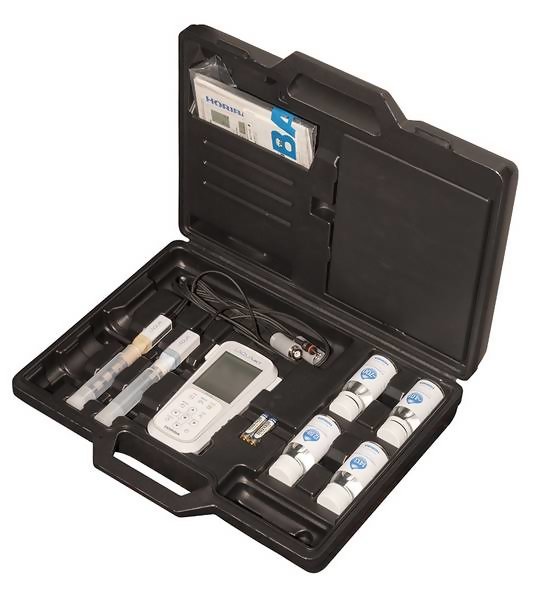

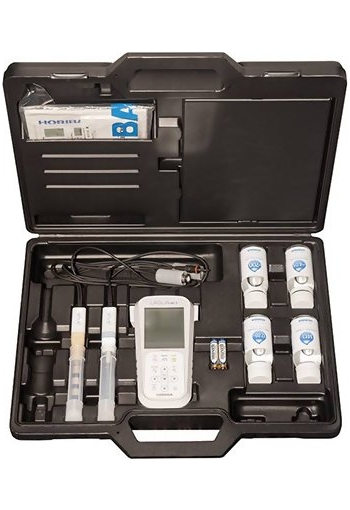

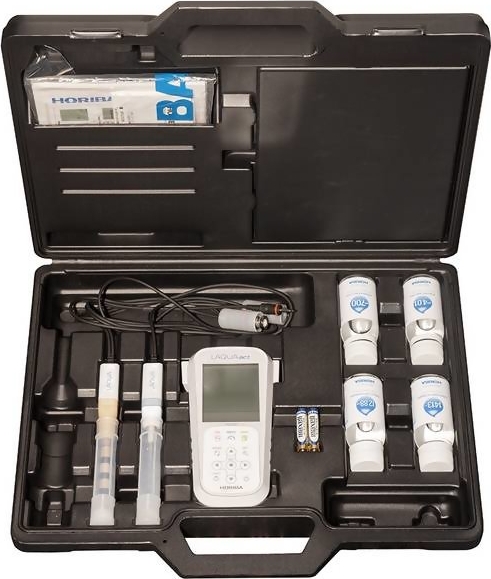

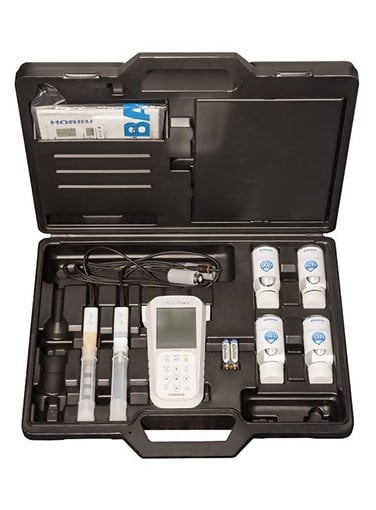

Kit Contents
line

Horiba LAQUAact PD-110K Portable pH / ORP / Dissolved Oxygen Meter Kit
9651-10D plastic-body, gel-filled pH electrode with integrated temperature sensor
9551-20D Galvanic DO probe with integrated temperature sensor, 2m cable
4.01, 7.00, 10.01 pH buffers (60ml each)
Carrying case
Instrutions Manual

line
Features
line

Dual channel, switchable display
Automatic pH calibration up to 5 points using NIST, USA, or custom pH buffers
0.01 pH resolution
Offset and slope display
Automatic / manual temperature compensation
Temperature calibration function
Measures dissolved oxygen (DO) concentration in mg/L and % saturation units
0.01 mg/L or 0.1% DO resolution
Compensates salinity, temperature, and atmospheric pressure
Up to 2 DO calibration points
Auto log data
Built-in memory can store up to 1000 data
Auto-shut off (programmable: 1 to 30 minutes)
Auto-Hold / Auto-Stable measurement
Caibration alarm (programmable: 1 to 400 days)
Built-in electrode holder allows 2 electrodes to be attached on both sides of the meter
Large backlit LCD: 52mm x 64mm
RS232C output for connecting the meter to compatible printer or computer
IP67-rated case: waterproof (withstand 30 mins. immersion in 1m depth of water) and dustproof
Powered by 2 x AAA (LR03) or Ni-MH rechargeable batteries or power adaptor
Packaged in new molded carrying case
2 years meter warranty

line
Specifications
line

Model	LAQUAact PD110 Dual Channel pH/ORP/DO/Temperature(°C)
pH Range	-2.00 to 16.00 pH
Resolution	0.01 pH
Accuracy	± 0.01 pH
Calibration Points	Up to 5
Buffer Options	USA / NIST / Custom
ORP Range	± 2000 mV
Resolution	1 mV
Accuracy	± 1mV or 0.2% of reading (Whichever is greater)
DO Range	0.00 to 20.00 mg/L / 0.0 to 200.0 %
Resolution	0.01 mg/L or 0.1 %
Accuracy	± 0.1 mg/L
Salinity Compensation	0.0 to 40.0 ppt
Barometric Pressure Compensation	Yes
Temperature Compensation	Yes
Calibration Points	Up to 2
DO Probe	Galvanic with integrated temperature sensor
Temperature Range	-30.0 to 130.0 °C
Resolution	0.1 °C
Accuracy	± 0.4 °C
Calibration Option	Yes
Memory Data	1000
Auto Log Data	Yes
Real-time Clock	Yes
Date / Time Stamp	Yes
Auto-Shut Off	Yes (Programmable: 1 to 30 minutes)
Auto-Hold / Auto-Stable	Yes
Offset / Slope Display	Yes (Independent acid and alkaline slopes depending on calibration)
Calibration Alarm	Yes (Programmable: 1 to 400 days)
Electrode Status	On screen display
Diagnostic Messages	Yes
Display	Custom Backlit LCD / Dual Channel / Switchable Display
Inputs	2 x BNC, 2 x phono, DC sockets
Output	RS232C
IP Rating	IP67, shock-resistant
Power Requirements	2 x AAA (LR03) or Ni-MH rechargeable batteries or power adaptor
Battery Life	>500 hours
