Horiba LAQUAact pH-120 Portable Water Quality pH / ORP Meter, # 3200739845

---

Automatic pH calibration up to 5 points using NIST, USA or Custom pH buffers

---

0.01 pH resolution

---

Offset and slope display

---

Automatic / manual temperature compensation

---

Temperature calibration function

---

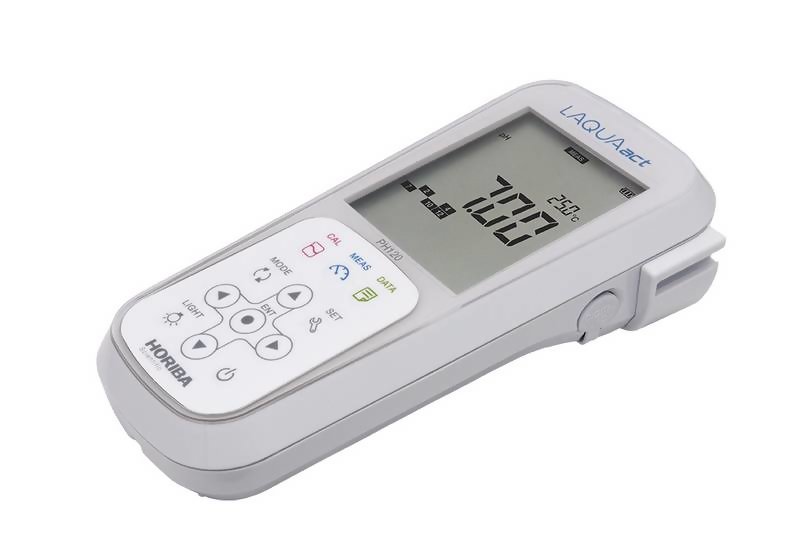

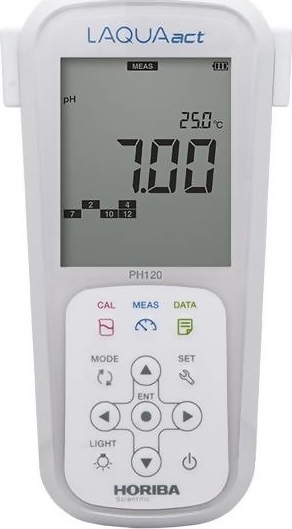

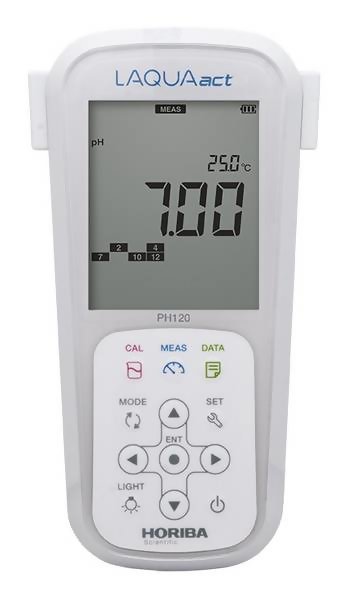

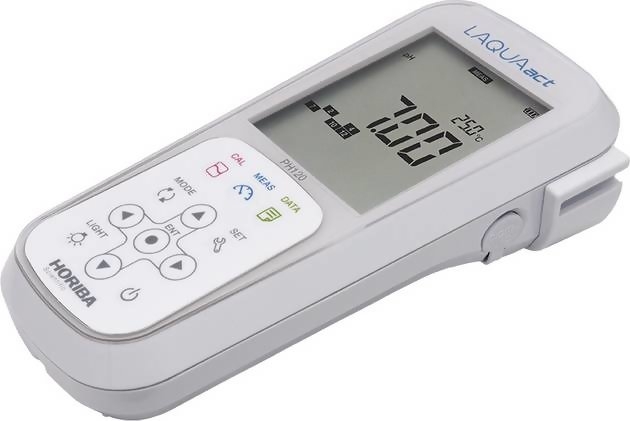

The Horiba LAQUAact pH-120 Portable Water Quality pH / ORP Meter is designed for use with one hand and with an IP67 waterproof rating and shock-resistant casing, the pH-120 meter can be used for long periods, even in dark places, making it ideal for field measurements in rivers and lakes.

Kit Contents

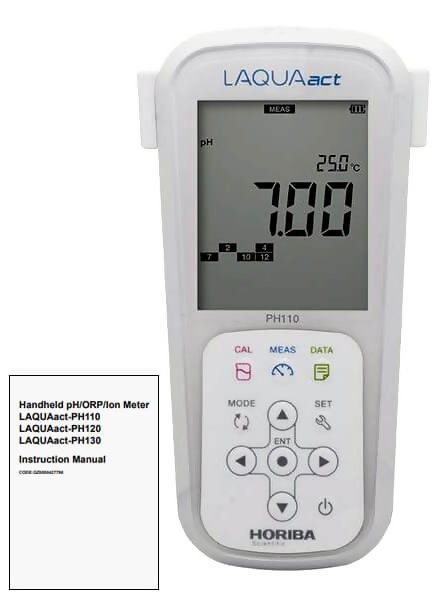

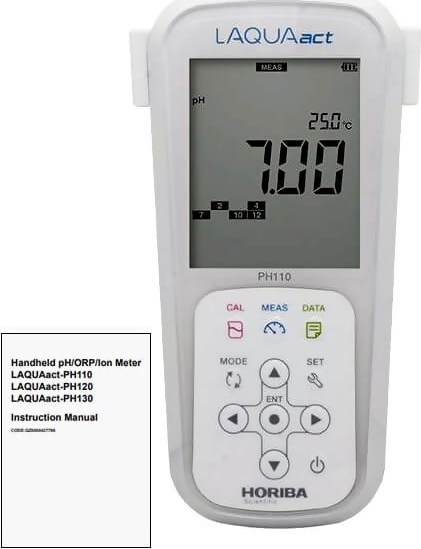

Horiba LAQUAact pH-120 Portable Water Quality pH / ORP Meter Instrutions Manual

Features

• Automatic pH calibration up to 5 points using NIST, USA or Custom pH buffers
• 0.01 pH resolution
• Offset and slope display
• Automatic / manual temperature compensation
• Temperature calibration function
• Auto log data
• Built-in memory can store up to 1000 data
• Auto-shut off (programmable: 1 to 30 minutes)
• Auto-Hold / Auto-Stable measurement
• Calibration alarm (programmable 1 to 400 days)
• Built-in electrode holder allows 2 electrodes to be attached on both sides of the meter
• Large backlit LCD: 52mm x 64mm
• RS232C output for connecting the meter to a compatible printer or computer
• IP67-rated case: waterproof (withstand 30 mins. immersion in 1m depth of water) and dustproof
• Powered by 2 x AAA (LR03) or Ni-MH rechargeable batteries or power adaptor
• Packaged in new molded carrying case
• 2 years meter warranty

Specifications

Model	LAQUAact PH110 pH/ORP/Temperature
pH Range	-2.00 to 16.00 pH
Resolution	0.01 pH
Accuracy	± 0.01 pH
Calibration Points	Up to 5
Buffer Options	USA, NIST
ORP Range	± 2000 mV
Resolution	1 mV
Accuracy	± 1mV or 1% of reading (whichever is greater)
Temperature Range	-30.0 to 130.0°C
Resolution	0.1°C
Accuracy	± 0.4°C
Calibration Option	Yes
Memory Data	100
Auto-Shut Off	Yes (Programmable: 1 to 30 minutes)
Auto-Hold / Auto-Stable	Yes
Offset / Slope Display	Yes (Independent acid and alkaline slopes depending on calibration)
Electrode Status	On screen display
Diagnostic Messages	Yes
Display	Custom LCD
Inputs	BNC, phono, DC sockets
IP Rating	IP67, shock-resistant
Power Requirements	2 x AAA (LR03) or Ni-MH rechargeable batteries or power adaptor
Battery Life	>1000 hours

Related Products

9651-10D - Plastic Body This plastic-body, gel-filled pH electrode with integrated temperature sensor is ideal for field testing. The body is durable and no need to refill the electrode

pH 4.01 Buffer Solution - Model No: 500-4 pH 4.01 ±0.02 Buffer Solution at 25°C 250ml

pH 7.00 Buffer Solution - Model No: 500-7 pH 7.00 ±0.02 at 25°C 500ml

pH 10.01 Buffer Solution - Model No: 500-10 pH 10.01 ±0.02 at 25°C 500ml

Downloads

Horiba LAQUAact pH-120 Portable Water Quality pH Meter 3200739845 - Instruction Manual

Horiba LAQUAact pH-120 Portable Water Quality pH Meter 3200739845 - Brochure
