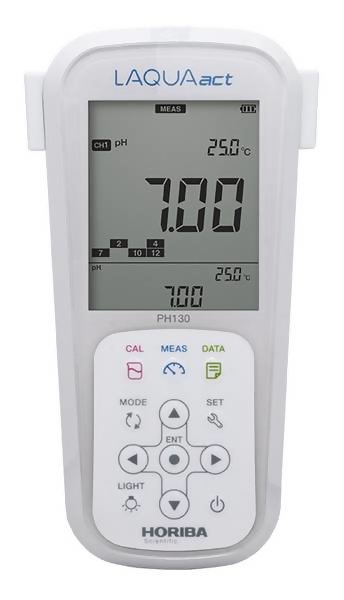

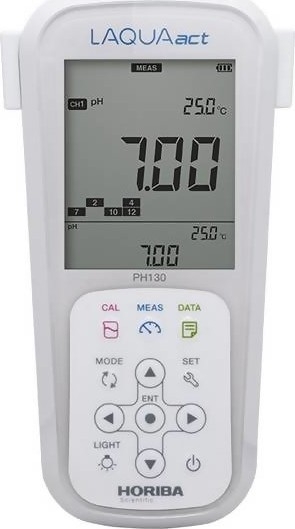

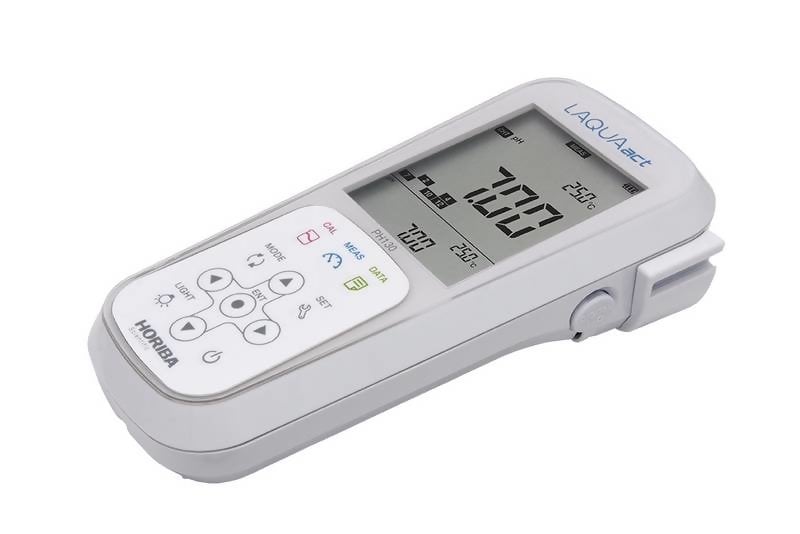

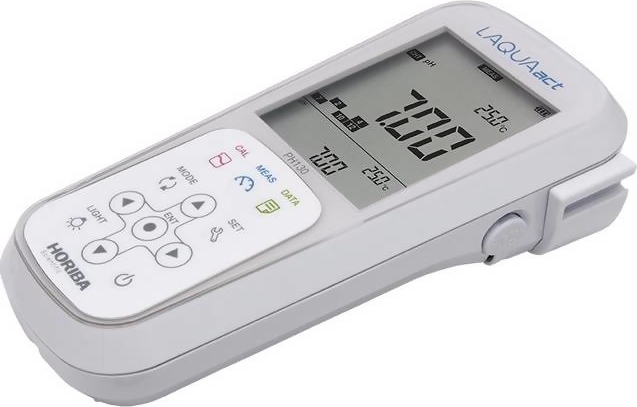

Horiba LAQUAact pH-130 Portable Water Quality pH / ORP / Ion Meter, # 3200739846

See More Horiba LAQUAact Portable Meters

Horiba LAQUAact pH-130 Portable Water Quality pH / ORP / Ion Meter, # 3200739846

Dual channel, switchable display

Automatic pH calibration up to 5 points using NIST, USA or Custom pH buffers

0.01 pH resolution

Offset and slope display

Ion calibration up to 5 points

The Horiba LAQUAact pH-130 Portable Water Quality pH / ORP / Ion Meter is designed for use with one hand and with an IP67 waterproof rating and shock-resistant casing, the pH-130 meter can be used for long periods, even in dark places, making it ideal for field measurements in rivers and lakes.

line

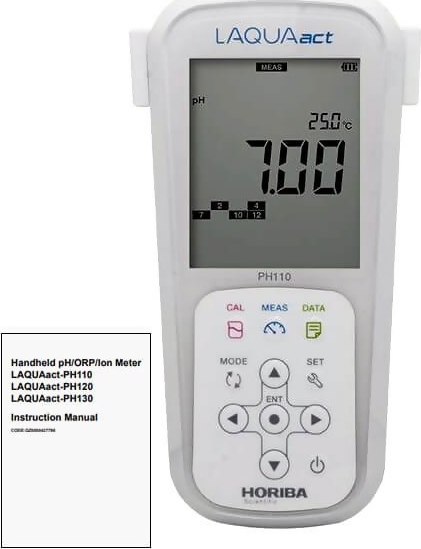

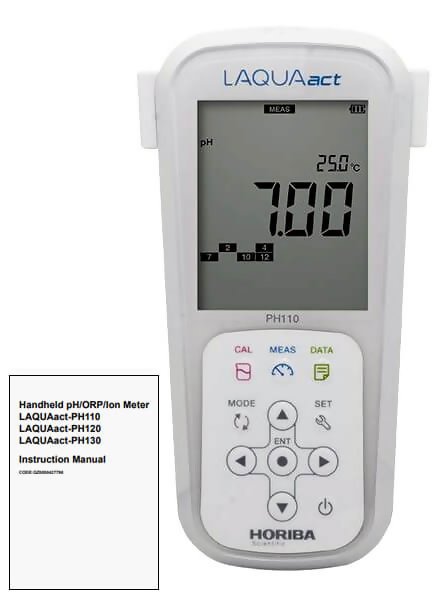

Kit Contents
line

Horiba LAQUAact pH-130 Portable Water Quality pH / ORP / Ion Meter
Instrutions Manual

line
Features
line

Dual channel, switchable display
Automatic pH calibration up to 5 points using NIST, USA or Custom pH buffers
0.01 pH resolution
Offset and slope display
Ion calibration up to 5 points
Automatic / manual temperature compensation
Temperature calibration function
Auto log data
Built-in memory can store up to 1000 data
Auto-shut off (programmable: 1 to 30 minutes)
Auto-Hold / Auto-Stable measurement
Calibration alarm (programmable 1 to 400 days)
Built-in electrode holder allows 2 electrodes to be attached on both sides of the meter
Large backlit LCD: 52mm x 64mm
RS232C output for connecting the meter to a compatible printer or computer
IP67-rated case: waterproof (withstand 30 mins. immersion in 1m depth of water) and dustproof
Powered by 2 x AAA (LR03) or Ni-MH rechargeable batteries or power adaptor
Packaged in new molded carrying case
2 years meter warranty

line

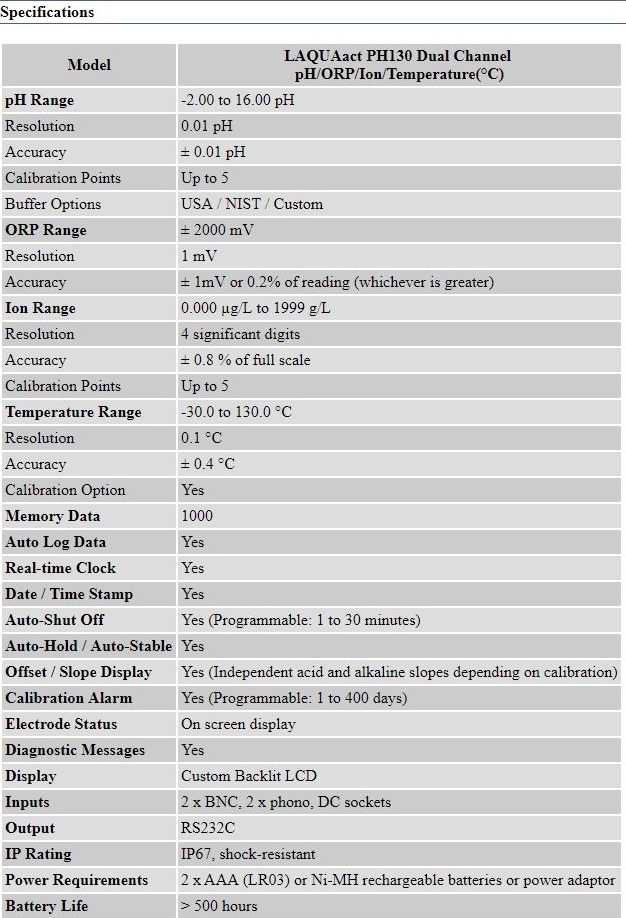

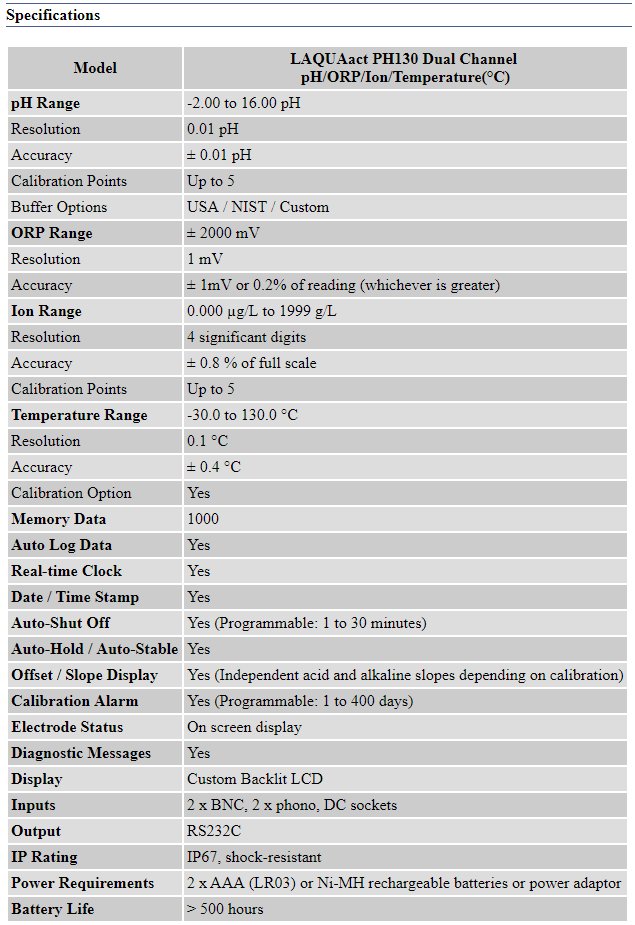

Specifications
line

Model	LAQUAact PH130 Dual Channel pH / ORP / Ion / Temperature
pH Range	-2.00 to 16.00 pH
Resolution	0.01 pH
Accuracy	± 0.01 pH
Calibration Points	Up to 5
Buffer Options	USA, NIST, Custom
ORP Range	± 2000 mV
Resolution	1 mV
Accuracy	± 1mV or 1% of reading (whichever is greater)
Ion Range	0.00 µg/L to 1999 g/L
Resolution	3 significant digits
Accuracy	±0.8% F.S.
Calibration Points	Up to 5
Temperature Range	-30.0 to 130.0°C
Resolution	0.1°C
Accuracy	± 0.4°C
Calibration Option	Yes
Memory Data	1000
Auto Log Data	Yes
Real-time Clock	Yes
Date / Time Stamp	Yes
Auto-Shut Off	Yes (Programmable: 1 to 30 minutes)
Auto-Hold / Auto-Stable	Yes
Offset / Slope Display	Yes (Independent acid and alkaline slopes depending on calibration)
Calibration Alarm	Yes (Programmable: 1 to 400 days)
Electrode Status	On screen display
Diagnostic Messages	Yes
Display	Custom Backlit LCD
Inputs	2 x BNC, 2 x phono, DC sockets
Output	RS232
IP Rating	IP67, shock-resistant
Power Requirements	2 x AAA (LR03) or Ni-MH rechargeable batteries or power adaptor
Battery Life	>500 hours
