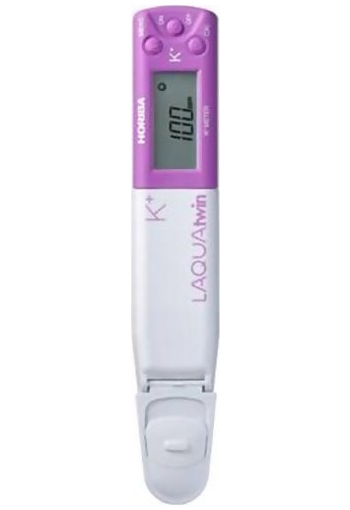

Horiba B-731 LAQUAtwin Compact Potassium Ion Meter 3200456566

See More Horiba LAQUAtwin Compact Meters

This product has been replaced by the LaquaTwin K-11

The B-731 has been replaced by the Horiba LAQUAtwin K-11 Compact Water Quality Potassium Ion Meter 3200689160

Horiba B-731 LAQUAtwin Compact Potassium K+ Ion Meter Part No. 3200456566

Autocalibration function recognizes standards and is user-selectable for either one- or two-point calibration. Measurement range 39ppm - 3900ppm.

Temperature compensation

Only compact meter for a quick measurement of potassium ion using ion selective membrane.Flat sensor technology and 60 years of sensor engineering realizes a reliable and direct measurement of a drop of the sample from 0.3mL. Use sampling sheet (sold separately) to measure down to 0.05mL or more.Unique sensor mechanism realizes direct measurement of solid, viscous, powder samples. No need for a beaker to calibrate or measure. Just drop the standards and sample on the flat sensor, saves you time and minimize wasting your precious sample.This lightweight, pocket-sized meter is suitable for research and industrial applications in diverse fields.

Applications include:
Soil and sap testing for improved agriculture; food testing*

* Detection of ions in water only; electrolytes in oils cannot be measured. Ion measurement can be affected by non-target ions.

line
Features
line

Autocalibration function recognizes standards and is user-selectable for either one- or two-point calibrations..
Auto range change
Temperature compensation
IP67 waterproof
Auto hold
Automatic power off ?30 minutes)

line
Specifications
line

MODEL	B-731
Measurement principle	Ion electrode method
Minimum sample volume	0.3mL or more*1
Measurement range	39 to 3900 ppm(mg/L)(10-3 to 10-1 mol/L) 20 to 2000 kg/10a*2
Display range	0 to 9900ppm(mg/L)*3
Range and Resolution (Valid numbers)	?0 to 1.0ppm : 0.1ppm ?0 to 99ppm : 1ppm ?100 to 990ppm : 10ppm ?1000 to 9900ppm : 100ppm
Calibration	Two-point*4
Accuracy	±10% of reading value.*5
Functions	Auto range change?Temperature compensation?Waterproof*6?Reading locking ?Automatic power off ?30 minutes?
Display	Custom (monochrome) Digital LCD
Operating temperature/humidity	5 to 40?C, 85% or less in relative humidity (no condensation)
Power	CR2032 batteries (x2)
Battery life	Approx. 400 hours in continuous use
Main Material	ABS epoxy
Dimensions /Mass	164mm × 29mm × 20mm (excluding projections)?/ Approx. 50 g (meter only, without batteries)
Accessories included	2 CR2032 batteries/1 Pipette/Instruction manual/Quick manual/Storage case/Standard solution (150ppm&2000ppm)(14mL)/5 pieces of Sampling sheetB

*1 Smaller amount(0.05mL or more) can be measured with the sampling sheet B. (Please close the light shield cover. If a sample that contain particulate, please use ”Sampling sheet holder” (sold separately))
*2 With soil/water sampling ratio of 1:5.
*3 When the measured value is out of the measurement range, the displayed value blinks. It should be used only as a guide.
*4 Selectable between one-point and two-point calibrations.
*5 Repeatability in measurement of a standard solution after calibration using the same standard solution.
*6 IP67?no failure when immersed in water at a depth of 1 meter for 30 minutes. But the product can not be used underwater.

The ion electrode may be subject to interference from other ionic species. The selectivity coefficient reflects the affinity between each ionic species and the electrode, and is used to correct for the influence of competing ions. Please see the Interfering ion influence ? pH range for further details.

line
Related Products
line

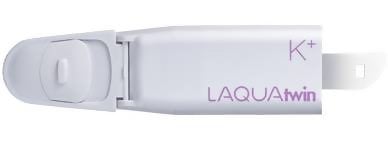

Potassium Ion Sensor S030
