Revolutionary Fluoride Ion Analysis

---

Micro-Sample Measurement Capabilities

---

Extensive Measurement Range

---

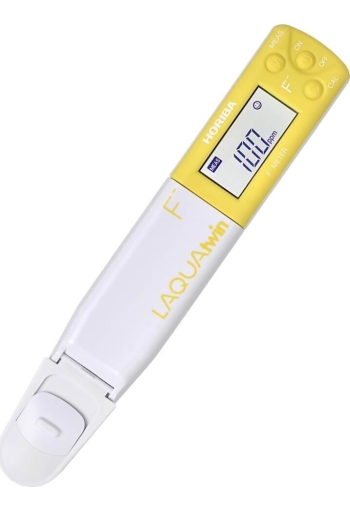

The Horiba LAQUAtwin F-11 Compact Water Quality Fluoride Meter is unique compact meter integrates the electrode, display and sample container to enable simple, effective on-site testing by direct measurement from a single drop.

Kit Contents

---

Features

---

• Revolutionary Fluoride Ion Analysis: Be a part of history with the world’s first and only pocket-sized fluoride ion meter.

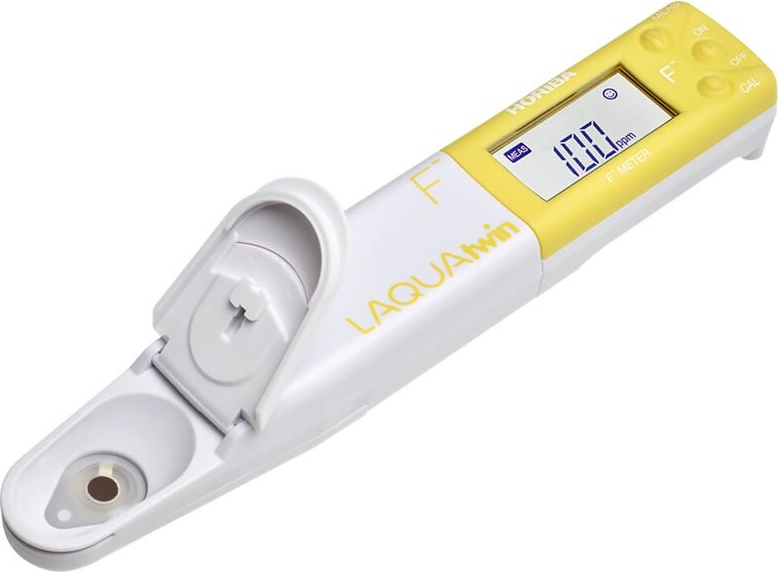

• Micro-Sample Measurement Capabilities: The replaceable sensor, featuring a lanthanum trifluoride crystal, allows measurements in samples as small as 0.3 ml (or 0.1 ml with a sampling sheet).
• Extensive Measurement Range: Covering 0.1 to 990 ppm or mg/L, the meter delivers accurate fluoride ion readings.
• Unmatched Accuracy: With an accuracy of 2% of the actual value, the meter ensures reliable results for your analyses.
• Convenient Two-Point Auto Calibration: Achieve accuracy with two-point calibration, as the meter automatically recognizes and calibrates 1 ppm and 10 ppm fluoride ion standard solutions included in the kit. Customize calibration using other standard solutions that are ten-fold apart in concentration.
• Multiplying Compensation Function: Considering sample dilution in the reading, the meter features a multiplying compensation function to calculate the correct concentration.
• Auto Stable & Auto Hold Measurement Modes: Assisting users record stable readings, the meter displays smiley indicator and can freeze the reading.
• Temperature Calibration: Displaying temperatures up to 50.0°C, the meter allows for temperature correction through its calibration function.
• IP67 Rating: Waterproof and dustproof meter with digital LCD and backlit display

Specifications

---

Measurement principle	Ion selective electrode
Minimum sample volume	0.3 ml (0.01 ml with sampling sheet B)
Measurement range	0.1 to 990 ppm (mg/L)
Resolution	0.1 to 9.9 ppm: 0.1 ppm 10 to 99 ppm: 1 ppm 100 to 990 ppm: 10 ppm
Accuracy	± 2% of actual value
Maximum calibration points	2
Temperature display / resolution	0 to 50.0 ⁰C / 0.1 ⁰C
Functions	Automatic standard recognition Changeable Low and High calibration values Temperature calibration Multiplying compensation (0.01 to 9.90) Auto hold / Auto stable measurement modes Automatic power off (30 mins.) Low battery indicator IP67 water / dust proof Replaceable sensor
Display	Custom (monochrome) digital LCD with backlight
Operating temperature / humidity	5 to 40.0 ⁰C / ≤ 85% in relative humidity (no condensation)
Battery life	Approx. 400 hrs. continuous use without backlight
Materials	ABS epoxy body / LaF3 crystal sensor
Dimensions	164 x 29 x 20 mm (excluding projections)
Mass	Approx. 55g (including sensor and batteries)

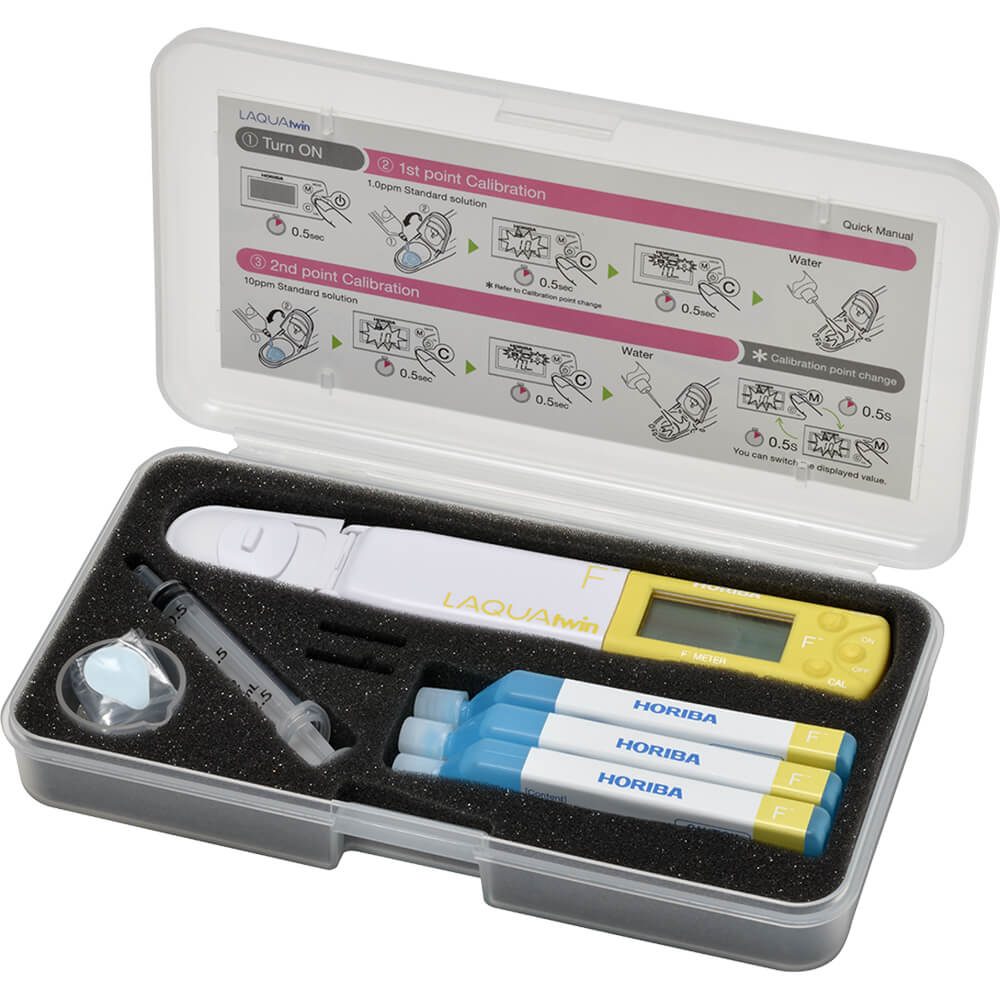

Accessories included	1 & 10 ppm fluoride standards (14 ml each), TISAB (14 ml), 5-ml beaker, sampling sheet B (5 pcs), syringe, CR2032 batteries (2 pcs), instruction & quick manuals, storage case
