Name: Horiba LAQUAtwin Model NO3-11 Compact Nitrate Ion Meter, # 3200689162
Brand: Horiba
SKU: 1502

Horiba LAQUAtwin Model NO3-11 Compact Nitrate Ion Meter, # 3200689162

See More Horiba LAQUAtwin Compact Meters

Horiba LAQUAtwin Model NO3-11 Compact Nitrate Ion Meter, # 3200689162 (replaces Model B-743)

Minimum sample volume: 0.3ml (0.05ml with sampling sheet B)

Up to 2 calibration points

Auto standard recognition

Changeable high and low calibration values

Multiplication compensation: 0.01 to 9.90

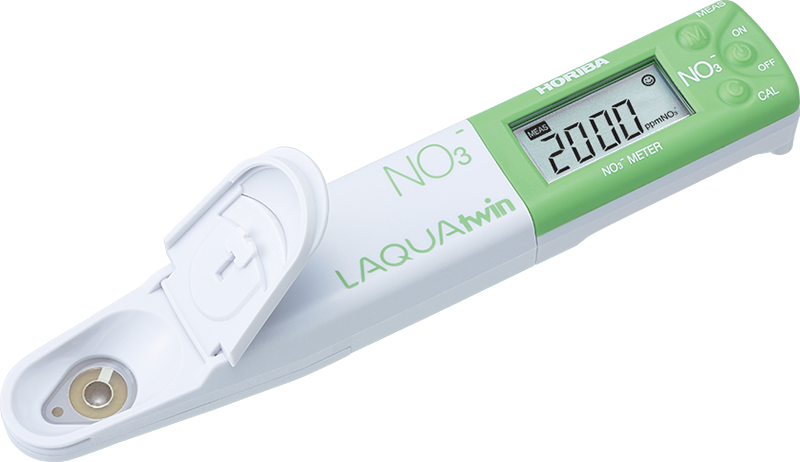

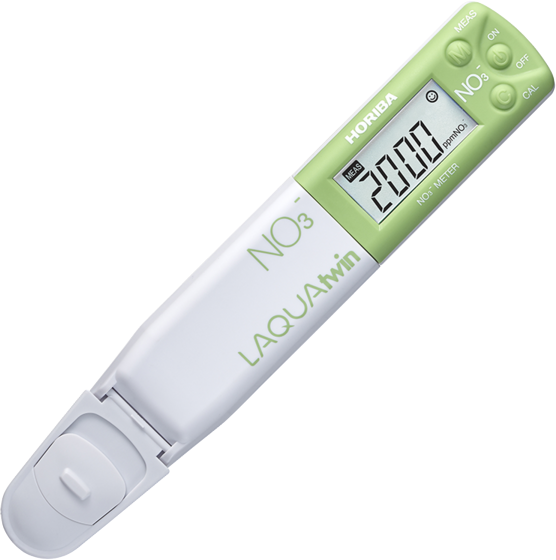

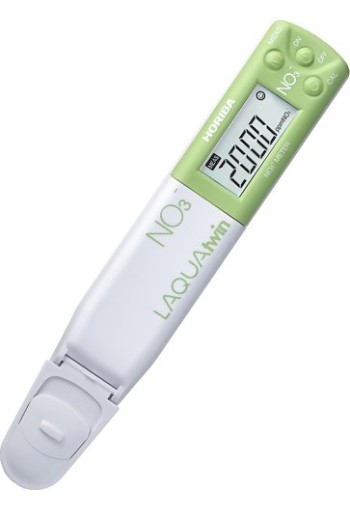

The Horiba LAQUAtwin Model NO3-11 Compact Nitrate Ion Meter is the only pocket meter that directly measures nitrate ion and nirate-nitrogen concentrations in 0.3ml sample (or 0.05ml sample with sampling sheet B). Unique sensor allows measurement of viscous liquids, solids, and even powder samples. No need for a beaker to calibrate your meter or measure a sample. Just place few drops of the standard or sample onto the Horiba LAQUAtwin Model NO3-11 flat sensor. This procedure saves you time and prevents wasting your precious sample.

Accurate measurement from only a single drop of sample onto HORIBA's original flat sensor. Horiba LAQUAtwin product line-up offers easy, quick, and reliable measurement of 8 parameters. Horiba brings new dimension to your water quality testing.

Features

Minimum sample volume: 0.3ml (0.05ml with sampling sheet B)
Up to 2 calibration points
Auto standard recognition
Changeable high and low calibration values
Multiplication compensation: 0.01 to 9.90
Temperature and mV display
Temperature calibration: 5 to 40.0 ºC
Auto hold / auto stable measurement
Auto power off: 30 mins.
Low battery indicator
IP67 Rating dust & waterproof
Replaceable sensor
400 Hours battery life: continuous use without backlight
Material: ABS epoxy
Display: custom (monochrome) digital LCD with backlight
Operating conditions: 5 to 40 ºC, 85% or less relative humidity
Warranty: 2 years - meter, 6 months - sensor
Packed in handy carrying case
Supplied with accessories (see specifications for more details)

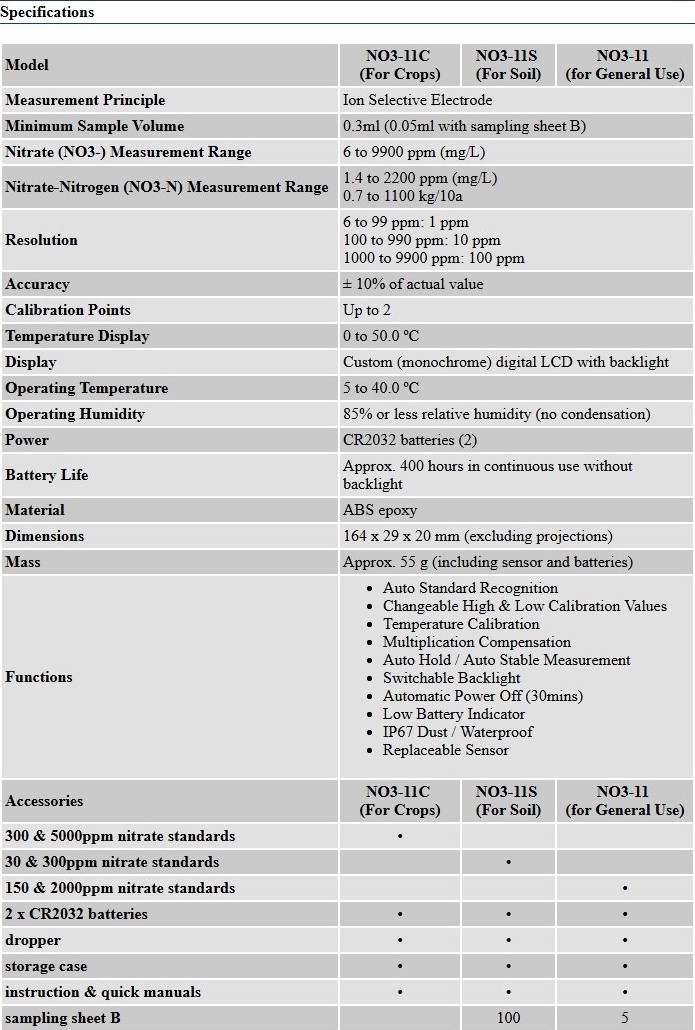

Specifications

Model	NO3-11C (for crops)	NO3-11S (for soil)	NO3-11 (for general use)
Measurement Principle	Ion Selective Electrode
Minimum Sample Volume	0.3ml (0.05ml with sampling sheet B)
Nitrate (NO3-) Measurement Range	6 to 9900 ppm (mg/L)
Nitrate-Nitrogen (NO3-N) Measurement Range	1.4 to 2200 ppm (mg/L) 0.7 to 1100 kg/10a
Resolution	6 to 99 ppm: 1 ppm 100 to 990 ppm: 10 ppm 1000 to 9900 ppm: 100 ppm
Accuracy	± 10% of actual value
Calibration Points	Up to 2
Temperature Display	0 to 50.0 ºC
Display	Custom (monochrome) digital LCD with backlight
Operating Temperature	5 to 40.0 ºC
Operating Humidity	85% or less relative humidity (no condensation)
Power	CR2032 batteries (2)
Battery Life	Approx. 400 hours in continuous use without backlight
Material	ABS epoxy
Dimensions	164 x 29 x 20 mm (excluding projections)
Mass	Approx. 55 g (including sensor and batteries)
Functions	Auto Standard Recognition Changeable High & Low Calibration Values Temperature Calibration Multiplication Compensation Auto Hold / Auto Stable Measurement Switchable Backlight Automatic Power Off (30mins) Low Battery Indicator IP67 Dust / Waterproof Replaceable Sensor
Accessories	NO3-11C (for crops)	NO3-11S (for soil)	NO3-11 (for general use)
300 & 5000ppm nitrate standards
30 & 300ppm nitrate standards
150 & 2000ppm nitrate standards
2 x CR2032 batteries
dropper
storage case
instruction & quick manuals
sampling sheet B		100	5
