Horiba LAQUAtwin ORP-11 Compact ORP Meter # 3200965260

See More Horiba LAQUAtwin Compact Meters

Horiba LAQUAtwin ORP-11 Compact ORP Meter # 3200965260

See More Horiba LAQUAtwin Compact Meters
Price:
$240.00
    warrenty

    Product Description
    Versatile Measurement
    Precision in Every Drop
    Wide Measurement Range

    The Horiba LAQUAtwin ORP-11 Compact Water Quality ORP Meter is unique compact meter integrates the electrode, display and sample container to enable simple, effective on-site testing by direct measurement from a single drop.


    line

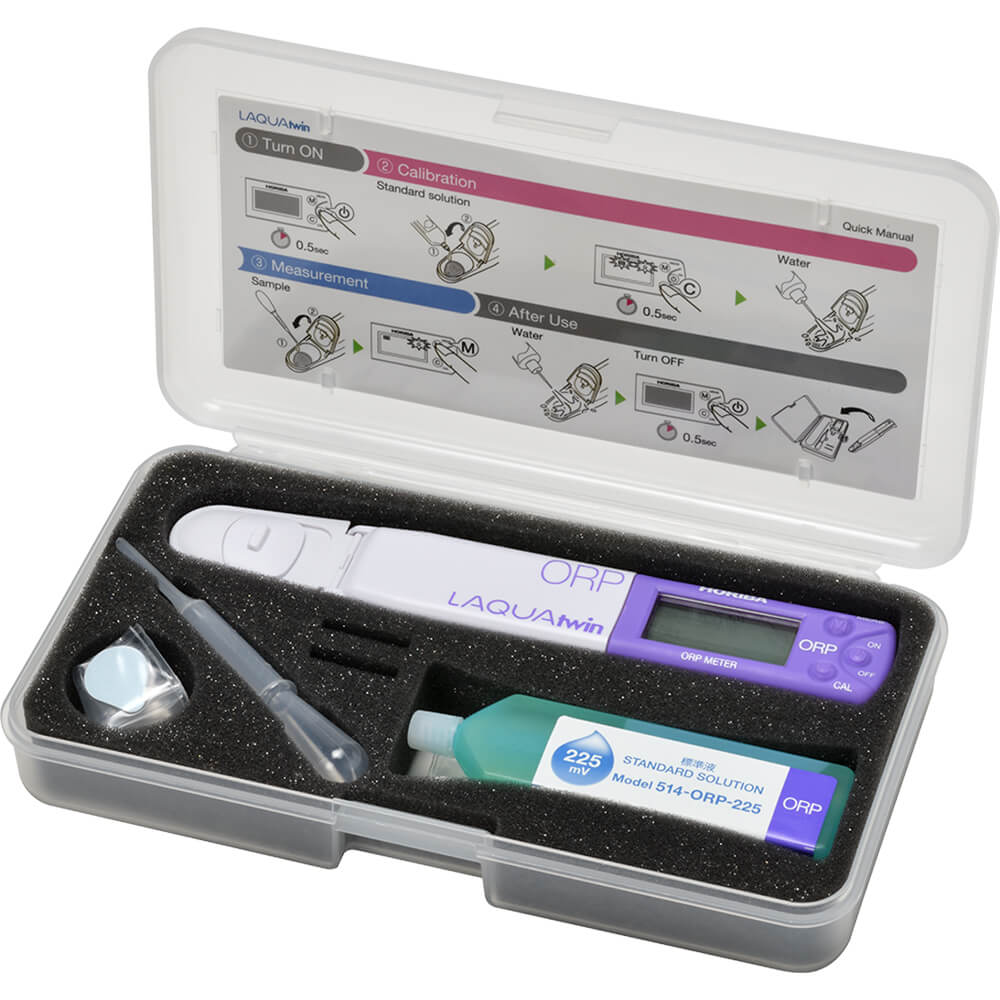

    Kit Contents
    line

    • Horiba LAQUAtwin ORP-11 Compact Water Quality ORP Meter
    • 225 mV ORP standard solution (14 ml)
    • Abrasive cotton swab for platinum disk polishing
    • Dropper
    • Batteries
    • 5 sampling sheets


    line
    Features
    line

    • Versatile Measurement: The only pocket-sized ORP meter that can measure not only ORP value, but also Eh value (voltage reading vs. the Standard Hydrogen Electrode or SHE)
    • Precision in Every Drop: The replaceable sensor, featuring a platinum disk, enables measurements in samples as little as 0.3 ml (or 0.05 ml with sampling sheet).
    • Wide Measurement Range: Covering -1000 mV to 1000 mV, the meter ensures accurate readings across a broad spectrum.
    • Easy One-Point Auto Calibration: The meter automatically recognizes and calibrates the 225 mV standard solution included in the kit. Customize calibration using other ORP standard solution.
    • Exceptional accuracy: With an accuracy of +/- 2mV, the meter delivers precise results every time.
    • Auto Stable & Auto Hold Measurement Modes: Assisting users record stable readings, the meter displays smiley indicator and can freeze the reading.
    • Temperature Compensation and Calibration: Displaying temperatures up to 50.0°C, the meter allows for temperature compensation as well as correction through its calibration function.
    • IP67 Rating: Waterproof and dustproof meter with digital LCD and backlit display


    line
    Specifications
    line

    Measurement principleORP electrode
    Minimum sample volume0.3 ml (0.05 ml with Sampling Sheet B)
    ORP range / resolution-1000 to 1000 mV / 1 mV
    Accuracy± 2 mV
    Maximum calibration points1
    Temperature display / resolution0 to 50.0 ⁰C / 0.1 ⁰C
    Functions

    ORP and Eh measurements
    Automatic standard recognition
    Auto / Custom calibration value
    Temperature compensation
    Temperature calibration
    Auto hold / Auto stable measurement modes
    Automatic power off (30 mins.)
    Low battery indicator
    IP67 water / dustproof
    Replaceable sensor

    DisplayCustom (monochrome) digital LCD with backlight
    Operating temperature / humidity5 to 40.0 ⁰C / ≤ 85% in relative humidity (no condensation)
    Battery lifeApprox. 400 hrs. continuous use without backlight
    MaterialsABS epoxy body / platinum disk sensor
    Dimensions164 x 29 x 20 mm (excluding projections)
    MassApprox. 55g (including sensor and batteries)


    lineRelated Productsline

    Horiba LAQUAtwin S060-ORP ORP Sensor

    • Replacement sensor for Horiba LAQUAtwin ORP-11 Compact Water Quality pH Meter


    line
    Downloads
    line

    Horiba LAQUAtwin ORP-11 Compact Water Quality pH Meter - Data Shee
    Horiba LAQUAtwin ORP-11 Compact Water Quality pH Meter - Instruction Manual
