Versatile Measurement
Precision in Every Drop
Wide Measurement Range

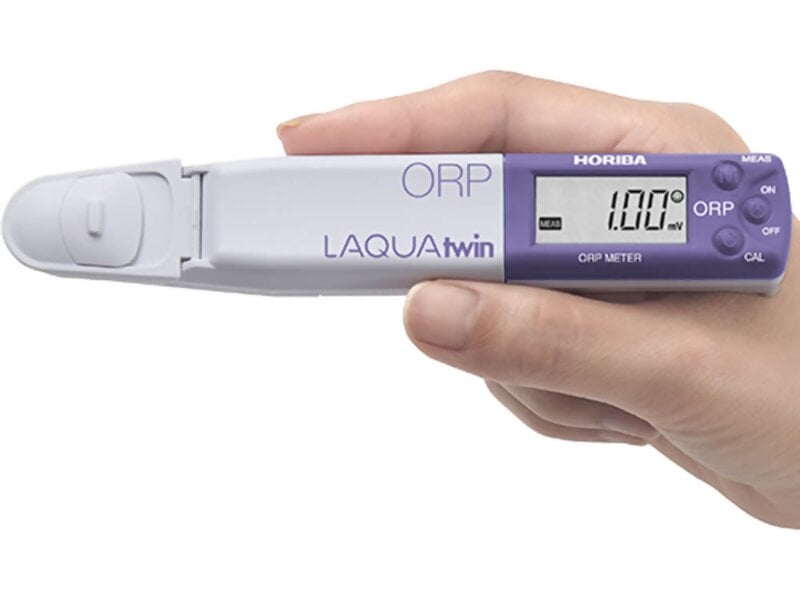

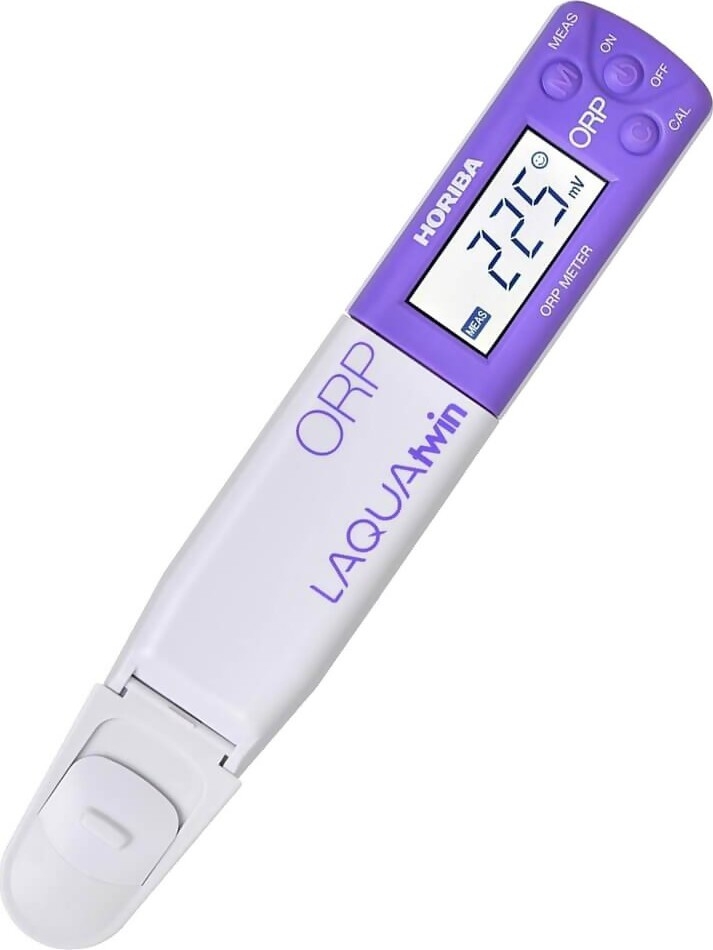

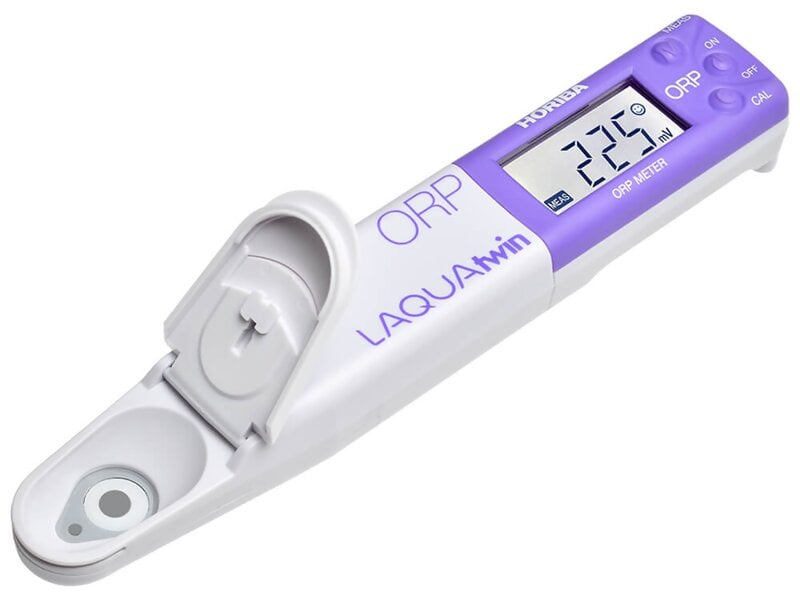

The Horiba LAQUAtwin ORP-11 Compact Water Quality ORP Meter is unique compact meter integrates the electrode, display and sample container to enable simple, effective on-site testing by direct measurement from a single drop.
Kit Contents
- Horiba LAQUAtwin ORP-11 Compact Water Quality ORP Meter
- 225 mV ORP standard solution (14 ml)
- Abrasive cotton swab for platinum disk polishing
- Dropper
- Batteries
- 5 sampling sheets
Features
- Versatile Measurement: The only pocket-sized ORP meter that can measure not only ORP value, but also Eh value (voltage reading vs. the Standard Hydrogen Electrode or SHE)
- Precision in Every Drop: The replaceable sensor, featuring a platinum disk, enables measurements in samples as little as 0.3 ml (or 0.05 ml with sampling sheet).
- Wide Measurement Range: Covering -1000 mV to 1000 mV, the meter ensures accurate readings across a broad spectrum.
- Easy One-Point Auto Calibration: The meter automatically recognizes and calibrates the 225 mV standard solution included in the kit. Customize calibration using other ORP standard solution.
- Exceptional accuracy: With an accuracy of +/- 2mV, the meter delivers precise results every time.
- Auto Stable & Auto Hold Measurement Modes: Assisting users record stable readings, the meter displays smiley indicator and can freeze the reading.
- Temperature Compensation and Calibration: Displaying temperatures up to 50.0°C, the meter allows for temperature compensation as well as correction through its calibration function.
- IP67 Rating: Waterproof and dustproof meter with digital LCD and backlit display
Specifications
| Measurement principle | ORP electrode |
| Minimum sample volume | 0.3 ml (0.05 ml with Sampling Sheet B) |
| ORP range / resolution | -1000 to 1000 mV / 1 mV |
| Accuracy | ± 2 mV |
| Maximum calibration points | 1 |
| Temperature display / resolution | 0 to 50.0 ⁰C / 0.1 ⁰C |
| Functions | ORP and Eh measurements
Automatic standard recognition
Auto / Custom calibration value
Temperature compensation
Temperature calibration
Auto hold / Auto stable measurement modes
Automatic power off (30 mins.)
Low battery indicator
IP67 water / dustproof
Replaceable sensor |
| Display | Custom (monochrome) digital LCD with backlight |
| Operating temperature / humidity | 5 to 40.0 ⁰C / ≤ 85% in relative humidity (no condensation) |
| Battery life | Approx. 400 hrs. continuous use without backlight |
| Materials | ABS epoxy body / platinum disk sensor |
| Dimensions | 164 x 29 x 20 mm (excluding projections) |
| Mass | Approx. 55g (including sensor and batteries) |
