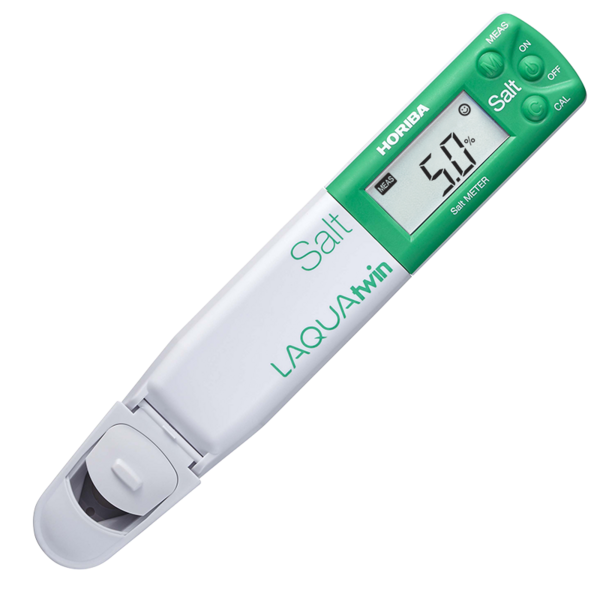

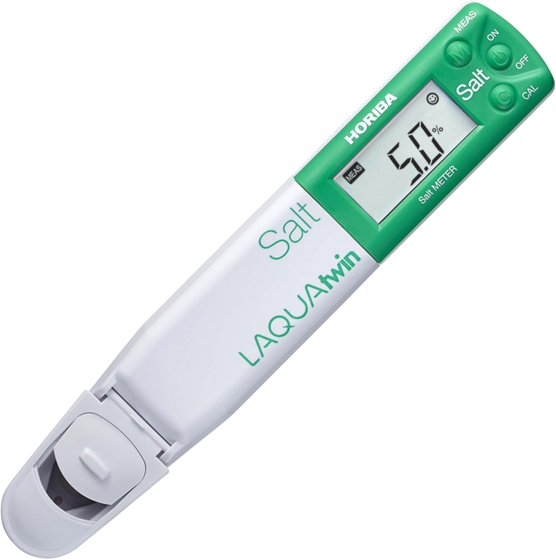

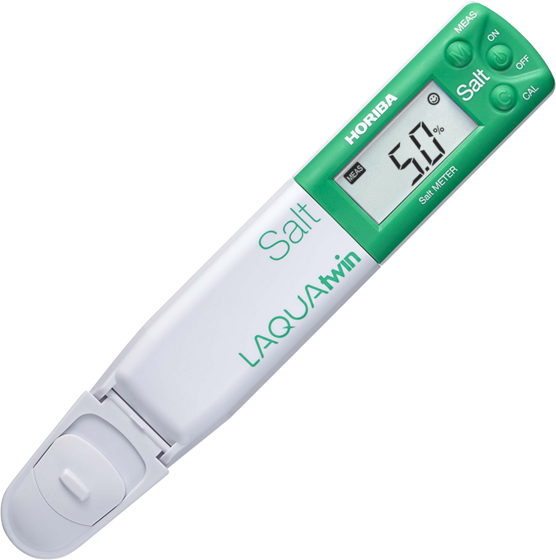

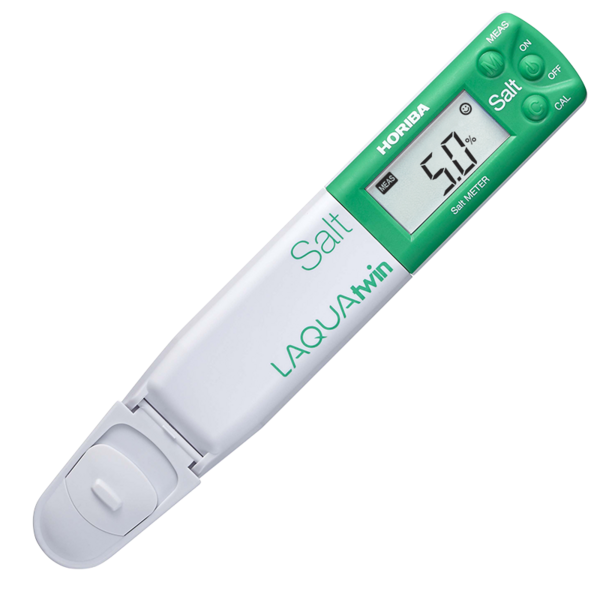

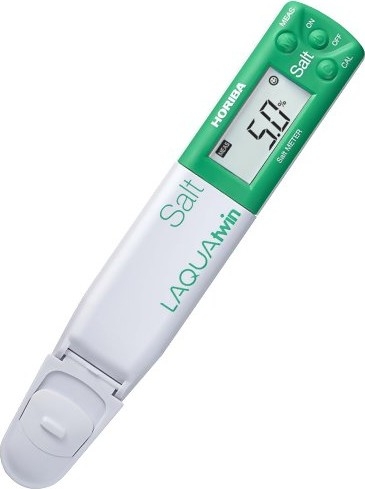

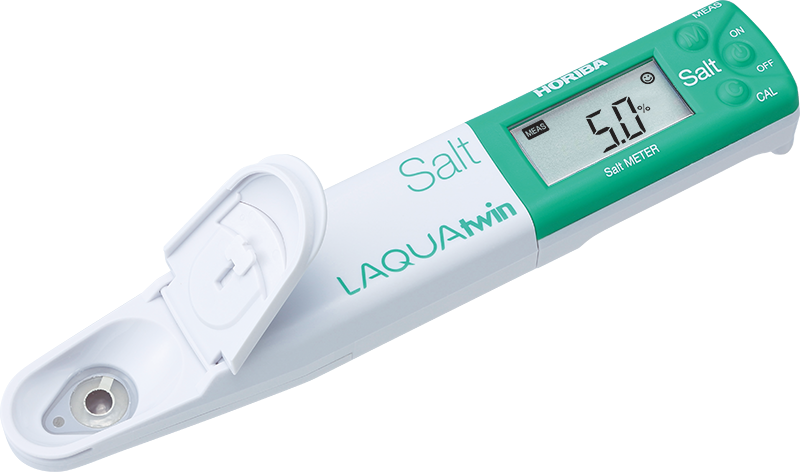

Horiba LAQUAtwin Salt-22 NaCl Compact Ion Meter, # 3200689158

---

Minimum sample volume: 0.3ml (0.05ml with sampling sheet B)

---

Salinity, mV, and temperature display

---

Up to 2 calibration points

---

Auto calibration

---

Auto standard recognition: 0.5 & 5.0% NaCl (default)

---

The Horiba LAQUAtwin Salt-22 NaCI Compact Ion Meter is the only pocket meter that directly measures sodium ion concentration in 0.3ml sample (or 0.05ml sample with sampling sheet B) and converts it into salinity or NaCl salt concentration.No need for a beaker to calibrate the meter or measure a sample. Just place few drops of the standard or sample onto the Horiba LAQUAtwin Salt-22 sensor. This procedure saves you time and prevents wasting your precious sample.

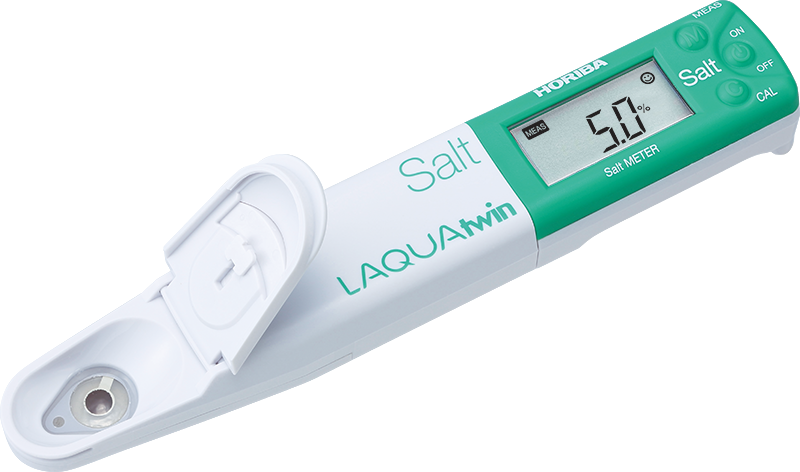

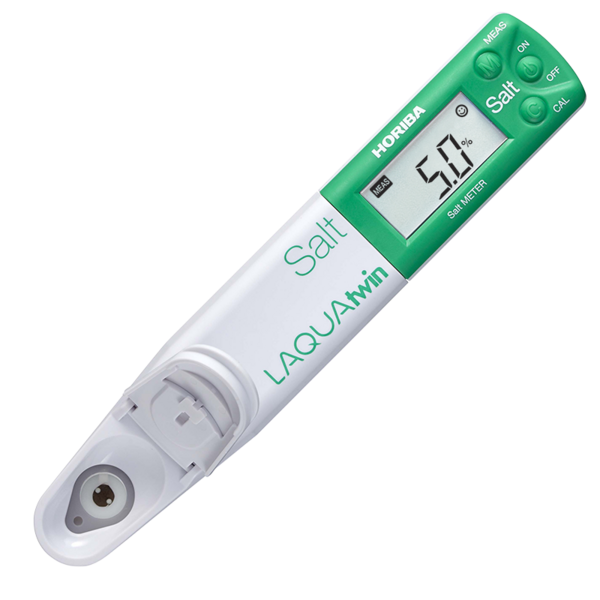

HORIBA's unique compact meter integrates the electrode, display and sample container to enable simple, effective on-site testing by direct measurement from a single drop.

Features

• Minimum sample volume: 0.3ml (0.05ml with sampling sheet B)
• Salinity, mV, and temperature display
• Up to 2 calibration points
• Auto calibration
• Auto standard recognition: 0.5 & 5.0% NaCl (default)
• Changeable high and low calibration values
• Temperature calibration: 5 to 40.0 ºC
• Auto stable / auto hold measurement
• Auto power off: 30 mins.
• Low battery indicator
• IP67 Rating dust & waterproof
• Replaceable sensor
• 400 Hours battery life: continuous use without backlight
• Material: ABS epoxy
• Display: custom (monochrome) digital LCD with backlight
• Operating conditions: 5 to 40 ºC, 85% or less relative humidity
• Warranty: 2 years - meter; 6 months - sensor
• Packed in handy carrying case
• Supplied with 0.5% & 5.0% NaCl standards (14ml each), 5 x sampling sheets B, 2 x CR2032 batteries, dropper, instruction and quick manuals

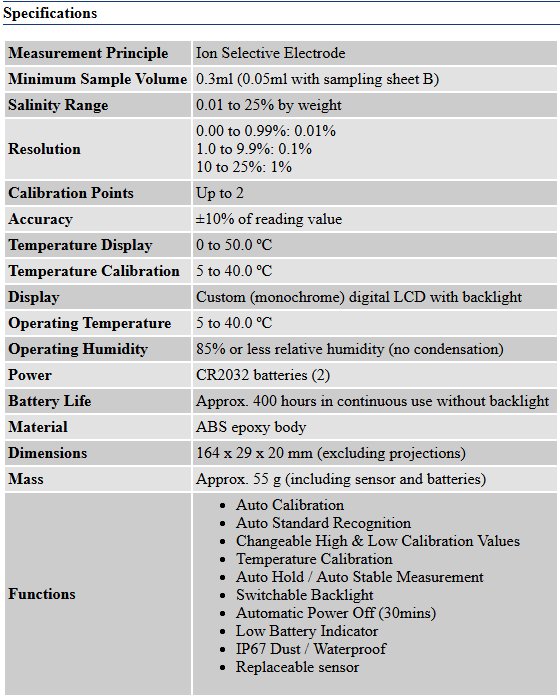

Specifications

Measurement Principle	Ion Selective Electrode
Minimum Sample Volume	0.3ml (0.05ml with sampling sheet B)
Salinity Range	0.01 to 25% by weight
Resolution	0.00 to 0.99%: 0.01% 1.0 to 9.9%: 0.1% 10 to 25%: 1%
Calibration Points	Up to 2
Accuracy	±10% of reading value
Temperature Display	0 to 50.0 ºC
Temperature Calibration	5 to 40.0 ºC
Display	Custom (monochrome) digital LCD with backlight
Operating Temperature	5 to 40.0 ºC
Operating Humidity	85% or less relative humidity (no condensation)
Power	CR2032 batteries (2)
Battery Life	Approx. 400 hours in continuous use without backlight
Material	ABS epoxy body
Dimensions	164 x 29 x 20 mm (excluding projections)
Mass	Approx. 55 g (including sensor and batteries)
Functions	Auto Calibration Auto Standard Recognition Changeable High & Low Calibration Values Temperature Calibration Auto Hold / Auto Stable Measurement Switchable Backlight Automatic Power Off (30mins) Low Battery Indicator IP67 Dust / Waterproof Replaceable sensor

Related Products

Salt Sensor S021 Replacement sensor for LAQUAtwin B-721 and Salt-22

0.5% NaCl Standard Solution 514-05 / Y021L For Cardy C-121 and LAQUAtwin B-721, Salt-11, and Salt-22

5.0% NaCl Standard Solution 514-50 / Y021H For LAQUAtwin EC-11, EC-22, EC-33, Salt-11
