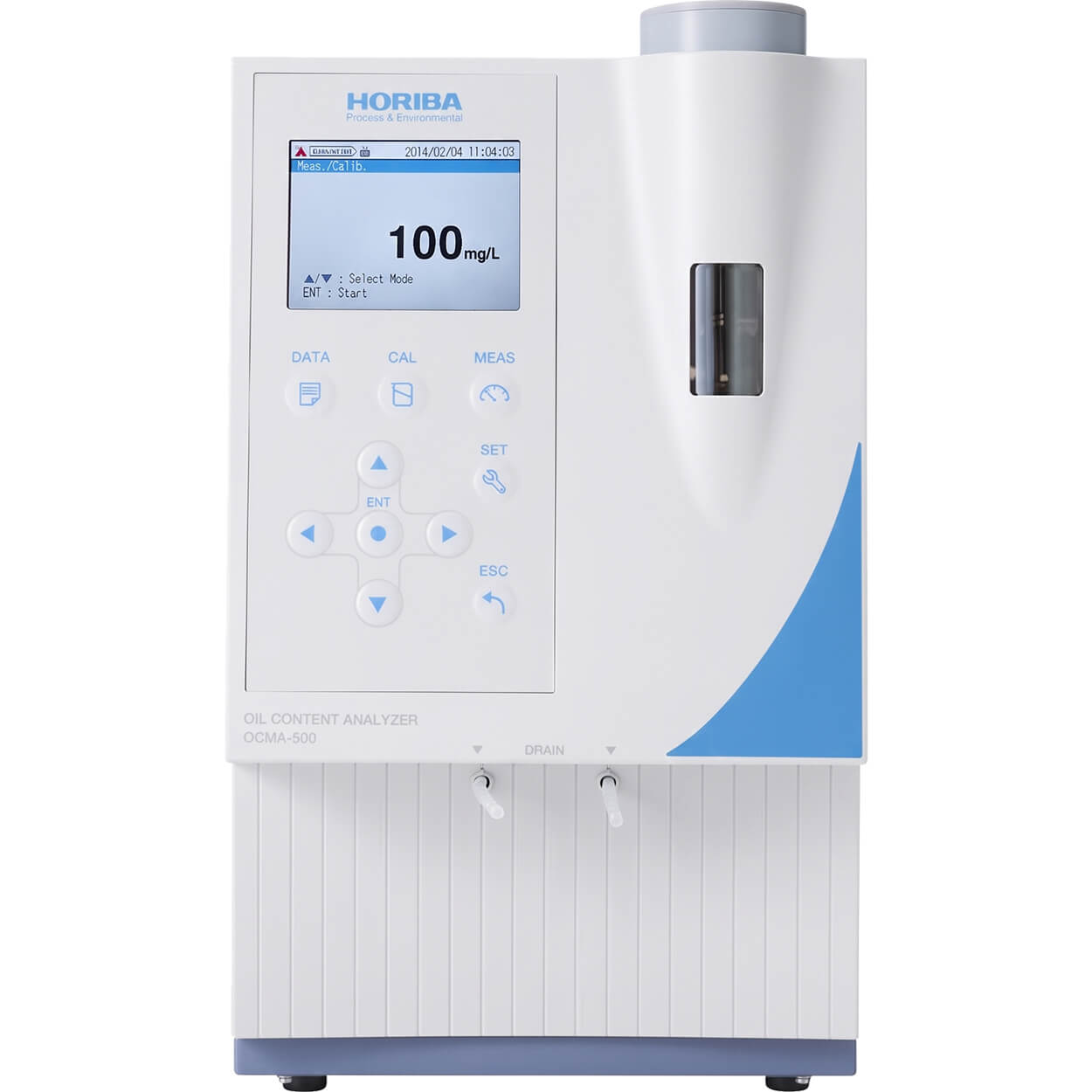

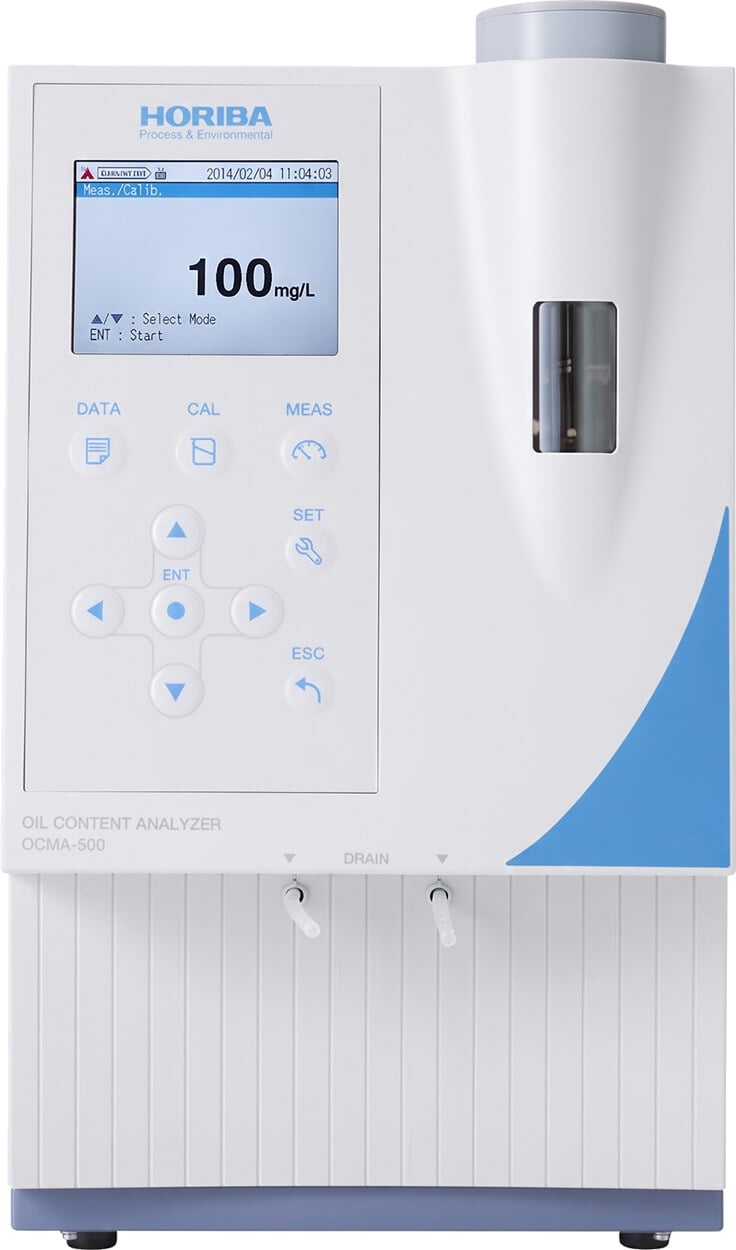

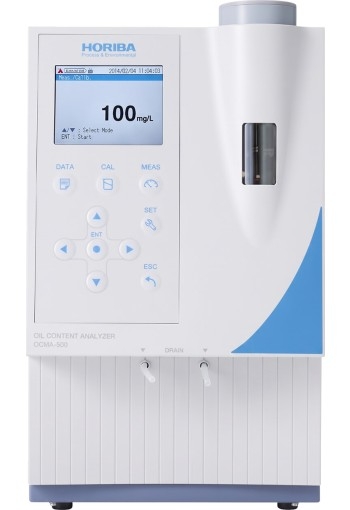

Measurement principle

Solvent extraction, NDIR
analysis (Infrared spectroscopy)

Measurement range

0mg/l ~ 200mg/l dynamic ranging

Resolution

0 to 99.9 mg/L; 0.1 mg/L
100 to 200 mg/L; 1 mg/L

Repeatability

0 to 9.9 mg/L; ± 0.2 mg/L ± 1 digit
10.0 to 99.9 mg/L; ± 2 mg/L ± 1 digit
100 to 200 mg/L; ± 4 mg/L ± 1 digit
*For standard liquids

Display Method

3.5 inches, 320×240 dots
Backlight Colour graphic LCD

Calibration Method

Zero, Span Calibration

Extraction Solvent

S-316 solvent

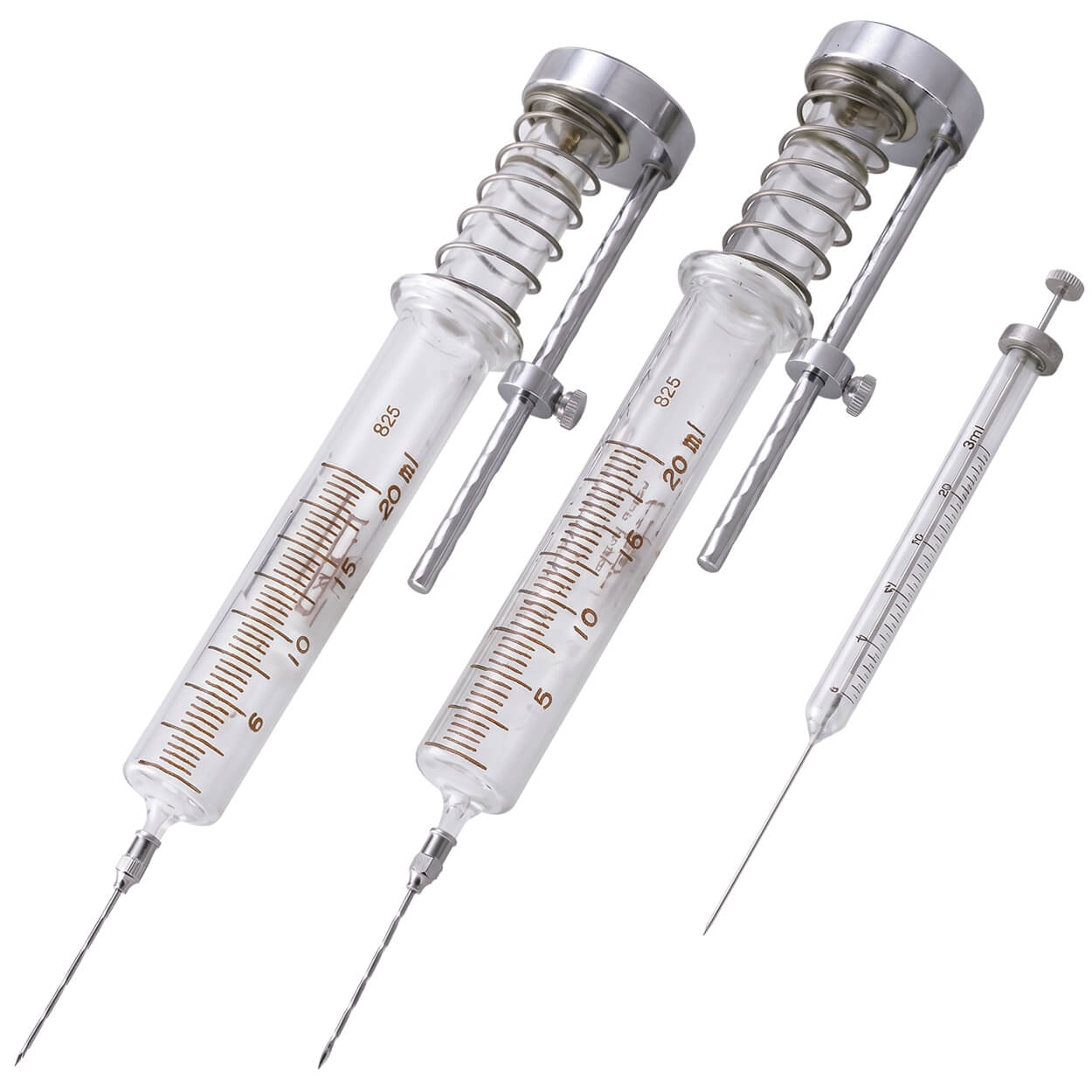

Amount of test sample required

Sample water : Solvent = 2 : 1

Amount of extraction solvent required

8 mL

Extraction Method

Built-in extractor

Ambient Operating Temperature

0 to 40 ºC (non condensation)

Power supply

AC 100V to 240V ±10%, 50/60 Hz

Power consumption

AC 100V:Approx.60VA
AC 240V: Approx.90VA

External Dimensions

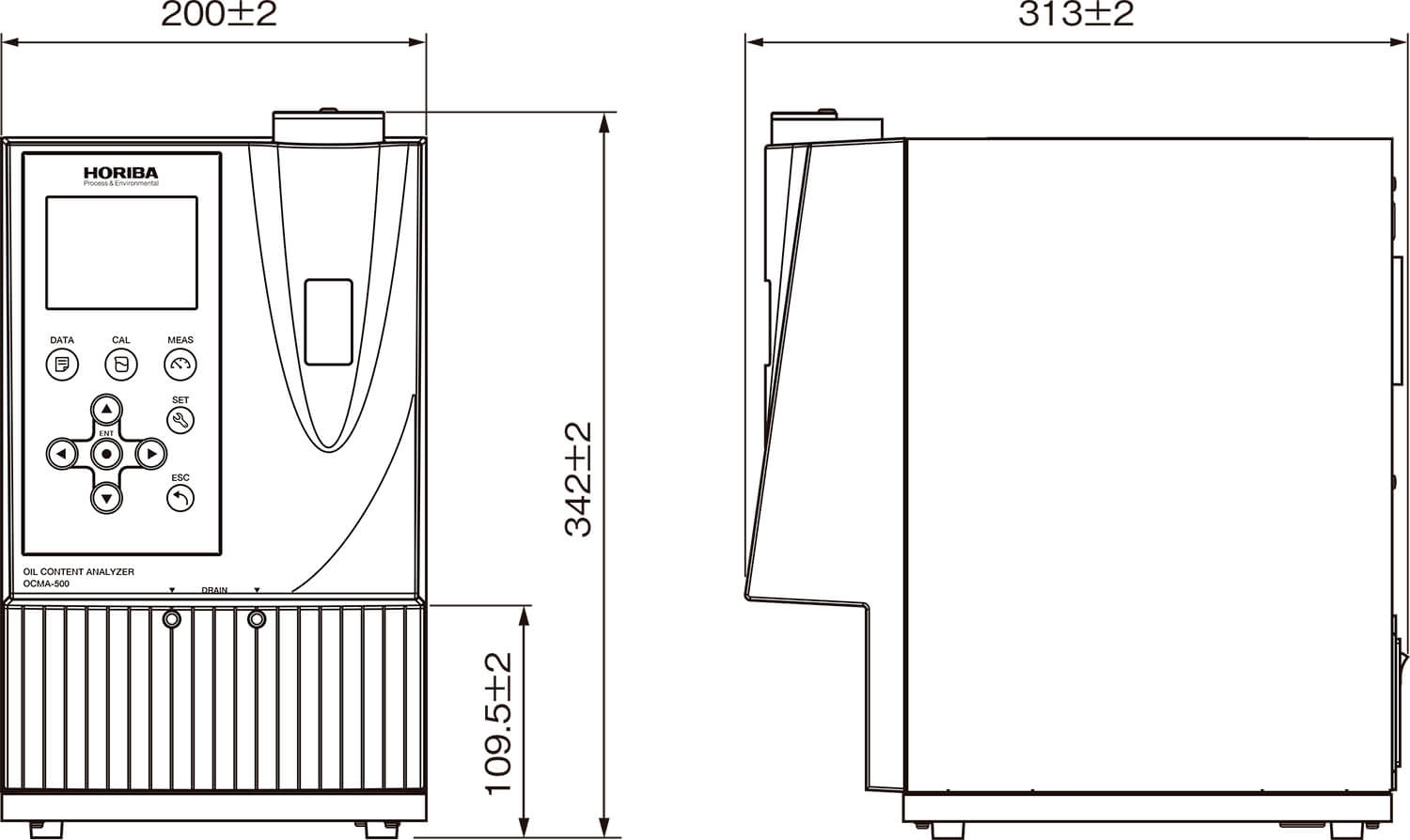

200(W)×313(D)×342(H) mm

Mass

Approx. 7 kg

External Output

Output to an USB memory stick

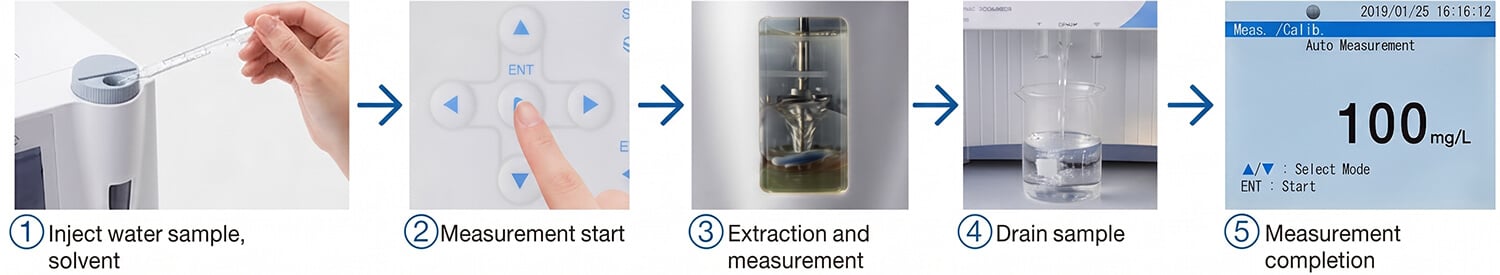

Functions

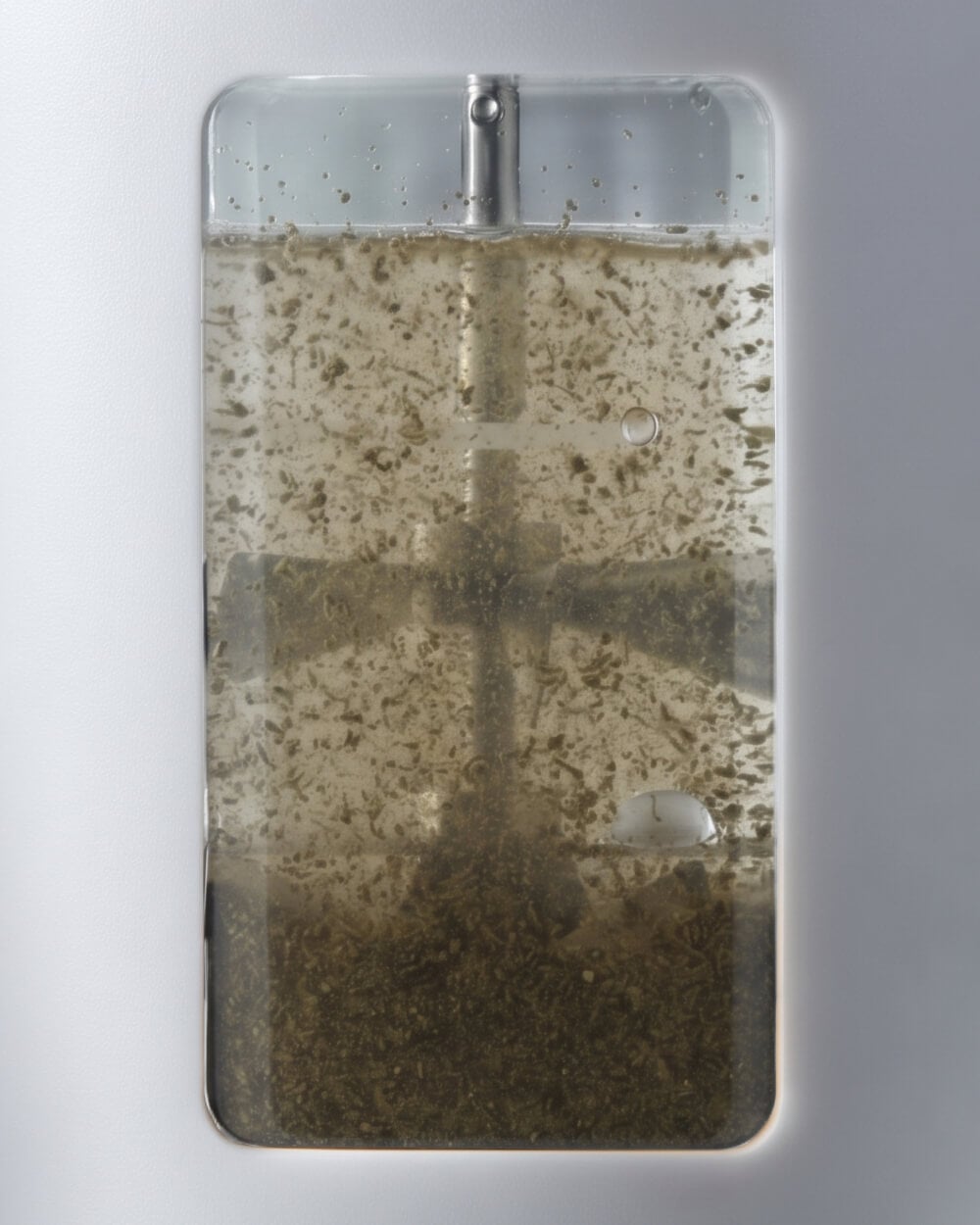

• Backlit extraction tank (patent applied for)

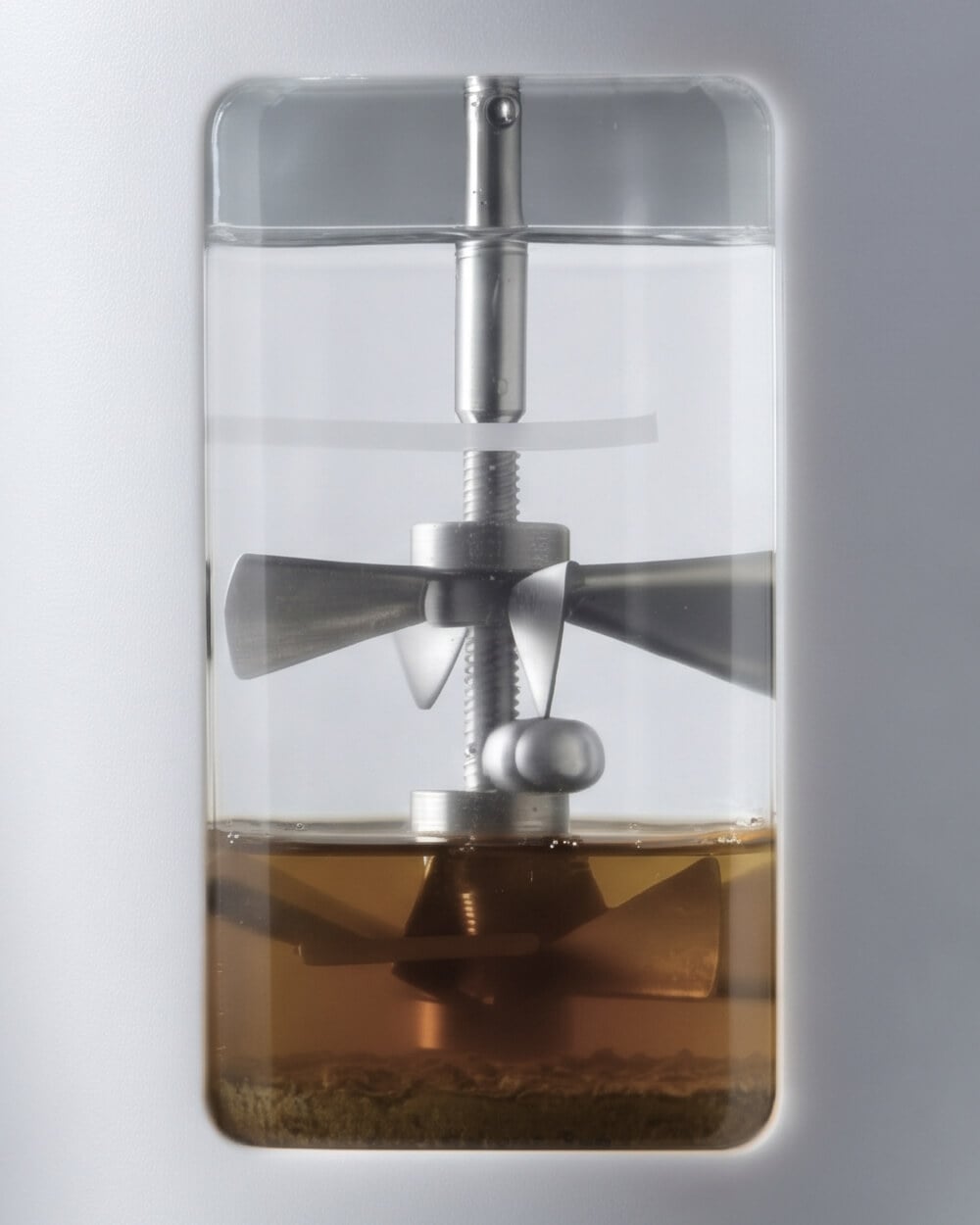

  The extraction tank is equipped with LEDs. Illuminating the tank makes it easy to check the phase separation between sample and solvent

Factory drainage

• For monitoring final discharge water

Ballast water, Bilge

• For monitoring discharge from ships

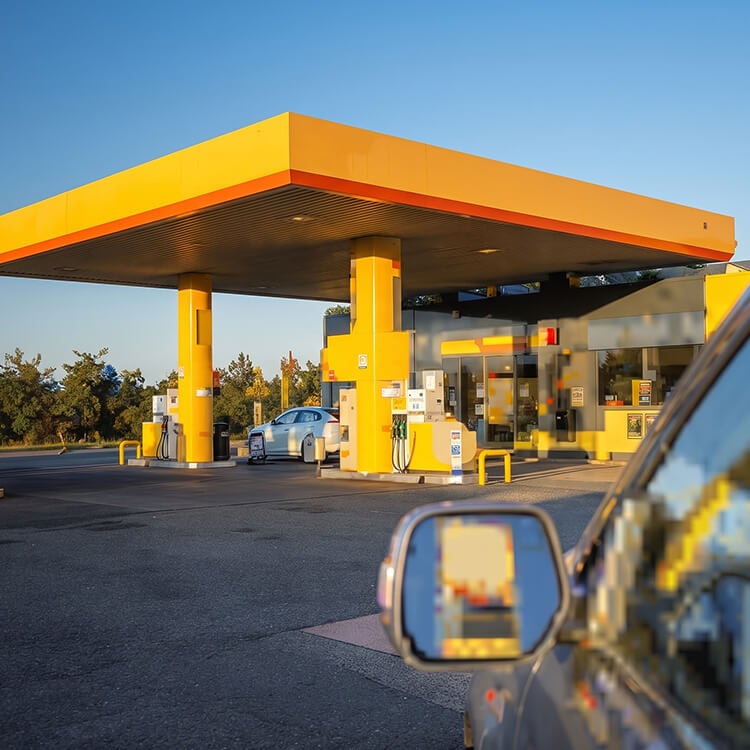

Vehicle maintenance site and gas station

• For monitoring water quality in surrounding areas

Others

• Water quality survey based on environmental standard.
• For monitoring final discharge from petroleum refinery plant.
• For oil dispersion research at time of an accident.

Horiba S-316 Extraction Solvent Oil - 5200100690

This solvent is required to:

• Prepare the calibration solution to calibrate the infrared Spectrometer OCMA: pure solvent (zero Calibration), solvent + oil (span calibration)
• Extract the oil and grease from the sample
• Perform the measurement by Infrared Abortion (NDIR)
• Clean the measurement cel

One bottle of S-316 allows performing up to 40 measurements* on a previously calibrated OCMA-550 analyzer

*Base on 20 ml per measurement (15 ml for extraction and 5ml for cell cleaning)
